Drive Axles, Bearings and Joints: Specifications



Rear Drive Axle/Differential

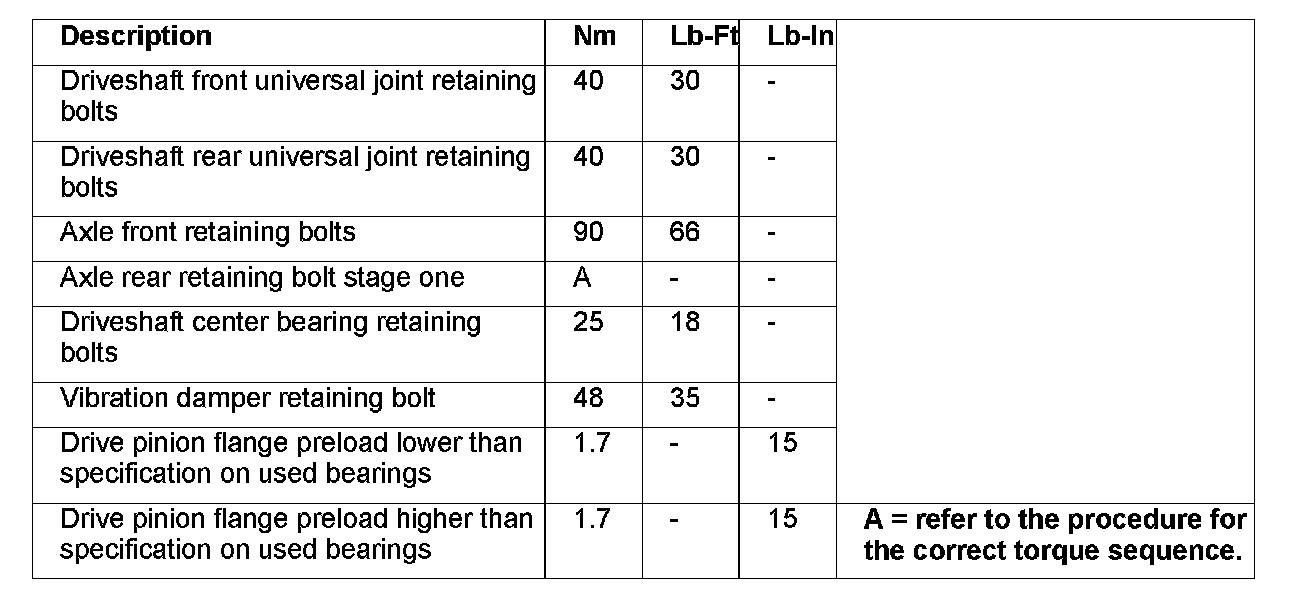

Torque Specifications


Front Drive Halfshafts




Torque Specifications


Rear Drive Halfshafts




Torque Specifications
