Ignition Switch Lock Cylinder: Service and Repair

Ignition Switch Lock Cylinder

Removal

Vehicles with ignition switch lock cylinder interlock cable
1. Remove the transmission selector lever.





2. Detach the ignition switch lock cylinder interlock cable.

All vehicles





3. Remove the instrument panel lower trim.





4. Detach the steering column lower shroud.





5. Remove the steering column lower shroud.





6. CAUTION: If excessive force is used to remove the ignition switch lock cylinder shroud damage may occur to the instrument panel.

Remove the ignition switch lock cylinder shroud.





7. CAUTION: If excessive force is used to remove the ignition switch lock cylinder housing damage may occur to the instrument panel.

Detach the ignition switch lock cylinder housing.

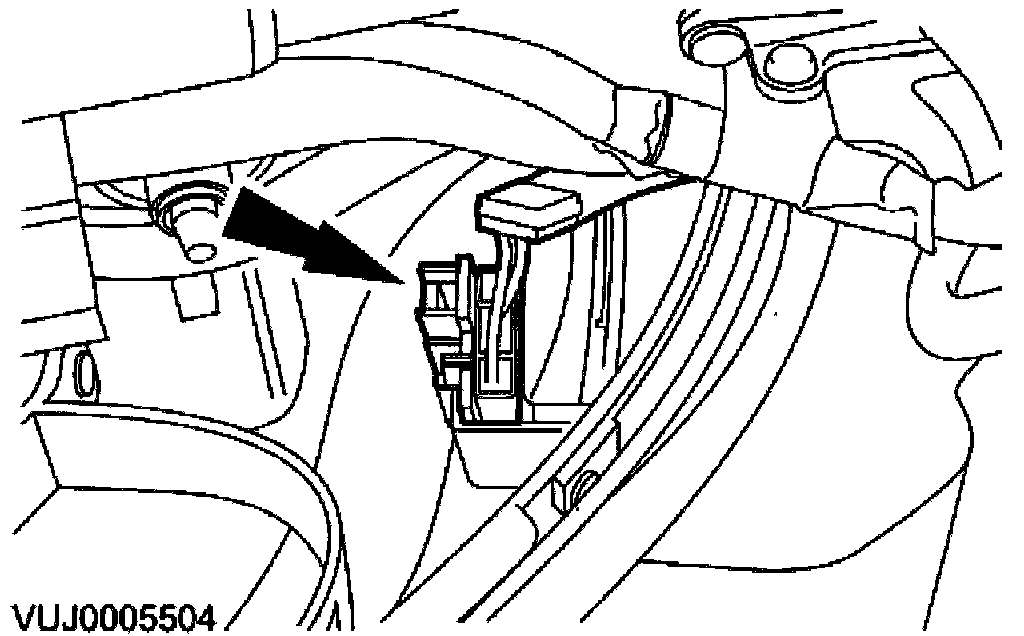

8. Disconnect the electrical connector.

Vehicles with ignition switch lock cylinder interlock cable

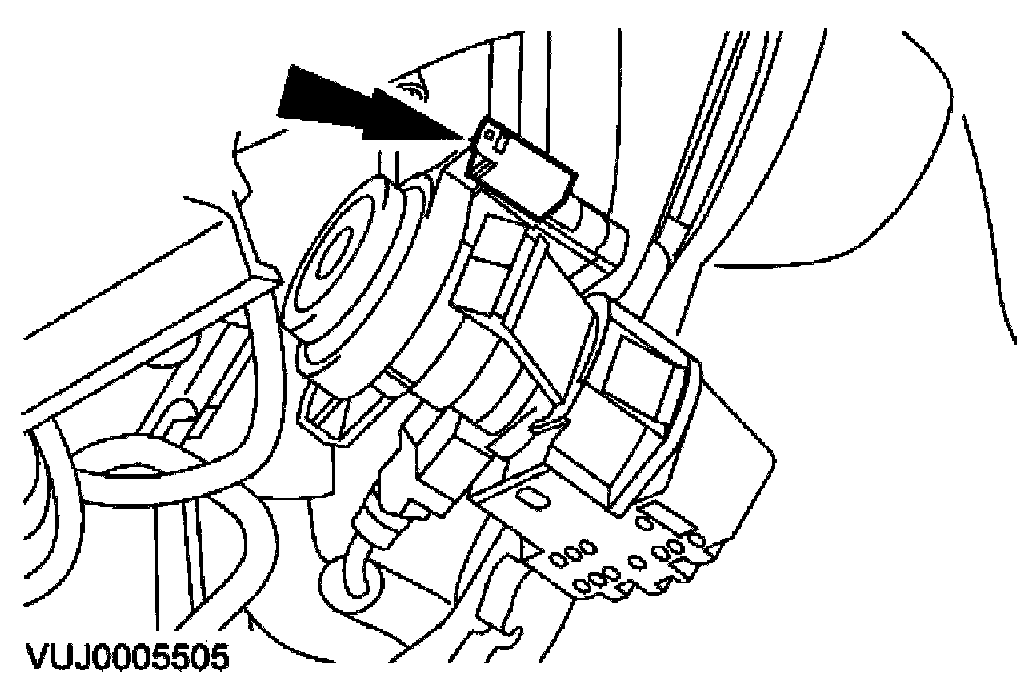

9. CAUTION: Make sure the ignition switch lock cylinder interlock cable is not crimped.

Remove the ignition switch lock cylinder housing. . Disconnect the electrical connector.

All vehicles





10. Remove the ignition switch lock cylinder housing.
^ Disconnect the electrical connector.

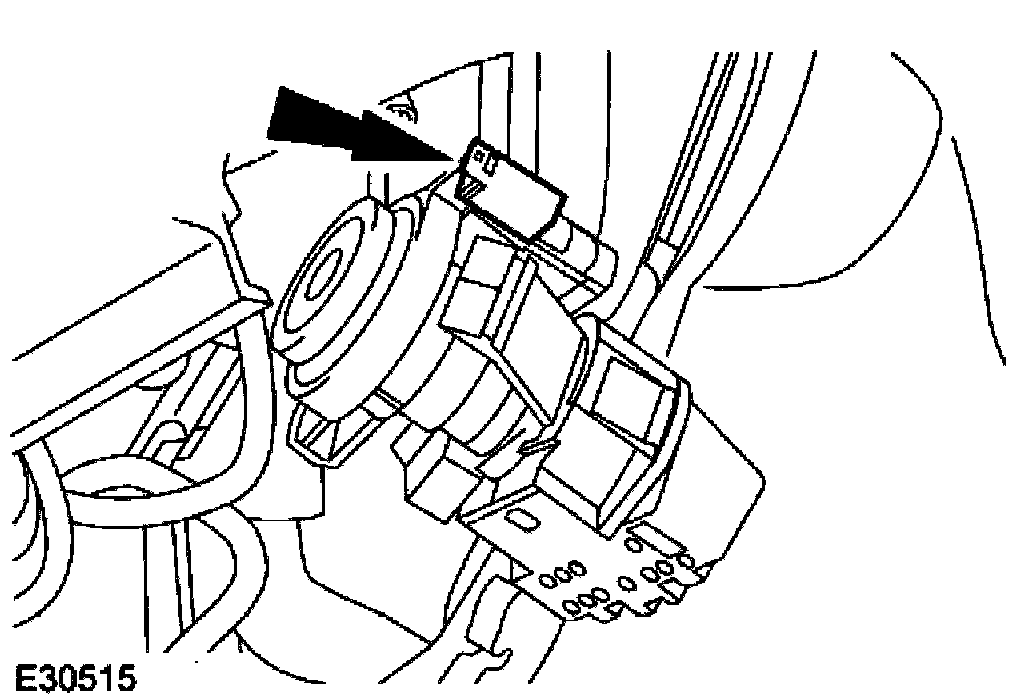

11. Remove the ignition switch lock cylinder.
1. Turn ignition key to position one.
2. Release the retaining tang.
3. Remove the ignition switch lock cylinder.

Installation

Vehicles with ignition switch lock cylinder interlock cable





1. CAUTION: Make sure the ignition switch lock cylinder interlock cable is not crimped.

Install the ignition switch lock cylinder housing.
^ Connect the electrical connector.

All vehicles





2. Install the ignition switch lock cylinder housing.
^ Connect the electrical connector.





3. Connect the electrical connector.





4. CAUTION: If excessive force is used to attach the ignition switch lock cylinder housing damage may occur to the instrument panel.

Attach the ignition switch lock cylinder housing.





5. Install the ignition switch lock cylinder shroud.





6. Install the ignition switch lock cylinder.
1. Turn ignition key to position one.
2. Install the ignition switch lock cylinder.





7. Install the steering column lower shroud.





8. Attach the steering column lower shroud.
^ Tighten to 3 Nm.





9. Install the instrument panel lower trim.

Vehicles with ignition switch lock cylinder interlock cable





10. Attach the ignition switch lock cylinder interlock cable.
11. Install the transmission selector lever.
