MIDTRONICS TESTING

(Suitable for 12V batteries only)







NOTE: The battery surface charge must be removed before this test. Open Circuit Voltage Test

TEST PROCEDURE
- Ensure the battery terminals/connectors are clean
- Connect red clip to positive (+) battery terminal
- Connect black clip to negative (-) battery terminal
- Rock clips back & fourth to ensure a good connection to the battery

NOTE: DO NOT connect the tester to any other circuit or chassis point

Step 1

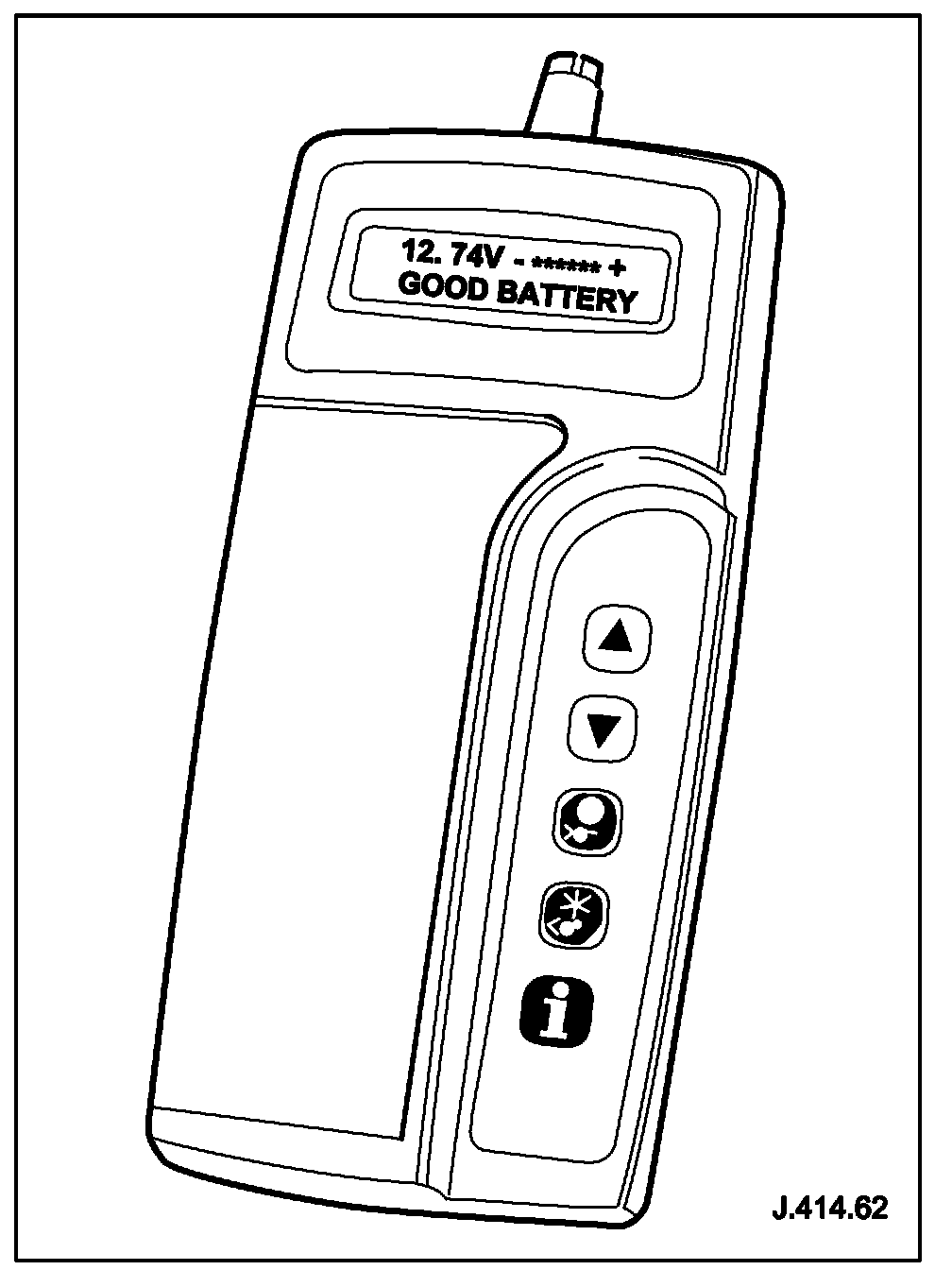

Use the "Arrow" buttons to scroll to the battery's labelled CCA rating.

Step 2
Press the "Test" button that corresponds to the correct battery temperature. i.e. if the temperature is above 0degrees C press the "Sun" button. If the battery temperature is below 0 degrees C press the "Ice Crystal" button. Carry out action, based on tester results. (see table below)

Step 3
Press the "Information" button to view the test code.

Step 4
- Enter the readings obtained on to the battery report form. Battery Report Form (Diagnosis)

Tester Results Actions
GOOD BATTERY Return to service.
GOOD - RECHARGE Fully charge the battery & return to service.
CHARGE & RETEST Fully charge the battery. Before re-testing remove surface charge! If this result remains after surface charge removal - replace the battery.
REPLACE BATTERY Ensure surface charge was removed, if so,
or disconnect the battery from the vehicle & retest. If this
BAD CELL BATTERY result remains after surface charge removal - replace the battery. *Warning Do not charge.*
UNABLE TO TEST Disconnect the battery from the vehicle & retest.

Press the! "Information" button and carefully note the 6 digit "test code" on the battery, job card & the battery report form. The battery tester will always generate a "test code" on completion of every test.
