Overall Specifications

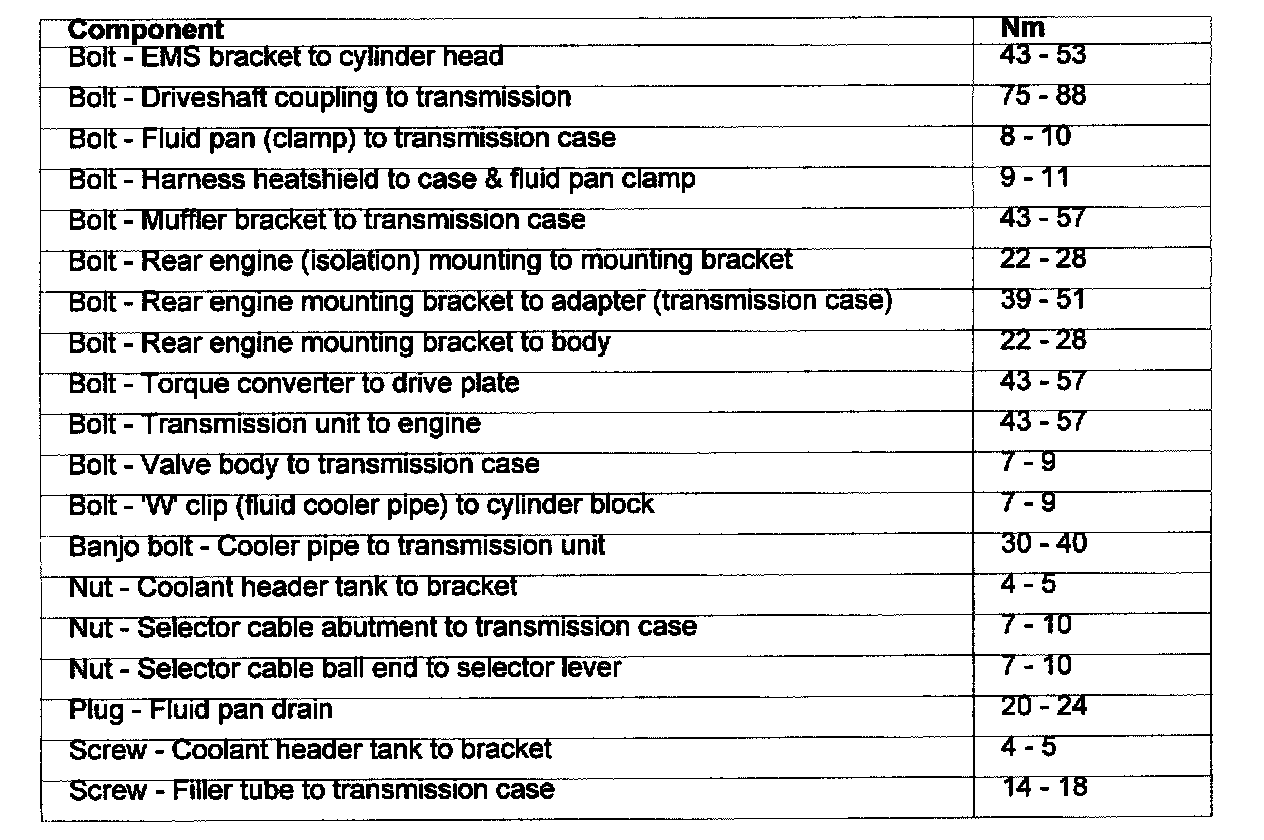

Torques - Automatic Transmission (Supercharged Vehicles)





Internal Gear Ratios - Automatic Transmission (Supercharged Vehicles)
