Camshaft Bearing
Camshaft Bearing

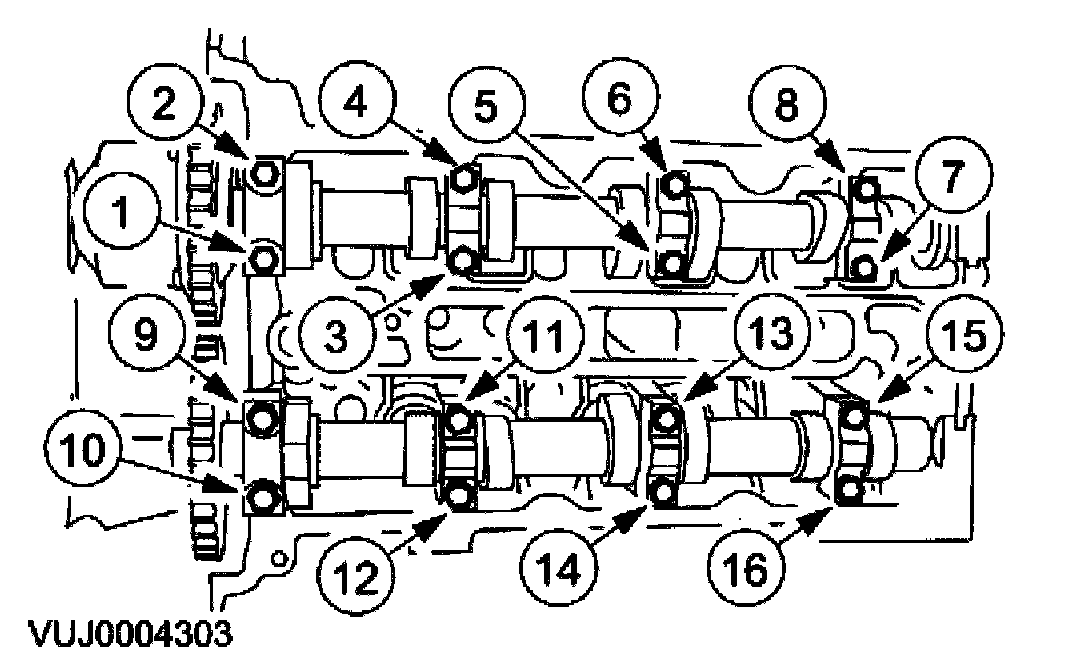

Install the
camshaft bearing
cap retaining bolts evenly.
Camshaft bearing
caps retaining bolts
10 Nm (7 ft. lbs.)
