Mechanical Specifications
>>
Engine
>>
Oil Pan, Engine
Oil Pan, Engine
NOTE:
Tighten all
oil pan
retaining bolts with in six minutes of applying the sealer.
Install the
oil pan
rear retaining bolts.

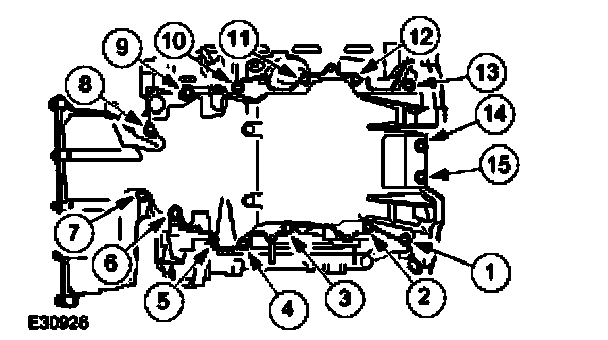

Complete the tightening sequence
25 Nm.
