Navigation Display: Service and Repair

86.62.07

Navigation System Display Module

Removal
1. Remove the instrument panel console.

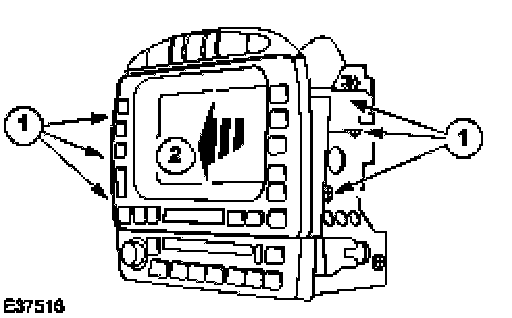

2. Remove the navigation system display module.
- Remove the navigation system display module retaining bolts.
- Remove the navigation system display module.

Installation
1. To install, reverse the removal procedure.
