Electronic Brake Control Module: Locations

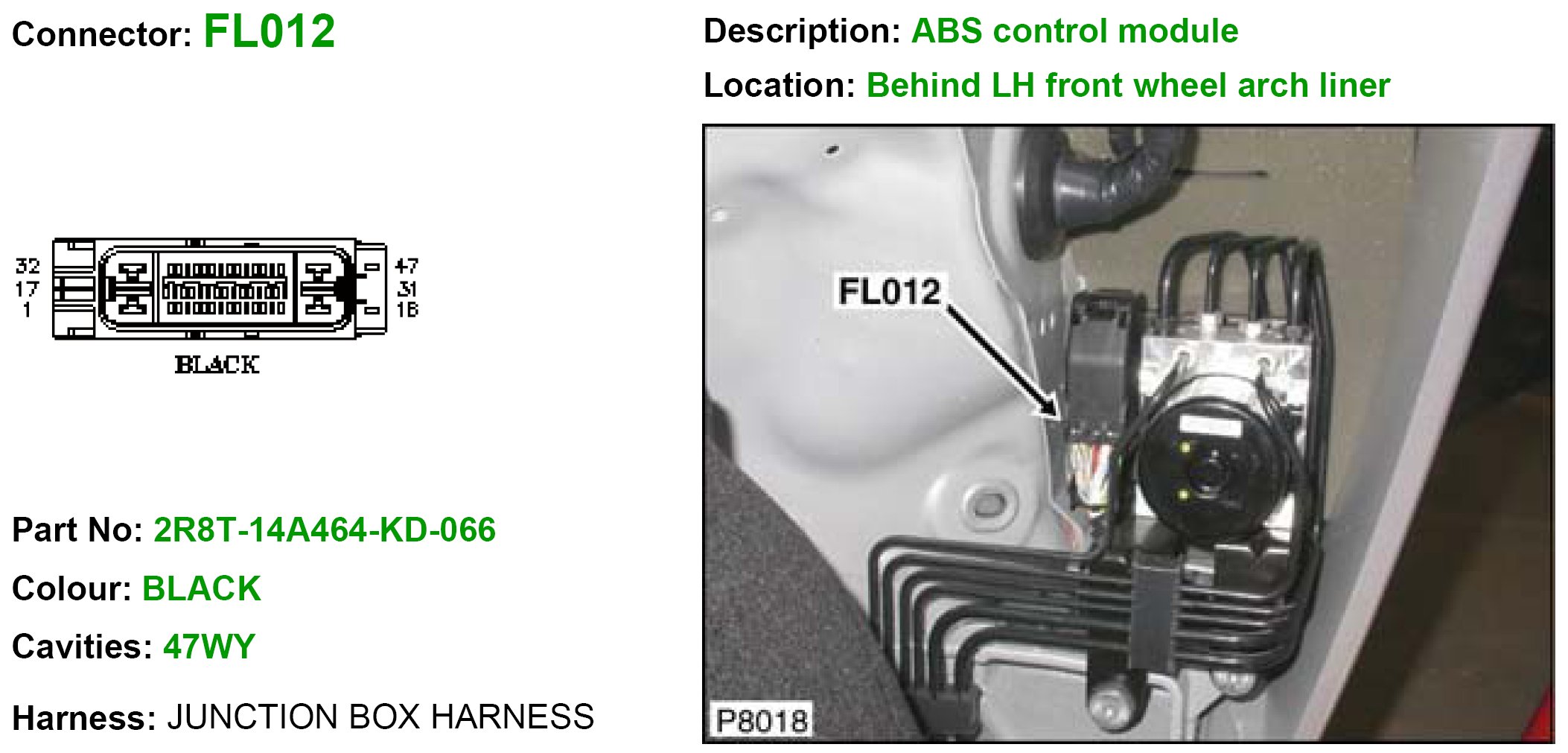

FL012 (Part 1):



FL012 (Part 2):

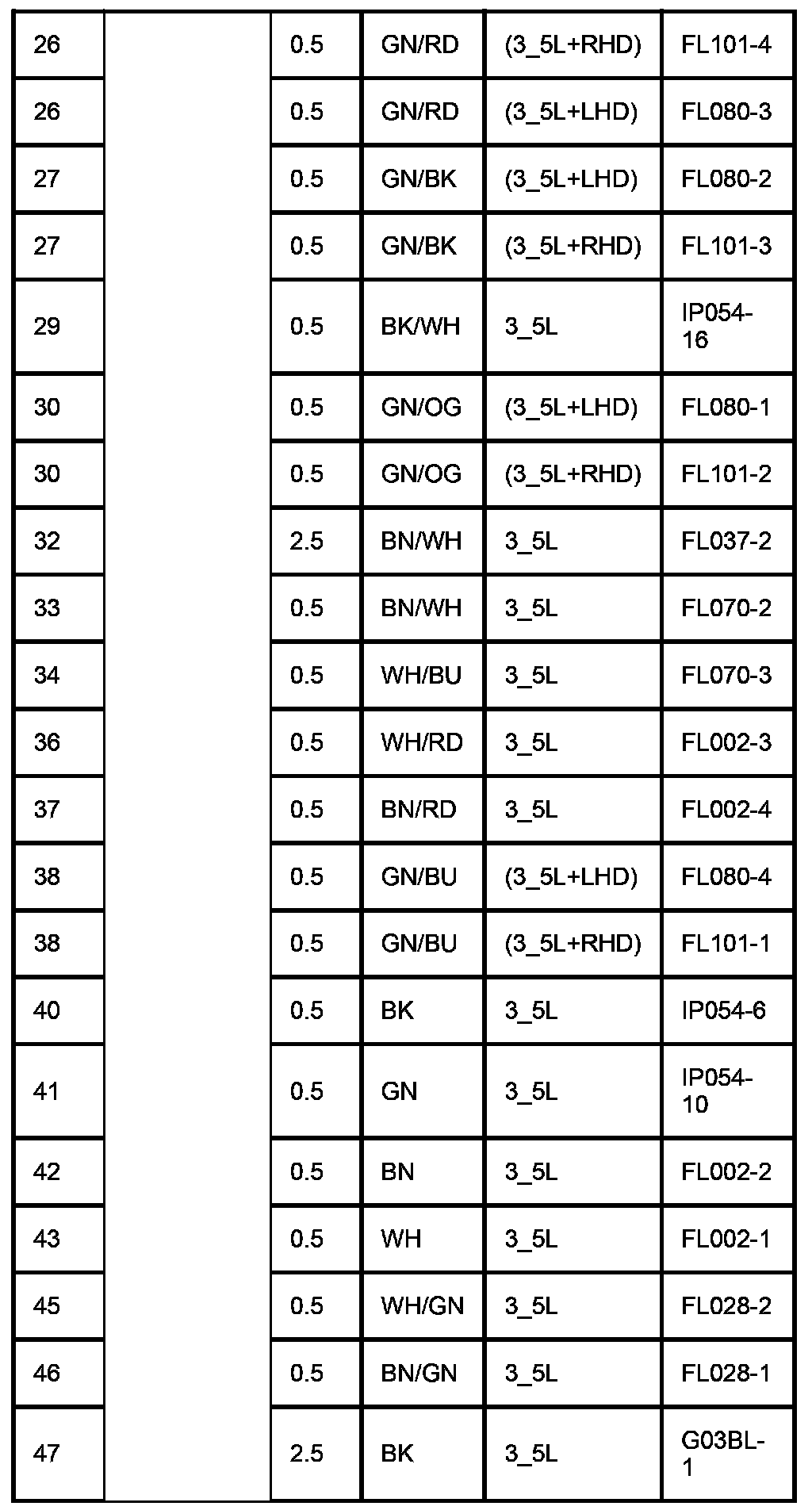

FL012 (Part 3):

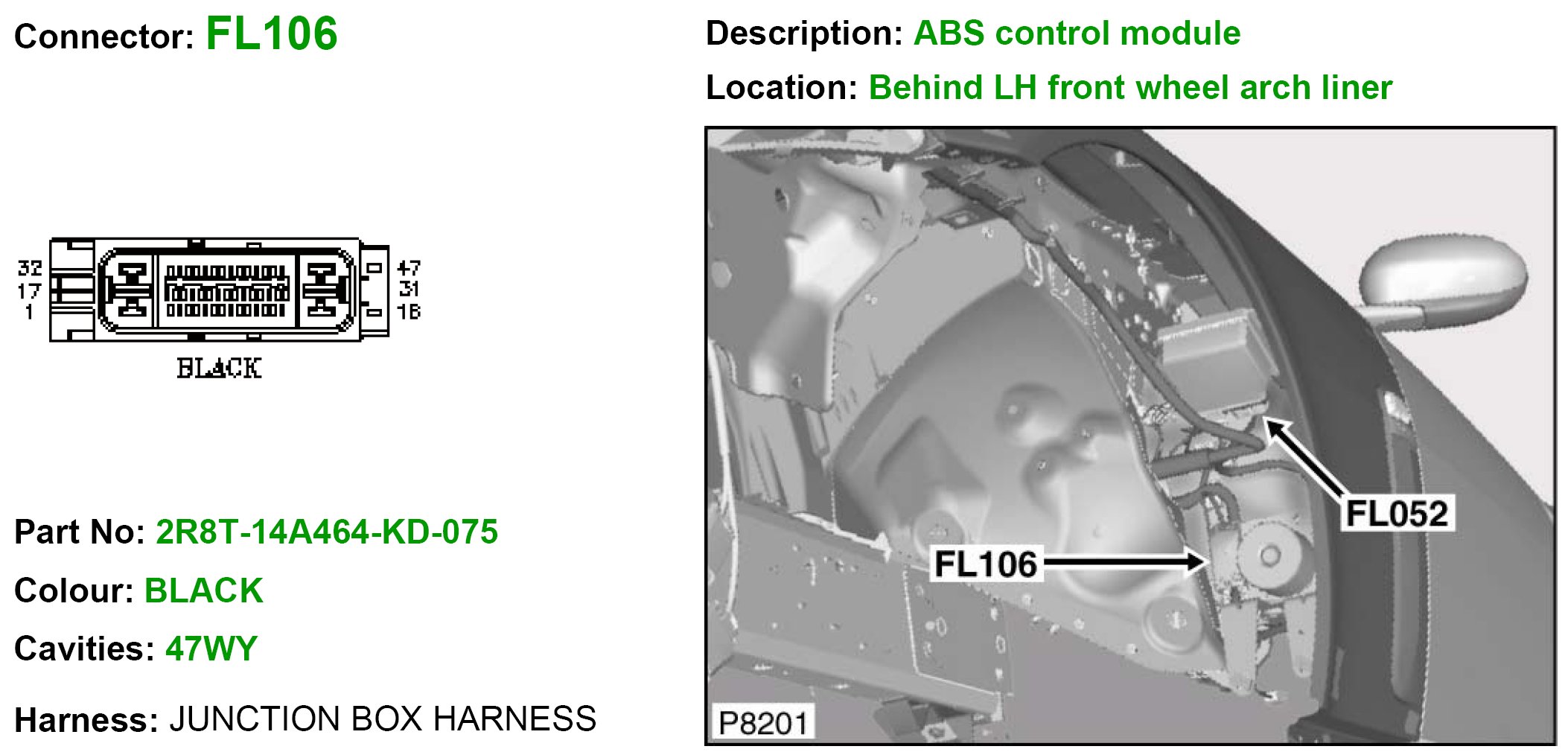

FL106 (Part 1):

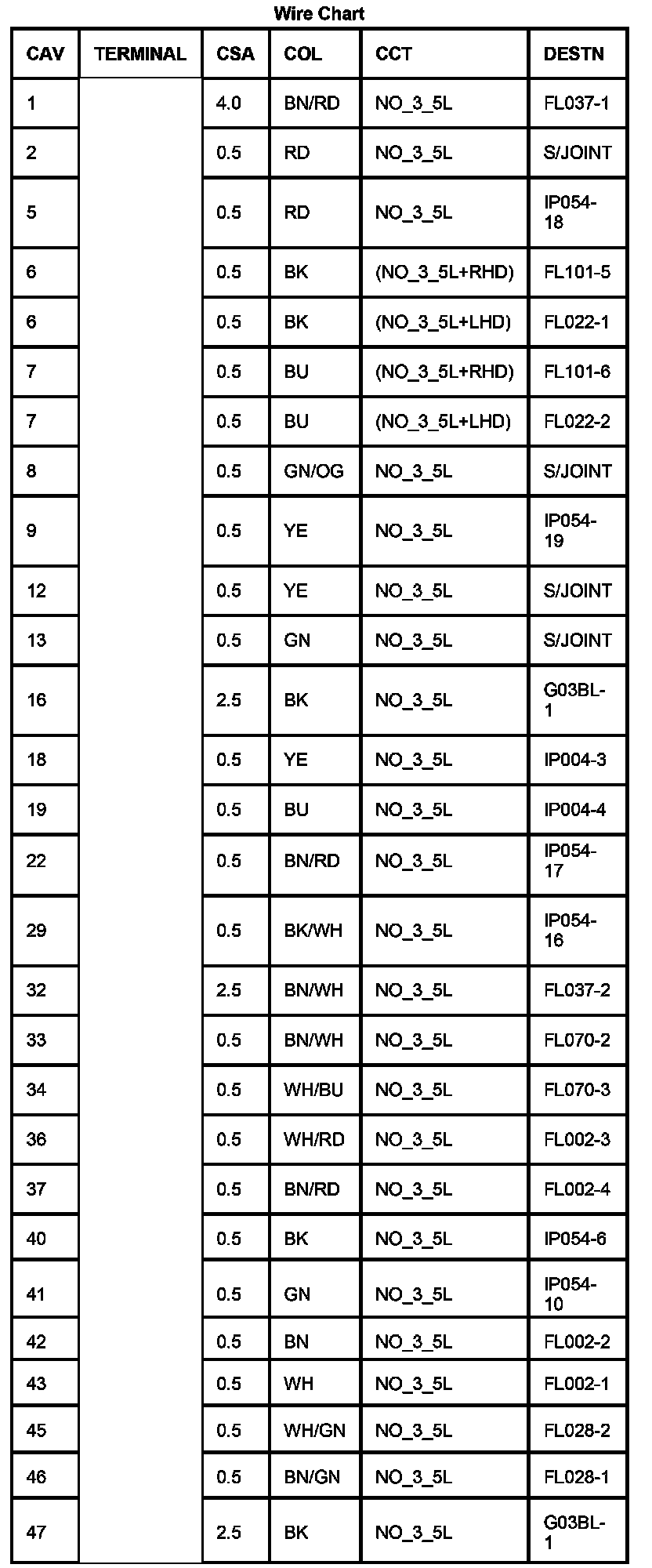

FL106 (Part 2):
