Removal and Replacement

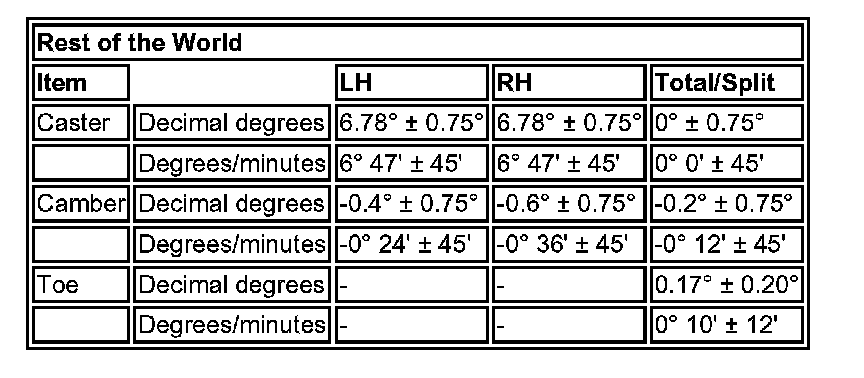

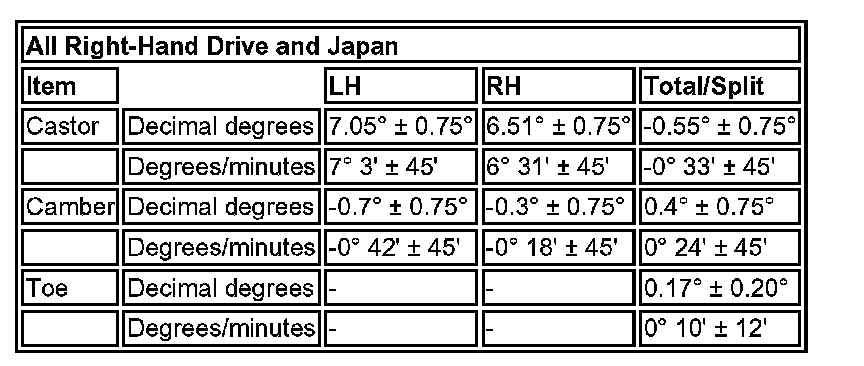

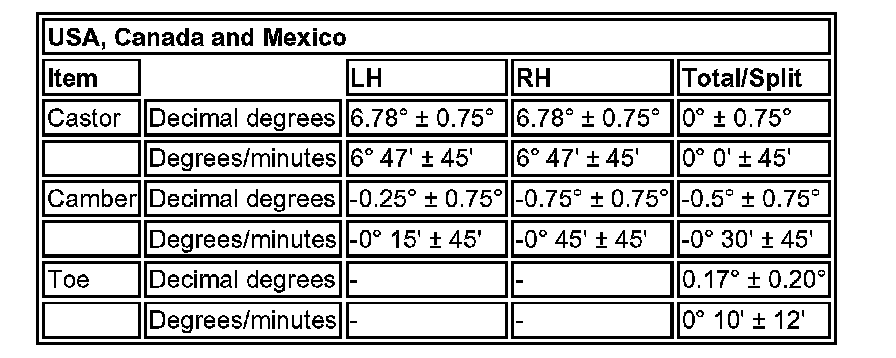

Wheel Alignment Specification - Front

NOTE: All figures measured at 'showroom' ride height.
NOTE: Tires must be inflated to normal pressure.

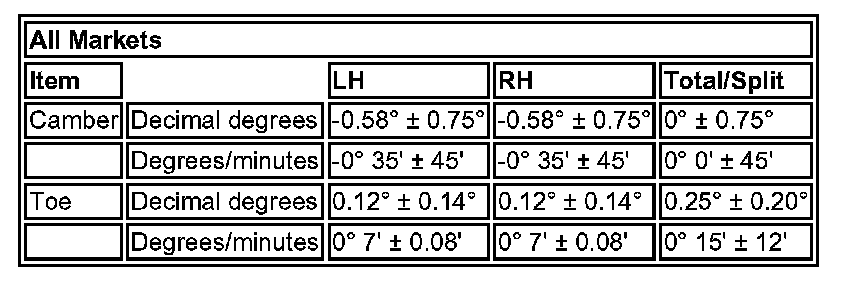

Wheel Alignment Specification - Rear

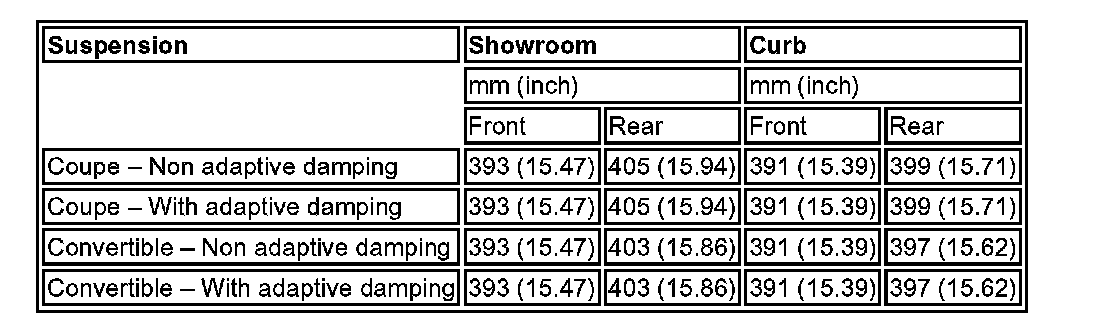

Vehicle Ride Height

NOTE:
^ Ride height is measured from the center of the wheel to the apex of the wheel arch, through the wheel center line.
^ All figures quoted assume ± 15 mm (0.59 in) anticipated build variance and condition.

NOTE:
^ Showroom = all fluids at full and 9 liters of fuel.
^ Curb = all fluids at full and a full tank of fuel.
