Parking Assist Control Module: Service and Repair

Parking Aid Module (86.80.39)

Removal

NOTE: The park control module is situated in the LH footwell and does not change position with the hand of drive.

1. Remove the cover and disconnect the battery ground cable.

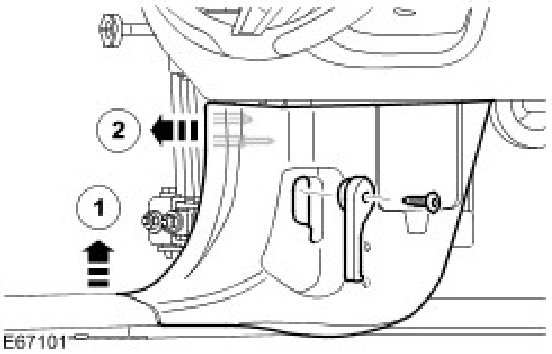

2. LH side: Remove the cowl side trim panel.
- Remove the Torx screw.
- Remove the hood release lever.
- Release the forward edge of the scuff plate trim panel.
- Carefully release the clips.







CAUTION: Make sure the wiring harness and electrical connectors are not damaged during the carpet release.

3. Carefully release the carpet for access.
- Carefully release the forward edge of the floor console side trim panel.

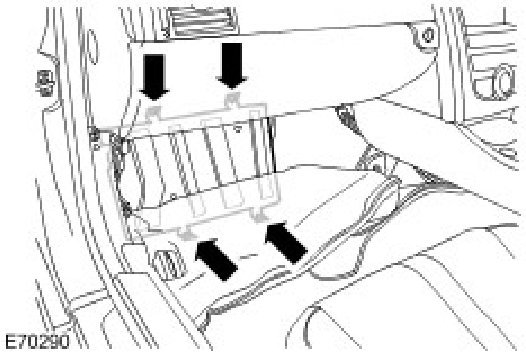

4. Release the subwoofer cover.
- Remove the 4 bolts.
- Position aside.

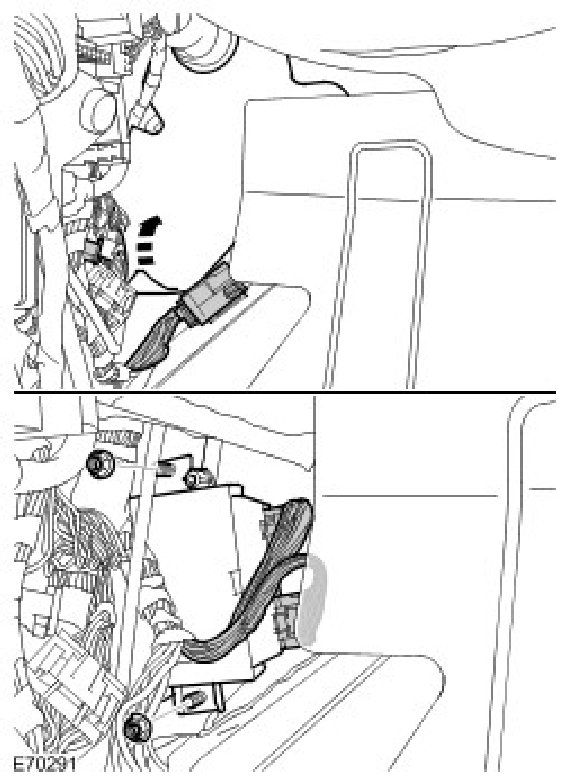

5. Remove the parking aid module.
- Position the acoustic pad aside.
- Release 2 electrical harness clips from the body and position aside.
- Remove the 2 nuts.
- Disconnect the 2 electrical connectors.







Installation
1. Install the parking aid module.
- Connect the electrical connectors.
- Tighten the nuts to 3 Nm (2 lb.ft).
- Secure the electrical harness.
- Align the acoustic pad.
2. Install the subwoofer cover.
- Tighten the bolts to 10 Nm (7 lb.ft).

CAUTION: Make sure the carpet is correctly installed and that no foul-condition exists when the accelerator pedal is depressed.

3. Install the carpet.
- Install the floor console side panel trim.
4. Install the cowl side trim panel.
- Carefully align and secure the clips.
- Secure the scuff plate trim panel.
5. Connect the battery ground cable and install the cover.
