General Specifications

Specifications

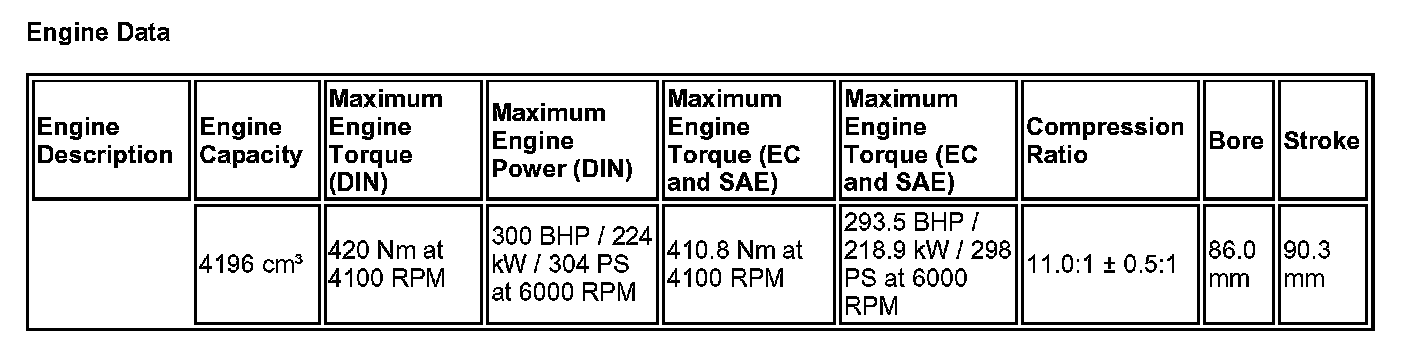

Engine Data

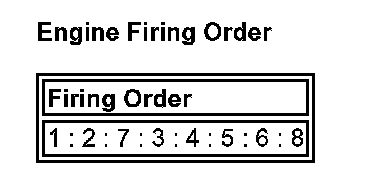

Engine Firing Order

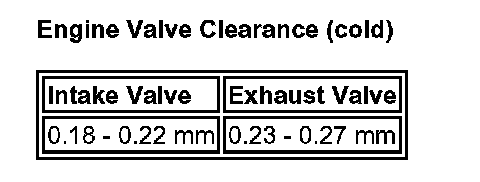

Engine Valve Clearance (cold)

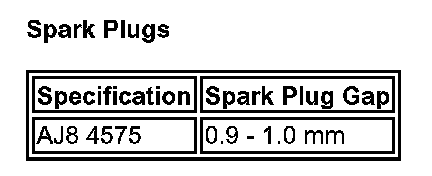

Spark Plugs
