Home >> Jaguar >> 2007 >> XK (X150) V8-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> CA101 - CA165 >> CA107

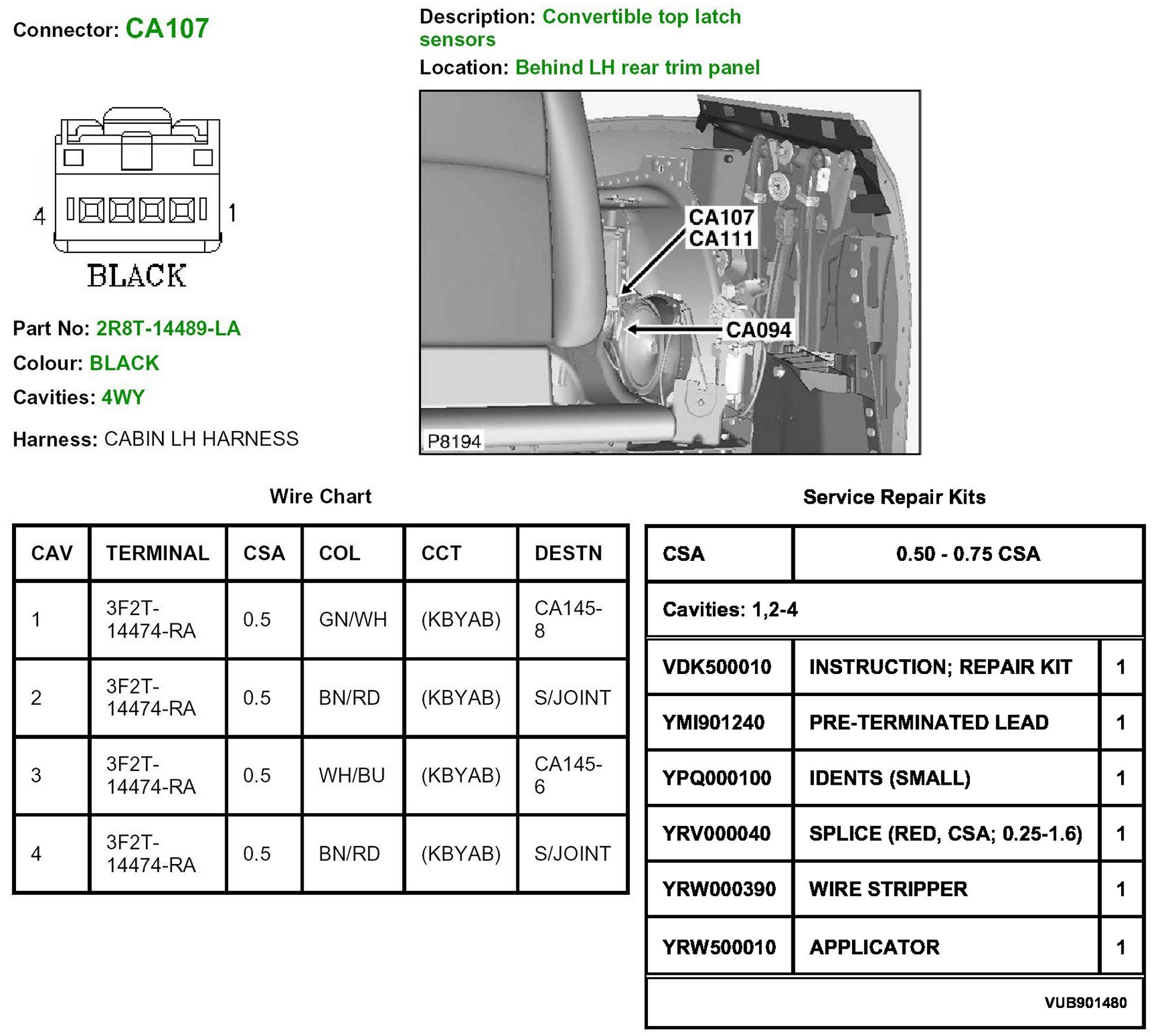

CA107

CA107:
