Air Injection: Service and Repair

Secondary Air Injection Manifold Absolute Pressure Sensor

Removal

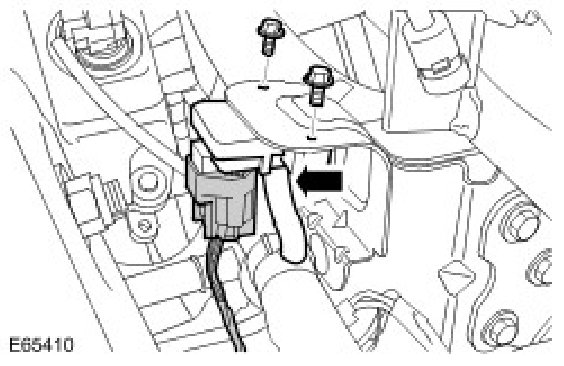

1. Remove the secondary air injection manifold absolute pressure sensor.
- Disconnect the electrical connector.
- Remove the 2 screws.
- Disconnect the hose.







Installation
1. To install, reverse the removal procedure.
