Rear Electronic Module

Rear Electronic Module (REM) (86.80.37)

Removal
1. Disconnect the battery ground cable.

CAUTION:
- Prior to removal of the module, it is necessary to upload module configuration information to the Jaguar approved diagnostic system. This information needs to be downloaded into the new module once installed.
- Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

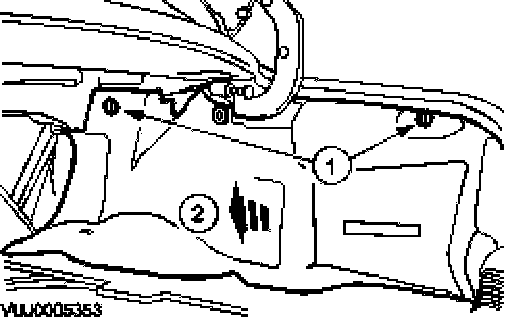

2. Detach the luggage compartment side trim panel.
- Remove the luggage compartment side trim panel retaining clip.
- Detach the luggage compartment side trim panel.

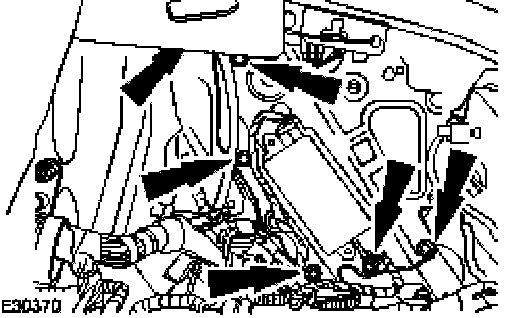

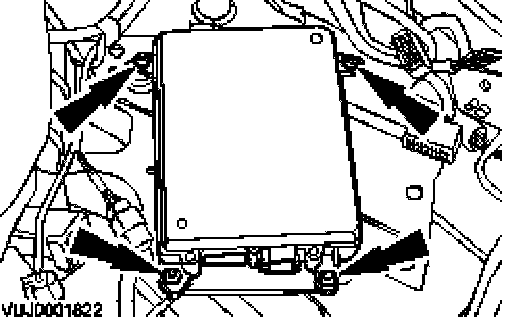

3. Detach the rear electronic module (REM) mounting bracket.

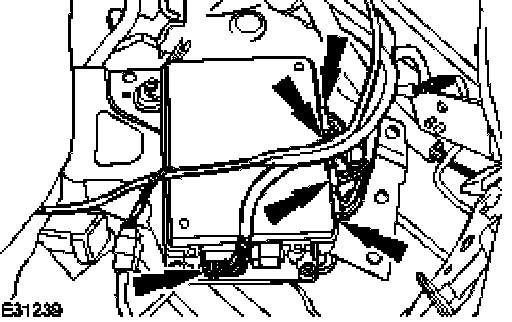

4. Disconnect the electrical connectors.







5. Remove the REM.







Installation

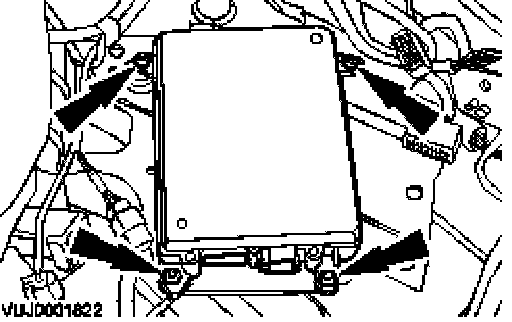

1. To install, reverse the removal procedure.
- Tighten to 10 Nm.
