Air Cleaner Housing: Service and Repair

Air Cleaner

Removal
1. Remove the air cleaner outlet pipe.







2. Disconnect the mass air flow (MAF) sensor electrical connector.
3. Remove the radiator grill opening panel.

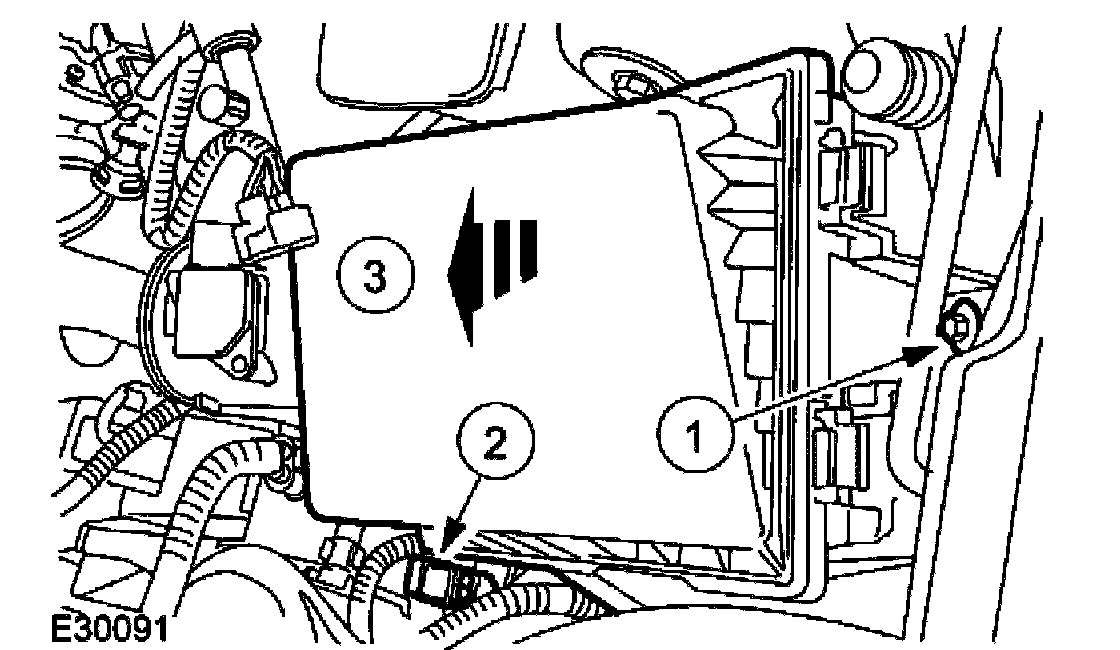

4. Remove the air cleaner.
1. Remove the air cleaner retaining bolt.
2. Disconnect the extra air flap actuator electrical connector.
3. Remove the air cleaner.

Installation

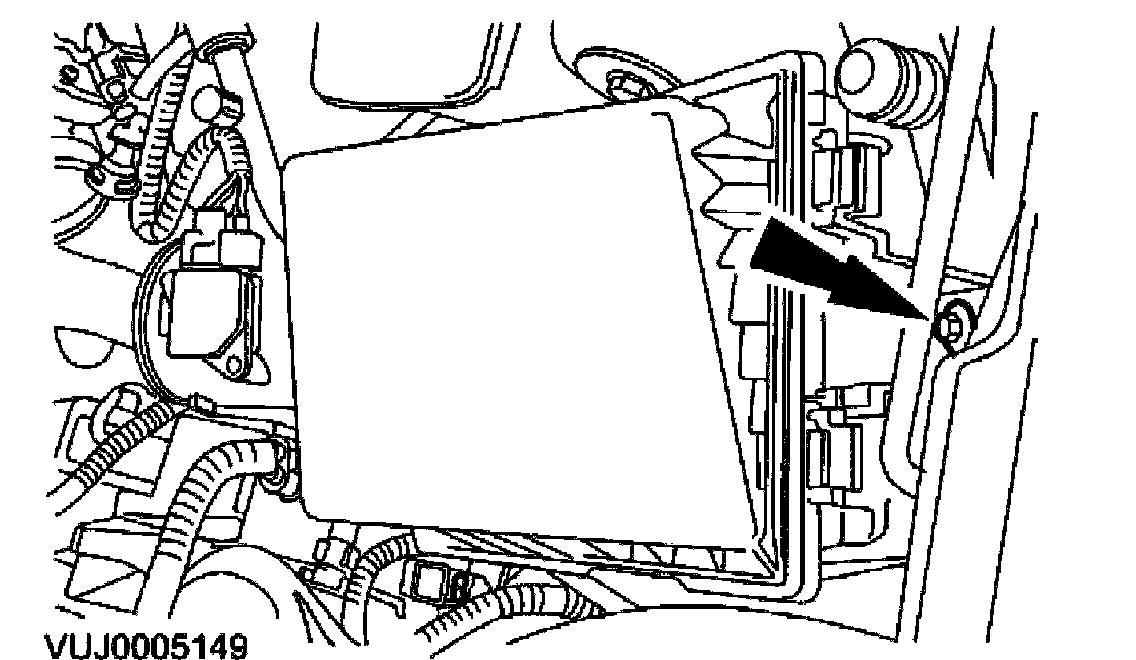

1. NOTE: When installing the air cleaner, make sure the locating pegs fit securely in the grommets located in the inner wing.

To install, reverse the removal procedure.
- Tighten to 8 Nm.
