Compact Disc (CD) Changer - Wagon

Compact Disc (CD) Changer - Wagon (86.50.06)

Removal

1. NOTE: Make sure the audio unit pin code is available before disconnecting the battery ground cable.

Disconnect the battery ground cable.

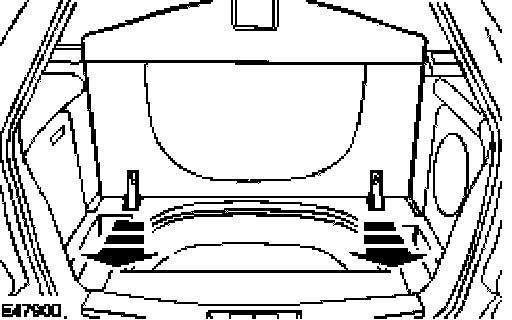

2. Raise the loadspace floor covering.

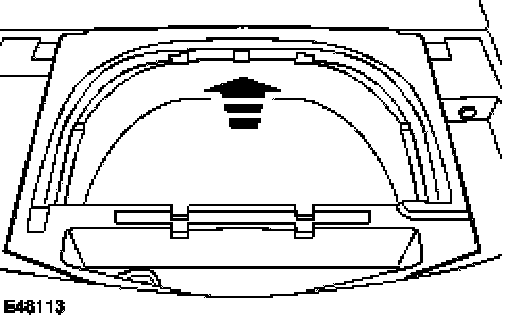

3. Remove the loadspace floor covering.

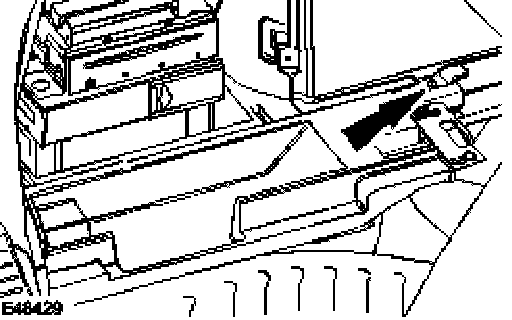

4. Remove the centre loadspace stowage compartment.

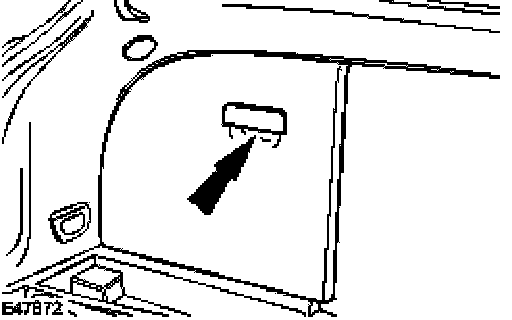

5. Remove the loadspace stowage compartment trim panel.







6. Remove the loadspace stowage compartment.

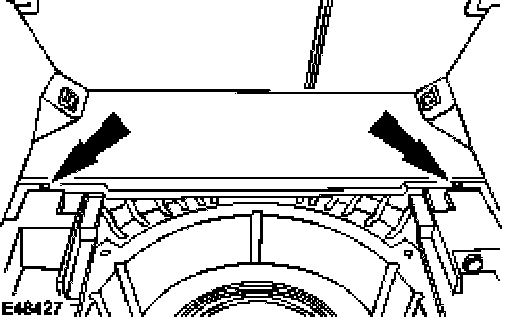

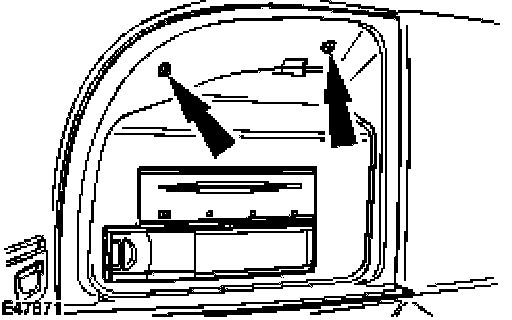

7. Remove the loadspace floor covering retaining screws.

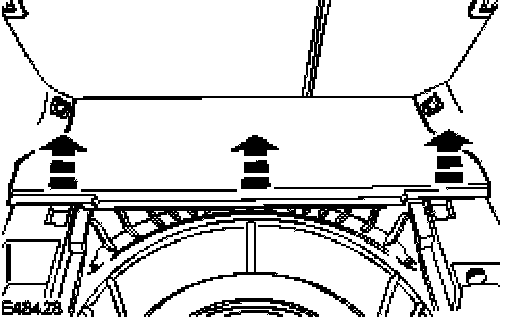

8. Detach the loadspace floor covering upwards.

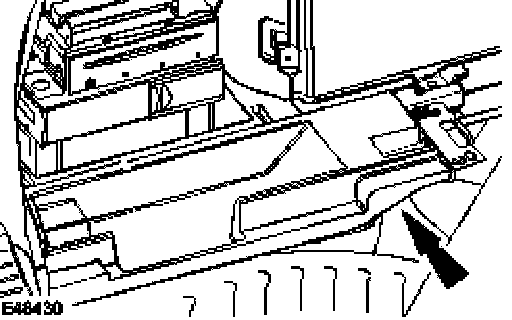

9. Remove the left-hand loadspace stowage compartment retaining screw.







10. Remove the left-hand loadspace stowage compartment.

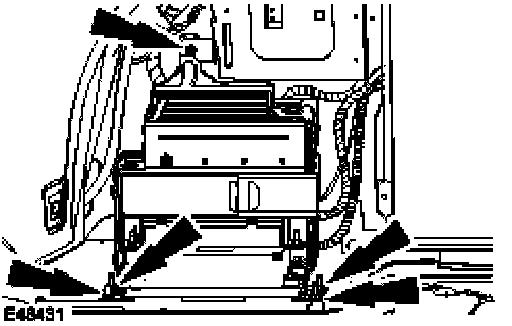

11. Detach the module retaining bracket.

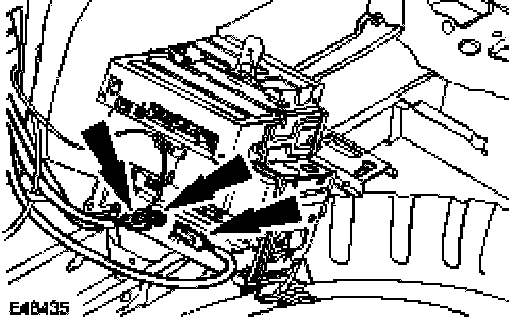

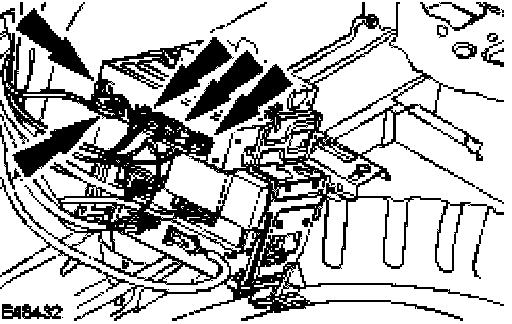

12. Disconnect the navigation system module electrical connectors.

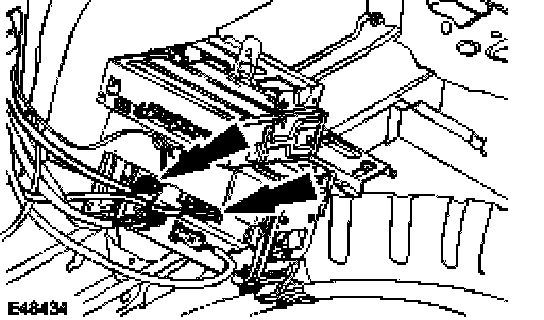

13. Disconnect the compact disc (CD) changer electrical connectors.

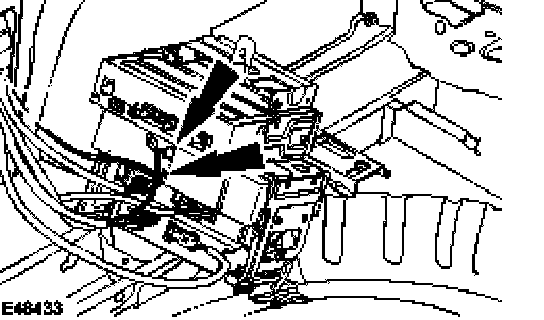

14. Disconnect the multifunction voice activated module electrical connectors.







15. Disconnect the cellular phone module electrical connectors.

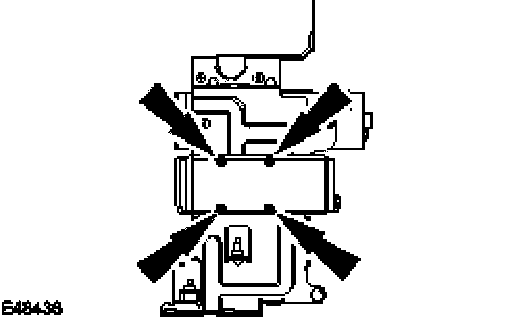

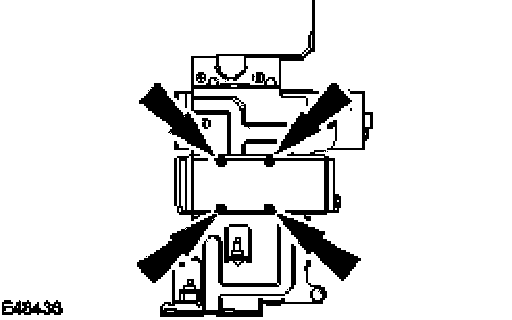

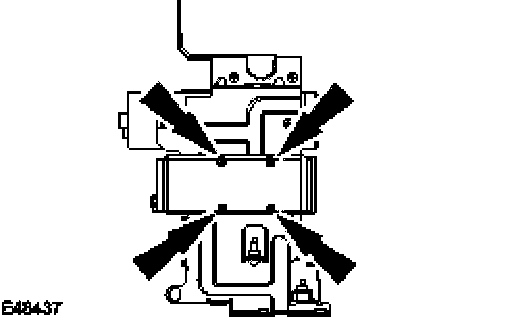

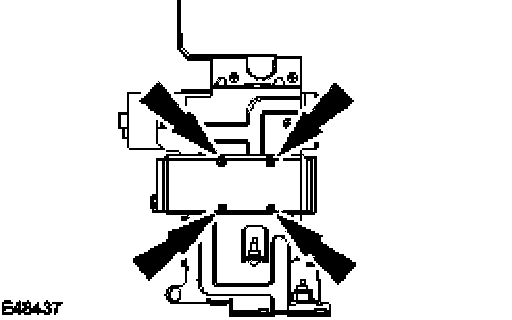

16. Remove the CD player retaining bolts.







17. Remove the CD player.







Installation
1. To install, reverse the removal procedure.
- Tighten to 1 Nm.







2. Tighten to 1 Nm.







3. Tighten the module retaining bracket upper and lower fixings.
- Tighten the lower retaining nuts to 4 Nm.
- Tighten the upper retaining bolt to 9 Nm.







4. Connect the battery ground cable.
