Exterior Mirror Motor (76.10.57)

Exterior Mirror Motor (76.10.57)

Removal
1. Remove the exterior mirror glass.
2. Detach the exterior mirror motor.

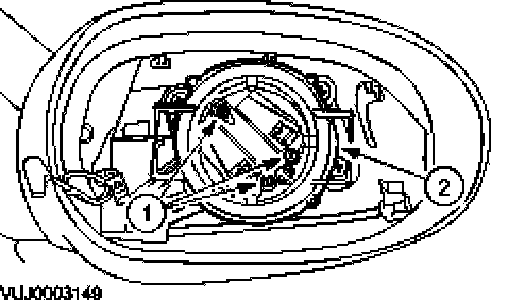

1. Remove the exterior mirror motor retaining screws.
2. Detach the exterior mirror motor.







3. Remove the exterior mirror motor.

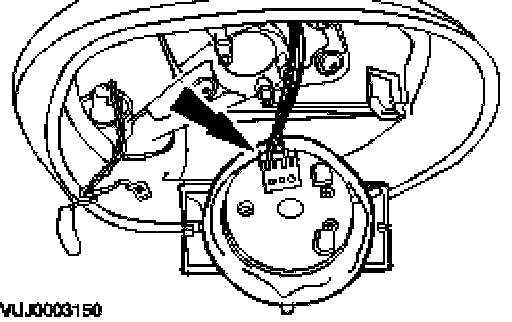

- Disconnect the exterior mirror motor electrical connector.







Installation
1. To install, reverse the removal procedure.
