Engine - General Information

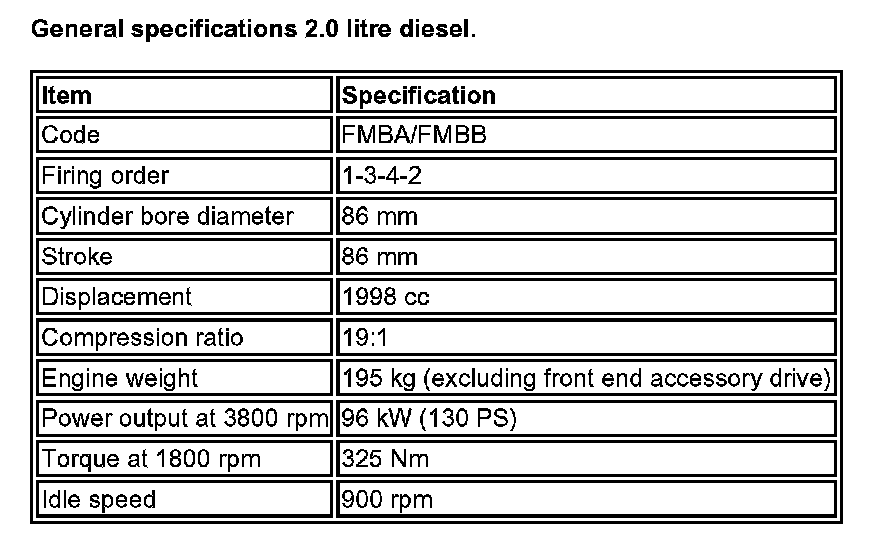

SpecificationsGeneral Specifications 2.0 Litre Diesel:

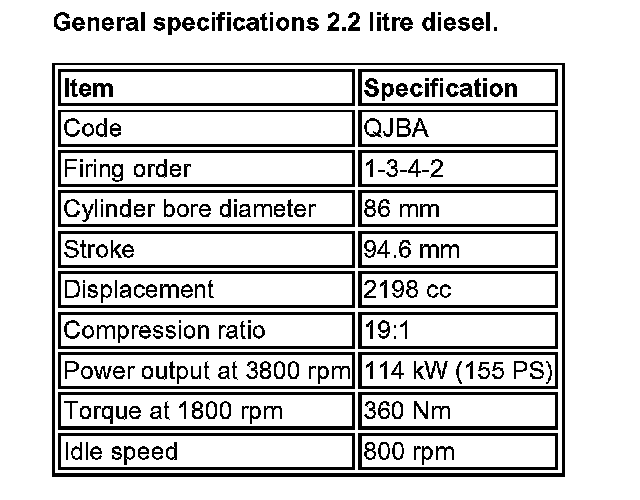

General Specifications 2.2 Litre Diesel:

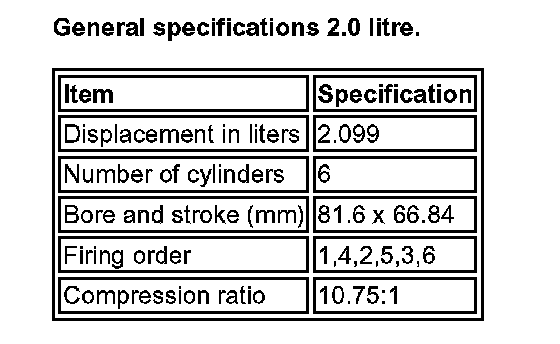

General Specifications 2.0 Litre:

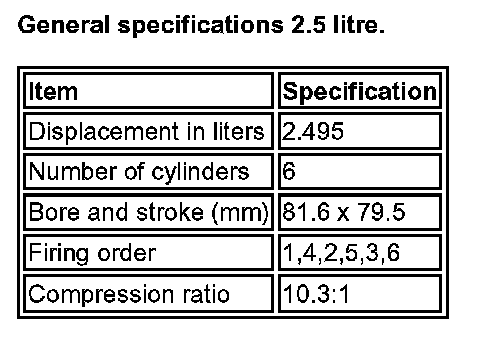

General Specifications 2.5 Litre:

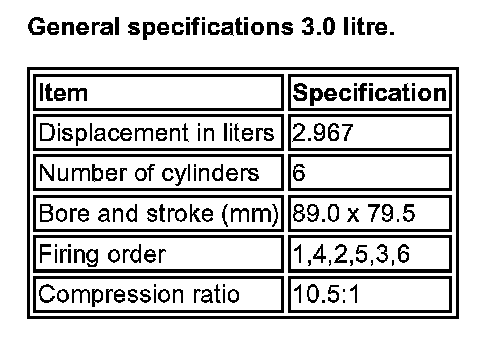

General Specifications 3.0 Litre:

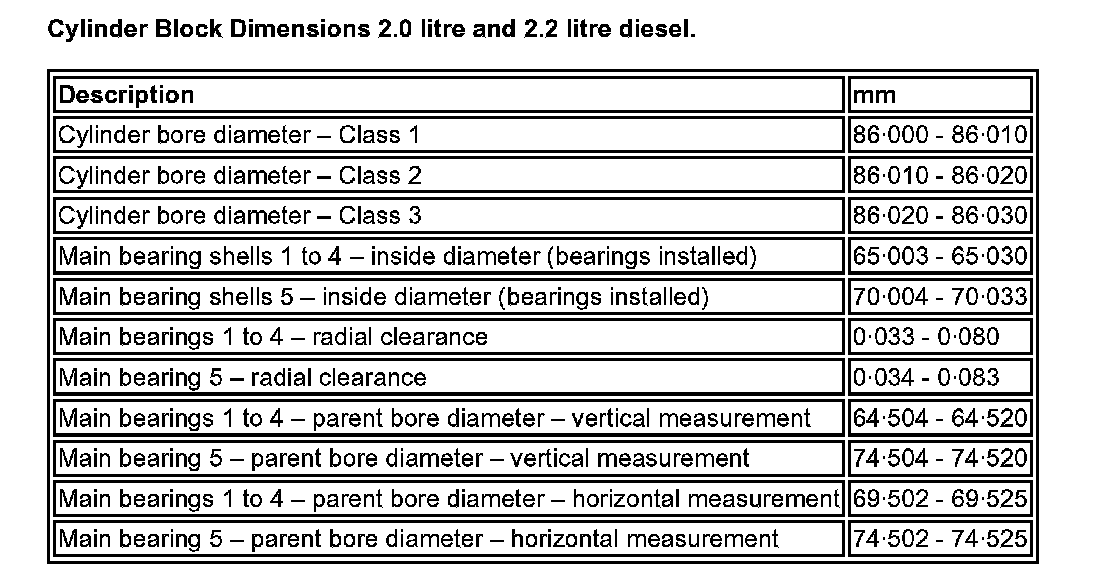

Cylinder Block Dimensions 2.0 Litre And 2.2 Litre Diesel:

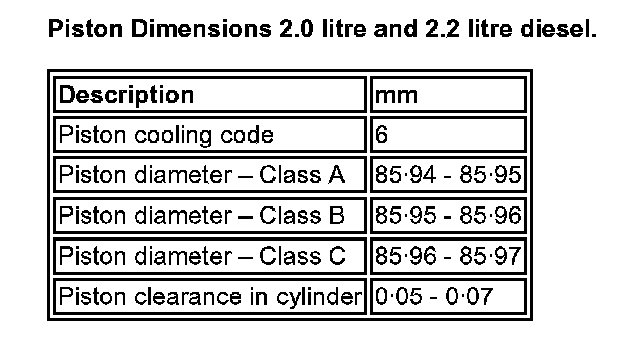

Piston Dimensions 2.0 Litre And 2.2 Litre Diesel:
Piston Ring Gap - Piston Ring Installed 2.0 Litre And 2.2 Litre Diesel:
Piston ring gap position: Distribute the piston ring gaps evenly around the circumference of the piston. This also applies to the oil control scraper ring elements. Position the ring gaps offset at 120 degrees to one another. Piston Pin Dimensions 2.0 litre and 2.2 litre diesel.
Piston Pin Dimensions 2.0 Litre And 2.2 Litre Diesel:
Crankshaft Dimensions 2.0 Litre And 2.2 Litre Diesel:

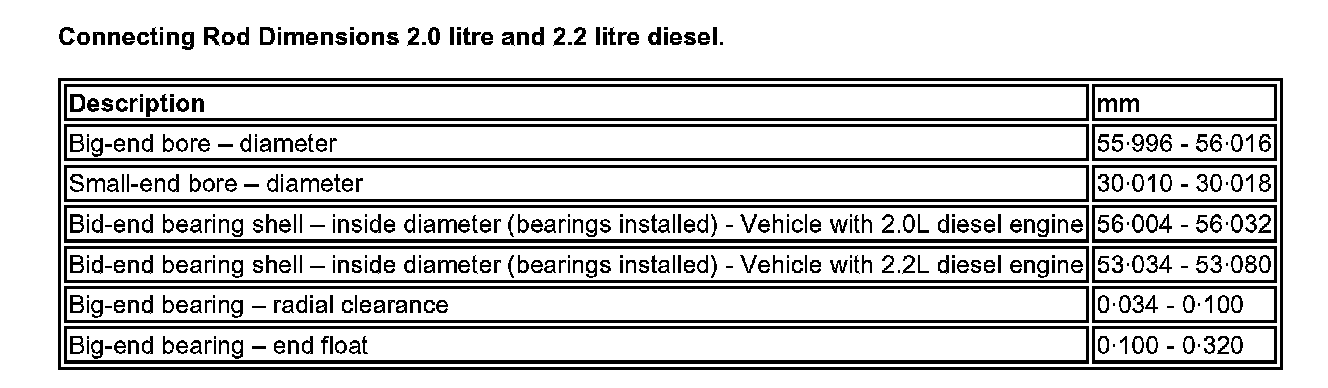

Connecting Rod Dimensions 2.0 Litre And 2.2 Litre Diesel:

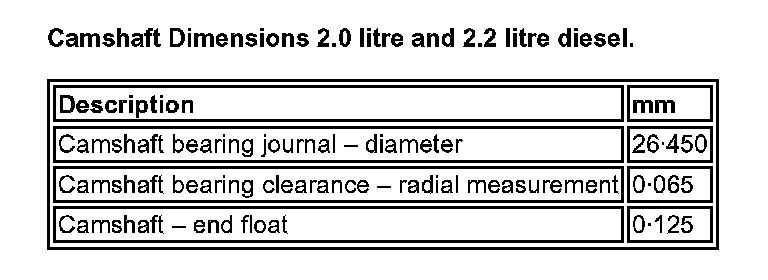

Camshaft Dimensions 2.0 Litre And 2.2 Litre Diesel:

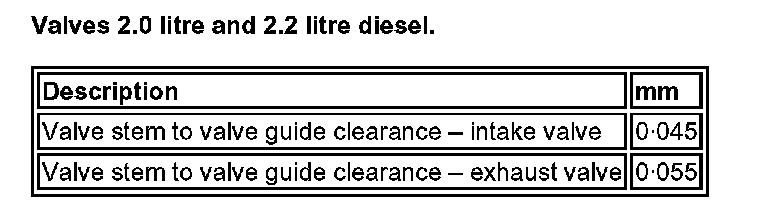

Valves 2.0 Litre And 2.2 Litre Diesel:

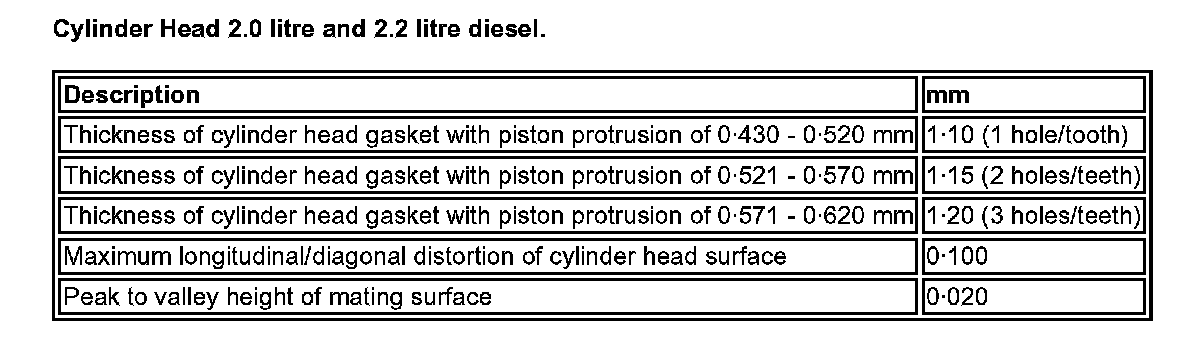

Cylinder Head 2.0 Litre And 2.2 Litre Diesel:

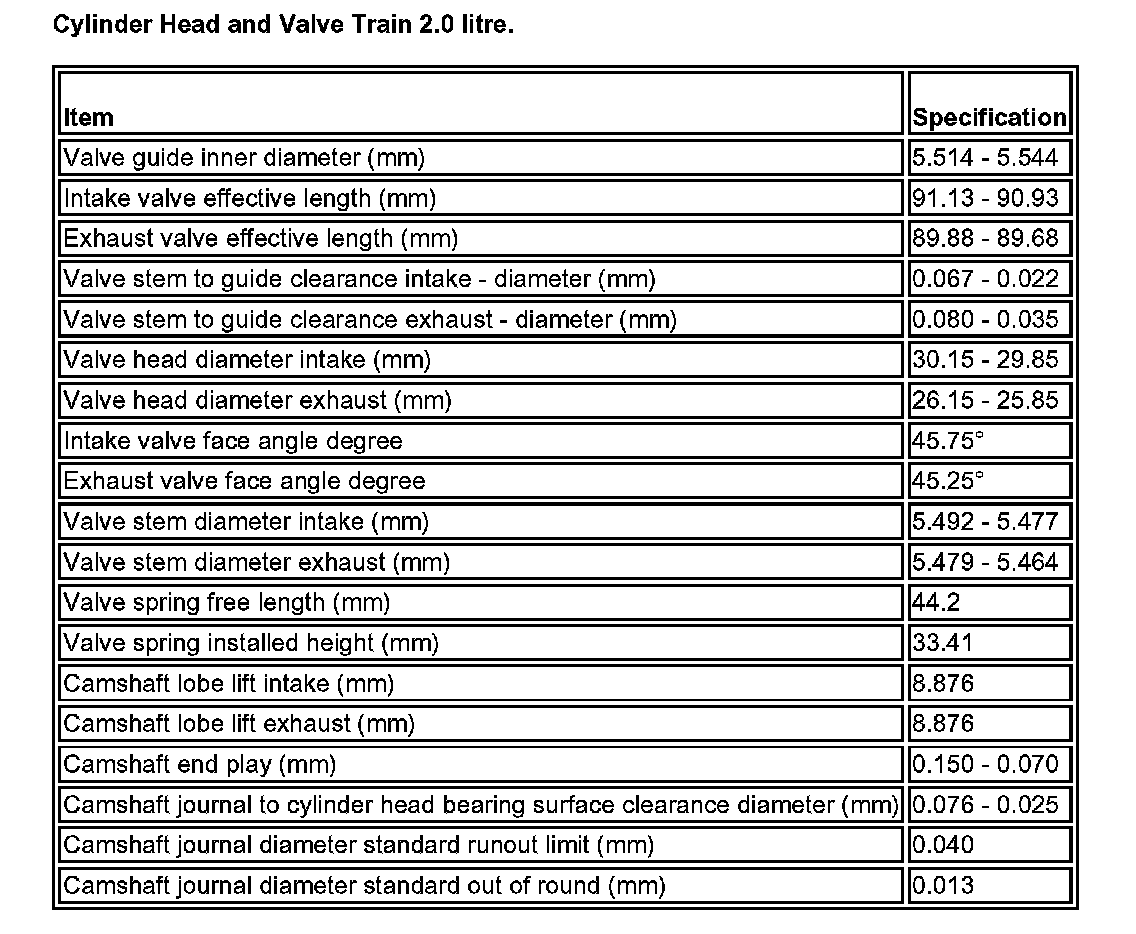

Cylinder Head And Valve Train 2.0 Litre:

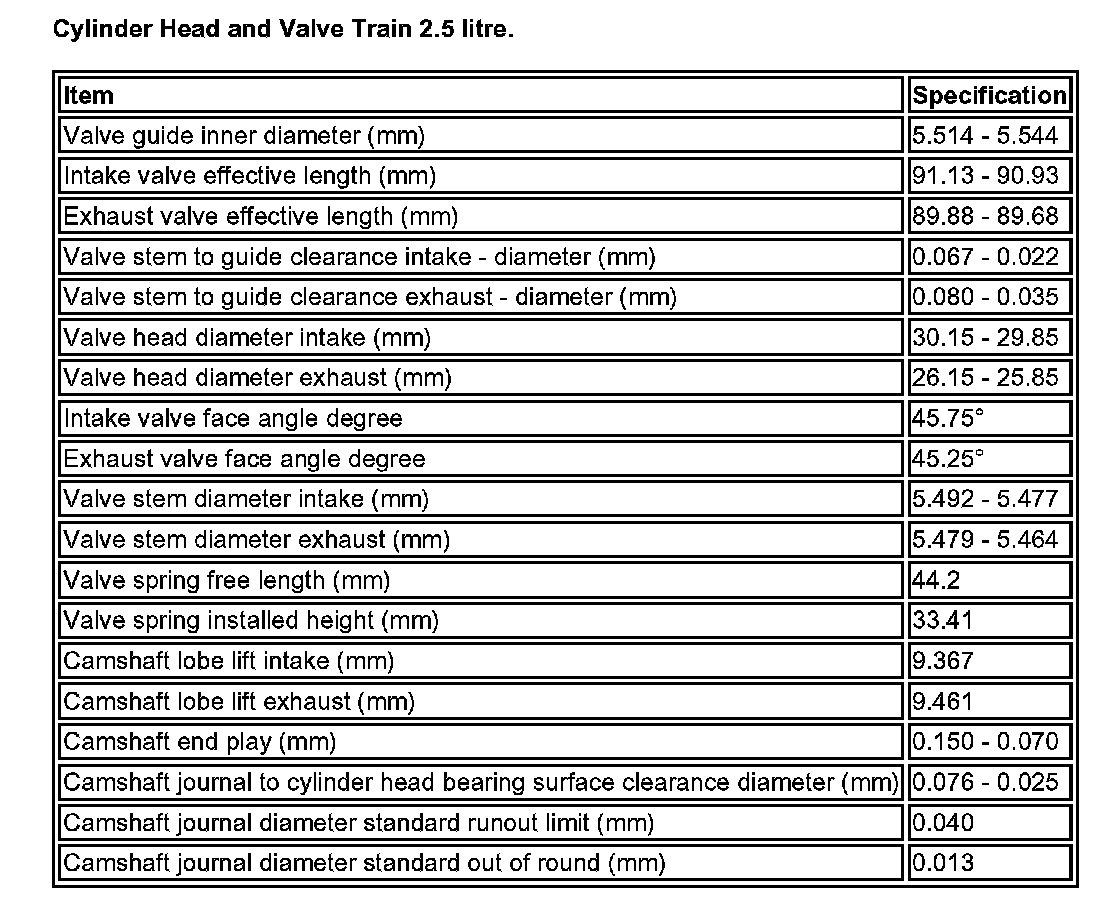

Cylinder Head And Valve Train 2.5 Litre:
Cylinder Head And Valve Train 3.0 Litre:
Lubrication System 2.0 Litre And 2.2 Litre Diesel:
Lubrication System 2.0, 2.5 And 3.0 Litre:
