Without Scan Tool
Flash Codes
Self check (no fault on system)
1. Turn the ignition switch to the ON position.
2. Observe the airbag warning light function.
- Warning light ON solid for six seconds.
- Warning light goes off and stays off.
Fault on system
3. Turn the ignition switch to the ON position.
4. Observe the airbag warning light function.
- Warning light ON solid for six seconds.
- Warning light goes off for two seconds.
- Warning light flashes the appropriate number of times for the fault logged (see below).
- Warning light goes off for two seconds.
- The sequence is repeated five times.
- Warning light stays ON until the ignition is switched OFF.
Example
Flash code 16 would be shown as lamp ON for one occurence of 0.5 seconds, then lamp OFF for one second, followed by six occurences of lamp flashing ON/OFF for 0.5 seconds each (1 - 6).
Diagnostic trouble code (DTC) flash code index
NOTE: Other DTCs and flash codes may be stored relating to the safety belt system, Safety Belt System

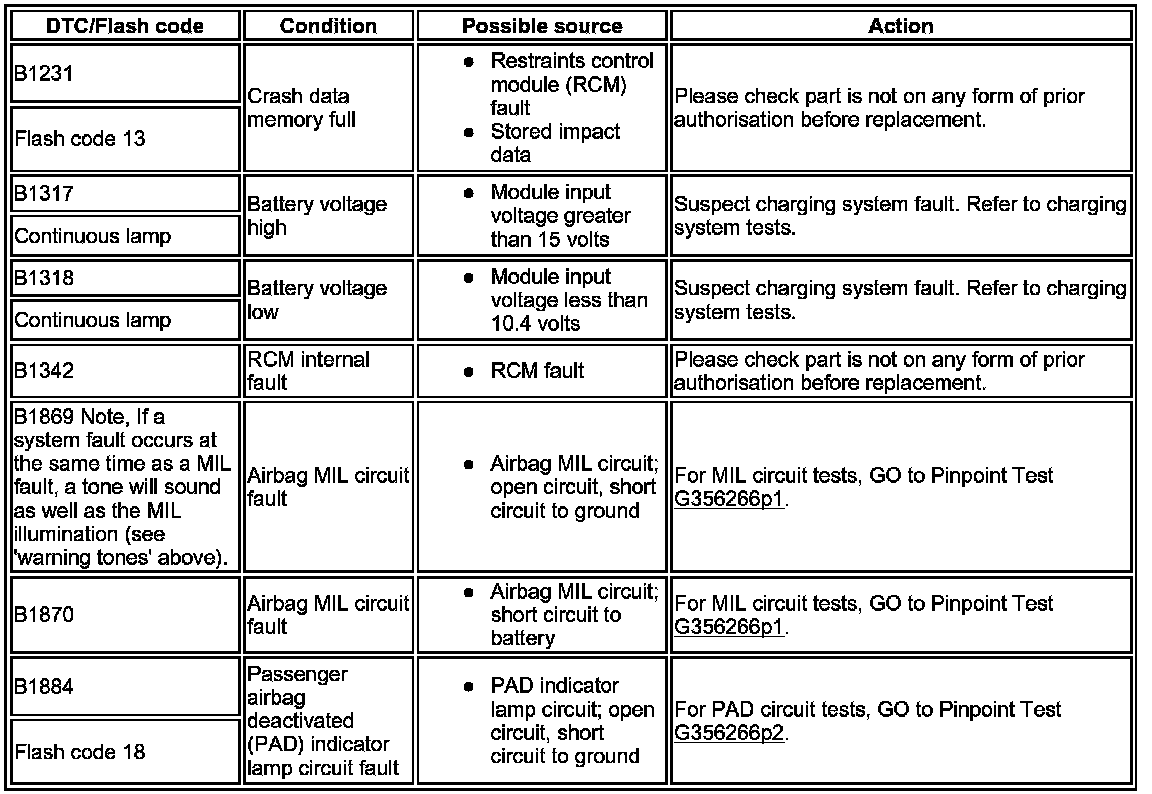

B1231-B1884:

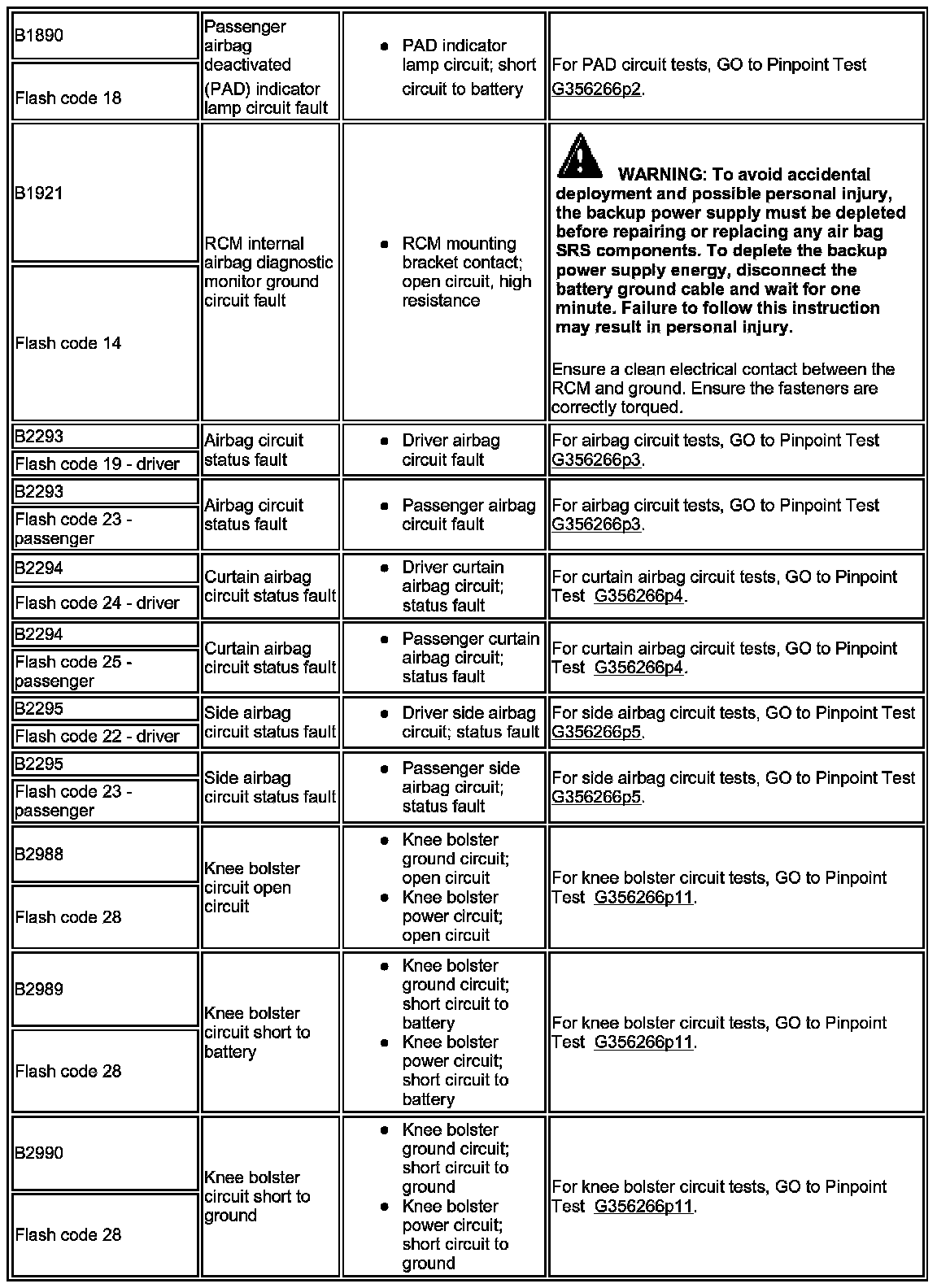

B1890-B2990:

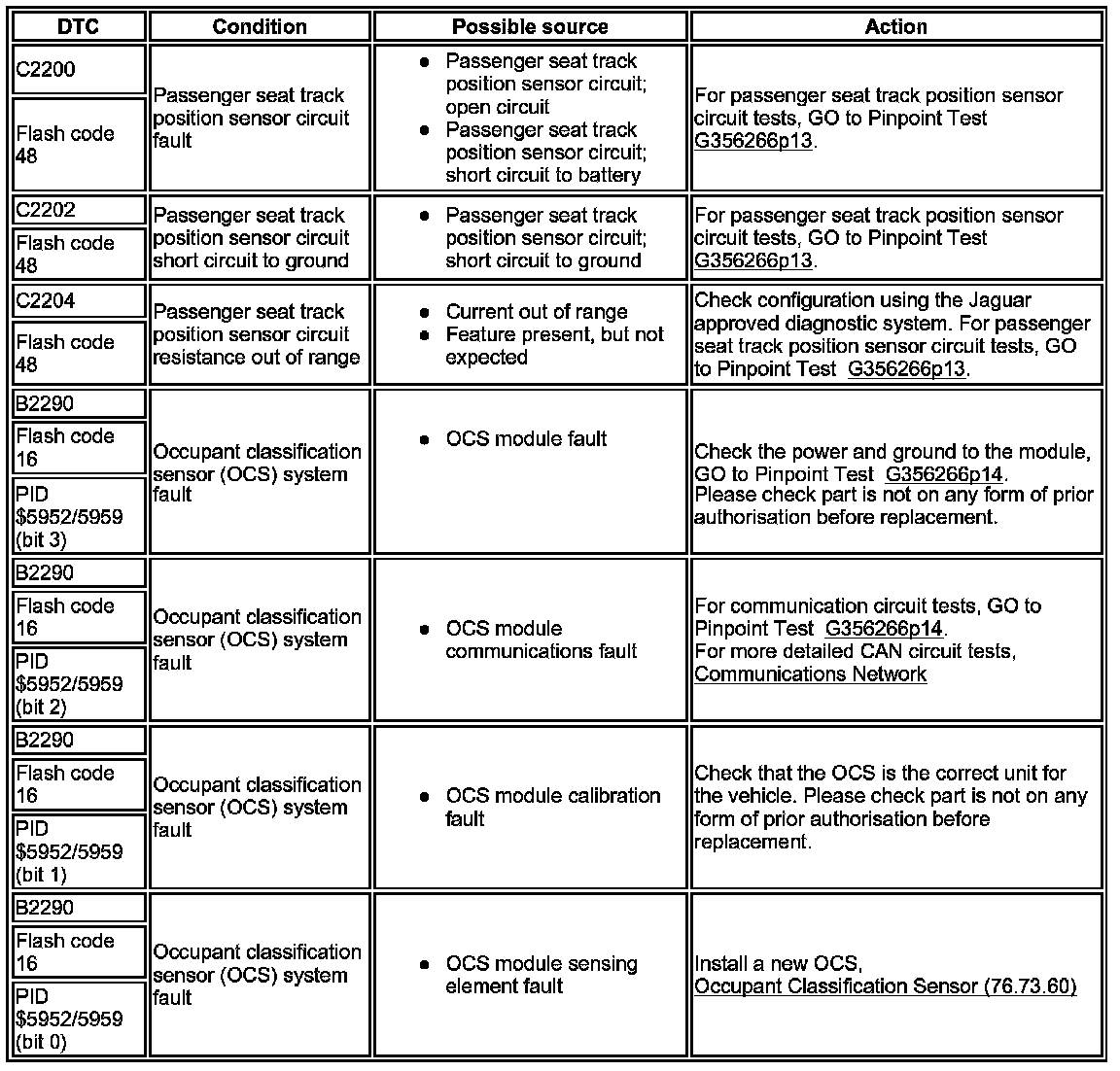

B2296-B2991 / C1947-C1981:
Additional tests for changes to be introduced
