Ambient Temperature Sensor / Switch HVAC: Service and Repair

Ambient Air Temperature Sensor (82.20.02)

Removal

CAUTION: Make sure the ignition switch is in the off position before disconnecting the ambient air temperature sensor.

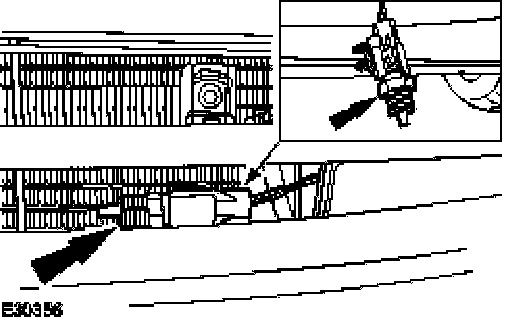

1. Detach the ambient air temperature sensor from the power assisted steering cooler bracket.

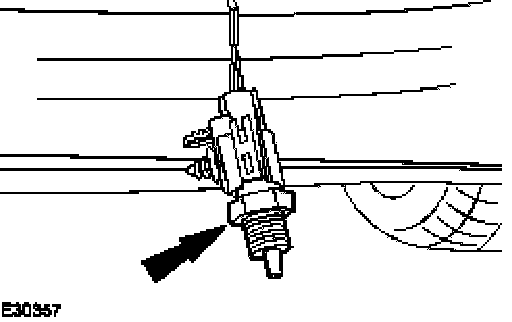

2. Remove the ambient air temperature sensor.
- Disconnect the electrical connector.







Installation

1. To install, reverse the removal procedure.
