Battery

Battery (86.15.01)

Removal

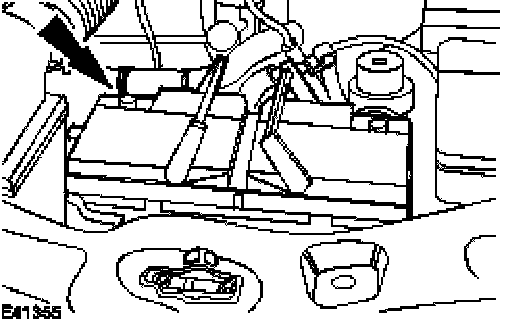

1. Disconnect the battery ground cable.

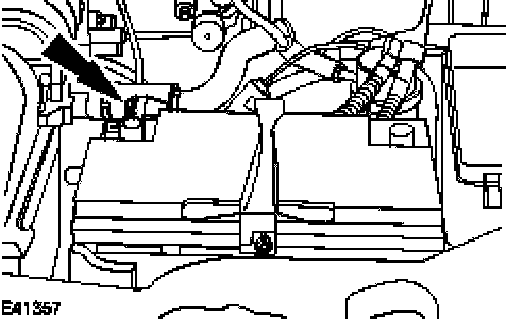

2. NOTE: Petrol engine shown, diesel engine similar.

Disconnect the battery positive cable.

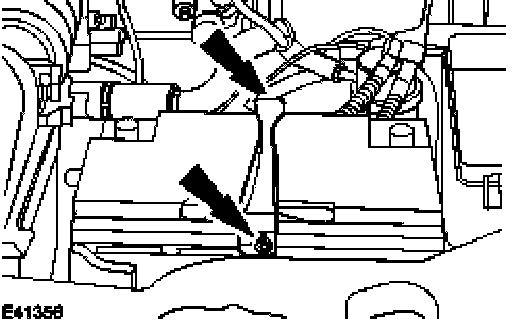

3. NOTE: Petrol engine shown, diesel engine similar.

Remove the battery clamp.

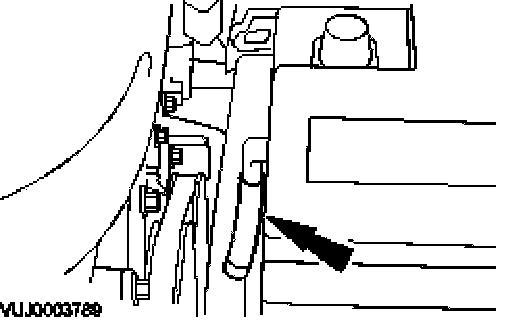

4. NOTE: Petrol engine shown, diesel engine similar.

Disconnect the battery vent tube.







5. NOTE: Petrol engine shown, diesel engine similar.

Remove the battery.

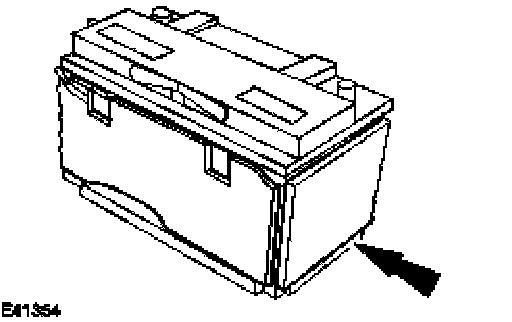

6. NOTE: Petrol engine shown, diesel engine similar.

Remove the battery heat shield.







Installation

1. To install, reverse the removal procedure.
