Home >> Jaguar >> 2008 >> X-Type (X400) V6-3.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Control Module >> Locations

Control Module: Locations

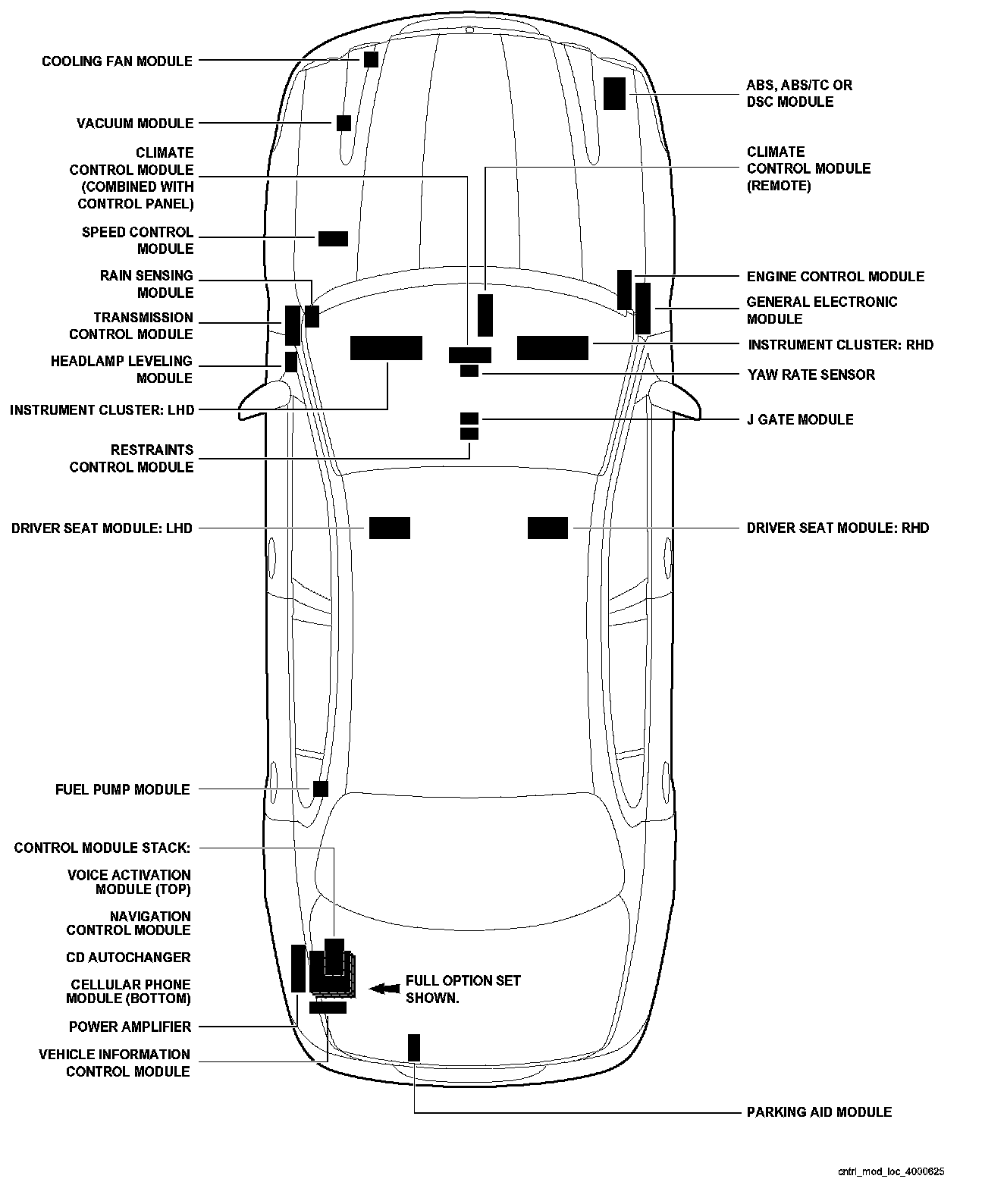

Control Module Location:

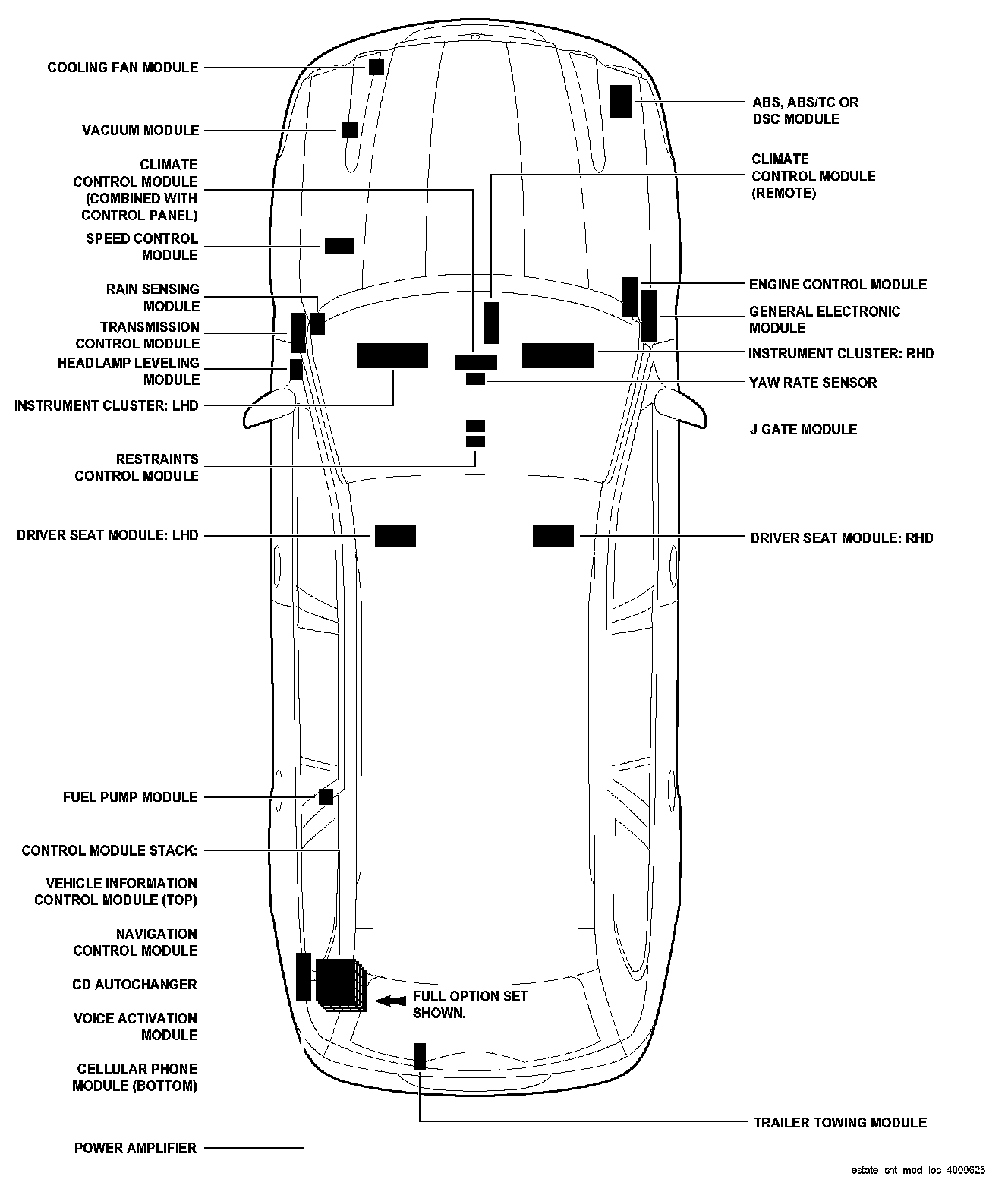

Control Module Location:



Control Module Location:



Control Module Location:
