Luggage Compartment Lid

Luggage Compartment Lid (76.19.01)

Removal

1. Remove the luggage compartment lid trim panel.

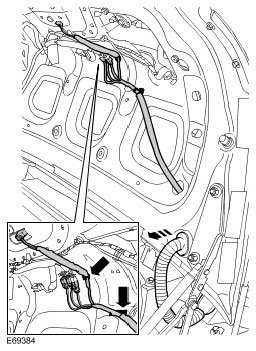

2. Disconnect the 4 luggage compartment lid harness electrical connectors.
3. Release the wiring harness.
- Remove the electrical harness clip.







4. Release the electrical harness.
- Release the electrical harness clip.

5. Release the clips and disconnect the struts.







6. With assistance, remove the luggage compartment lid.
- Remove the 4 nuts.







7. NOTE: Do not disassemble further if the component is removed for access only.

Remove the luggage compartment lid latch operating cable from the lock cylinder.
- Release the cable from the clip.

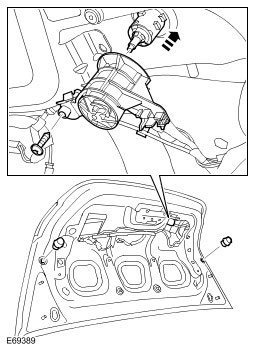

8. Remove the luggage compartment lid latch assembly.
- Remove the 3 Torx bolts.







9. Remove the bump stops.
10. Remove the luggage compartment lid lock cylinder.







11. Remove the rear spoiler.
- Disconnect the electrical connector.
- Release the 3 wiring harness clips.
- Remove the 2 bolts.
- Release the 9 clips.

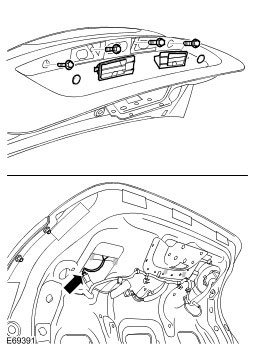

12. Remove the license plate lamp housing.
13. Remove the luggage compartment lid finisher.
- Disconnect the license plate lamp electrical connector.
- Remove the grommets.
- Remove the 4 bolts.
- Release the 4 clips.
- Release the 4 clips.







14. Remove both rear lamp assemblies.
- Remove the 6 nuts.
- Disconnect the 2 electrical connectors.







15. Remove the luggage compartment lid wiring harness.
- Release the 8 wiring harness securing clips.







16. Remove the luggage compartment lid decals.
- Wipe the luggage compartment lid to remove all traces of the adhesive.
- Polish the area to remove any bleaching.

Installation

1. Install the luggage compartment lid decal.
- Remove the backing from the decal.
- Remove the protective cover from the decal.
- Secure the decal to the luggage compartment lid.
- Position and align the decal on the luggage compartment lid.

2. Install the luggage compartment lid wiring harness.
3. Install both of the rear lamp assemblies.
- Install the nuts.
- Connect the electrical connectors.

4. Install the luggage compartment lid finisher.
- Connect the license plate lamp electrical connector.
- Secure the 4 clips.
- Install the 4 bolts.
- Install the grommets.
- Install the license plate lamp housing.

5. Install the wiring harness.
- Install the 2 bolts.
- Secure in the 9 clips.
- Connect the electrical connectors.

6. Install the luggage compartment lid lock cylinder.
- Tighten the Torx bolt to 3 Nm (2 lb.ft).

7. Install the bump stops.
8. Install the luggage compartment lid latch assembly.
- Install the 3 Torx bolts.
- Connect the electrical connector.
- Tighten the bolts to 20 Nm (15 lb.ft).

9. Connect the luggage compartment lid latch operating cable to the lock cylinder.
- Install the cable.

10. With assistance, install the luggage compartment lid.
- Install the 4 nuts.
- Tighten the nuts to 23 Nm (17 lb.ft).

11. Install the luggage compartment lid support struts.
- Secure in the 2 clips.

12. Install the wiring harness.
- Secure the electrical harness with the clip.

13. Connect the 4 electrical connectors.
14. Install the luggage compartment lid trim panel.
