Keyless Entry Module: Service and Repair



Remote Keyless Entry (RKE) Module

Removal

NOTE: This module is installed on the inside of the RH A-pillar above the footwell and does not change with the hand of drive.

1. Remove the cover and disconnect the battery ground cable.

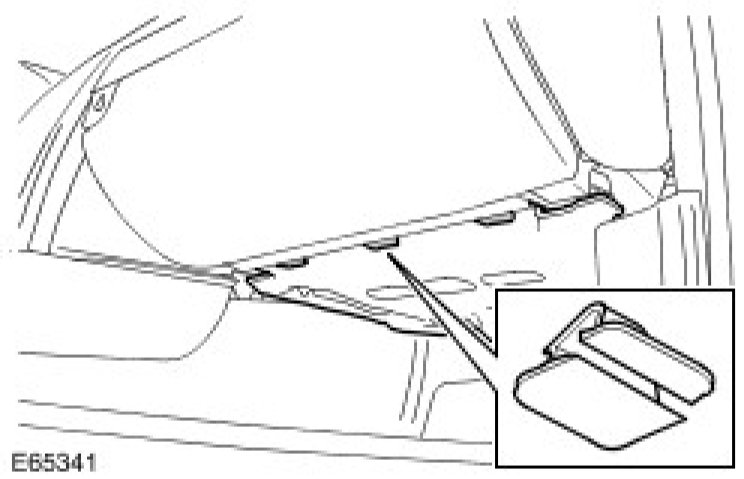

2. Remove the RH side footwell trim panel.
- Remove the 3 clips.

CAUTION: Removal of the clips is a delicate procedure, damage will occur if any force is used.

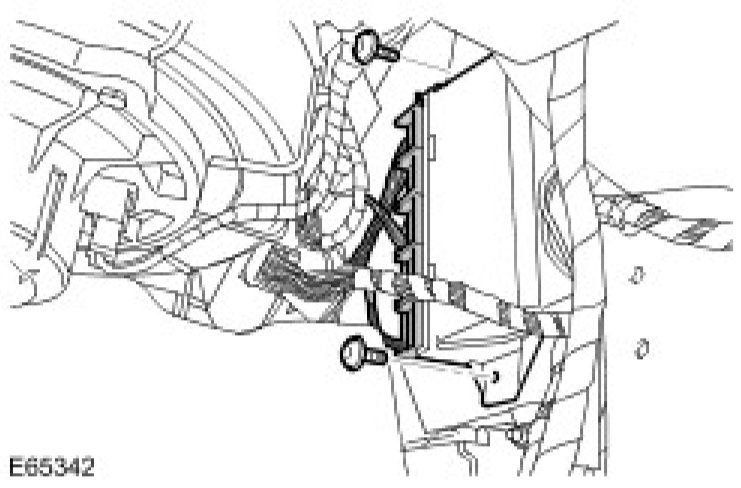

3. Remove the keyless entry module.
- Remove the 2 Torx screws.
- Disconnect the 5 electrical connectors.







Installation
1. Install the keyless entry module.
- Connect the electrical connectors.
- Install the screws.
2. Install the RH side footwell trim panel.
- Carefully secure the clips.
3. Connect the battery ground cable and install the cover.
4. Connect WDS to the vehicle and configure a new module.
