U3000
>>
U3000-04
>>
Digital Audio Broadcast Module (DABM)
Digital Audio Broadcast Module (DABM)

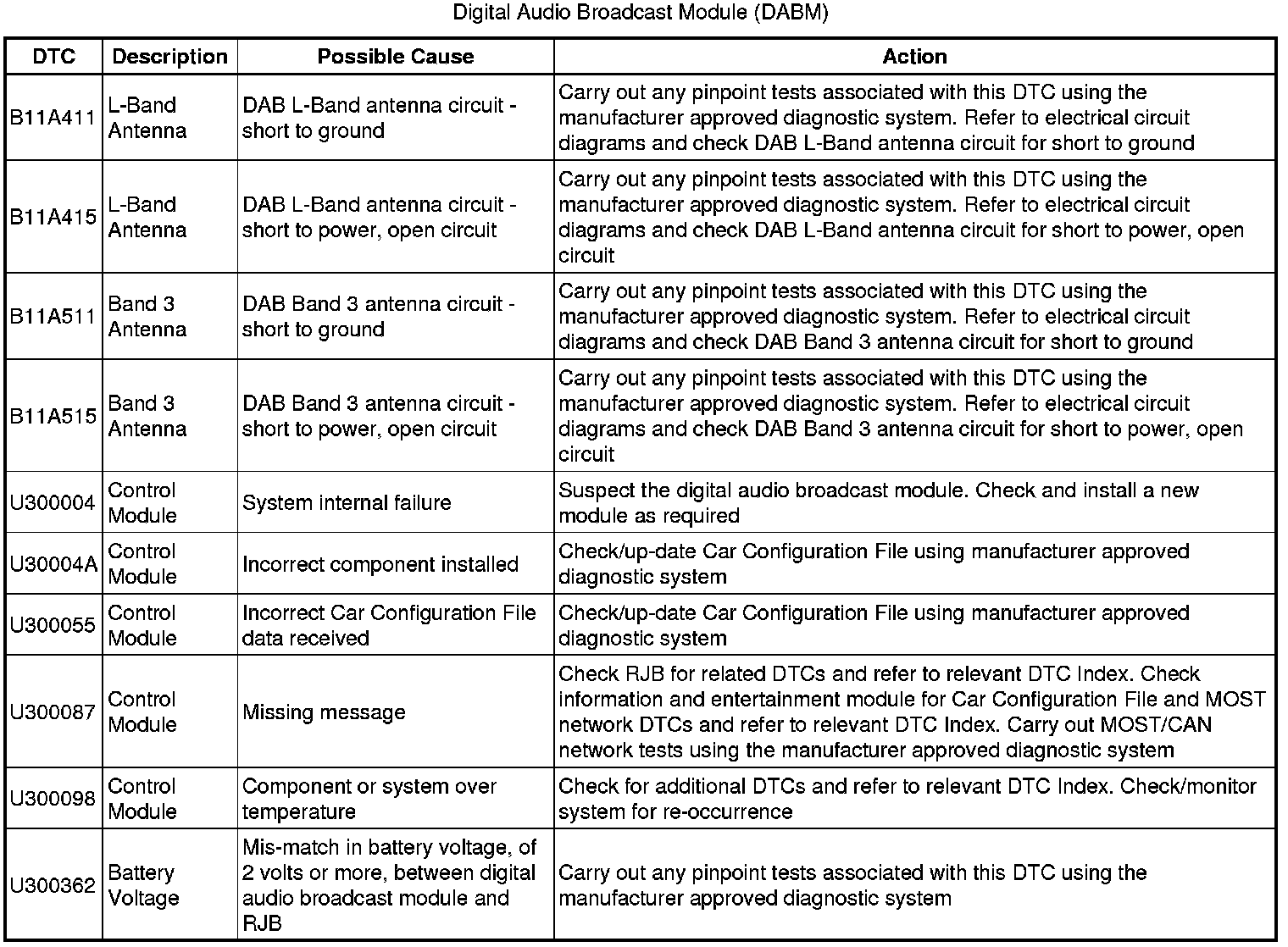

Diagnostic Trouble Code (DTC) Index
Digital Audio Broadcast Module (DABM)
