Entertainment System Control Module: Locations
Information and Entertainment Control Module

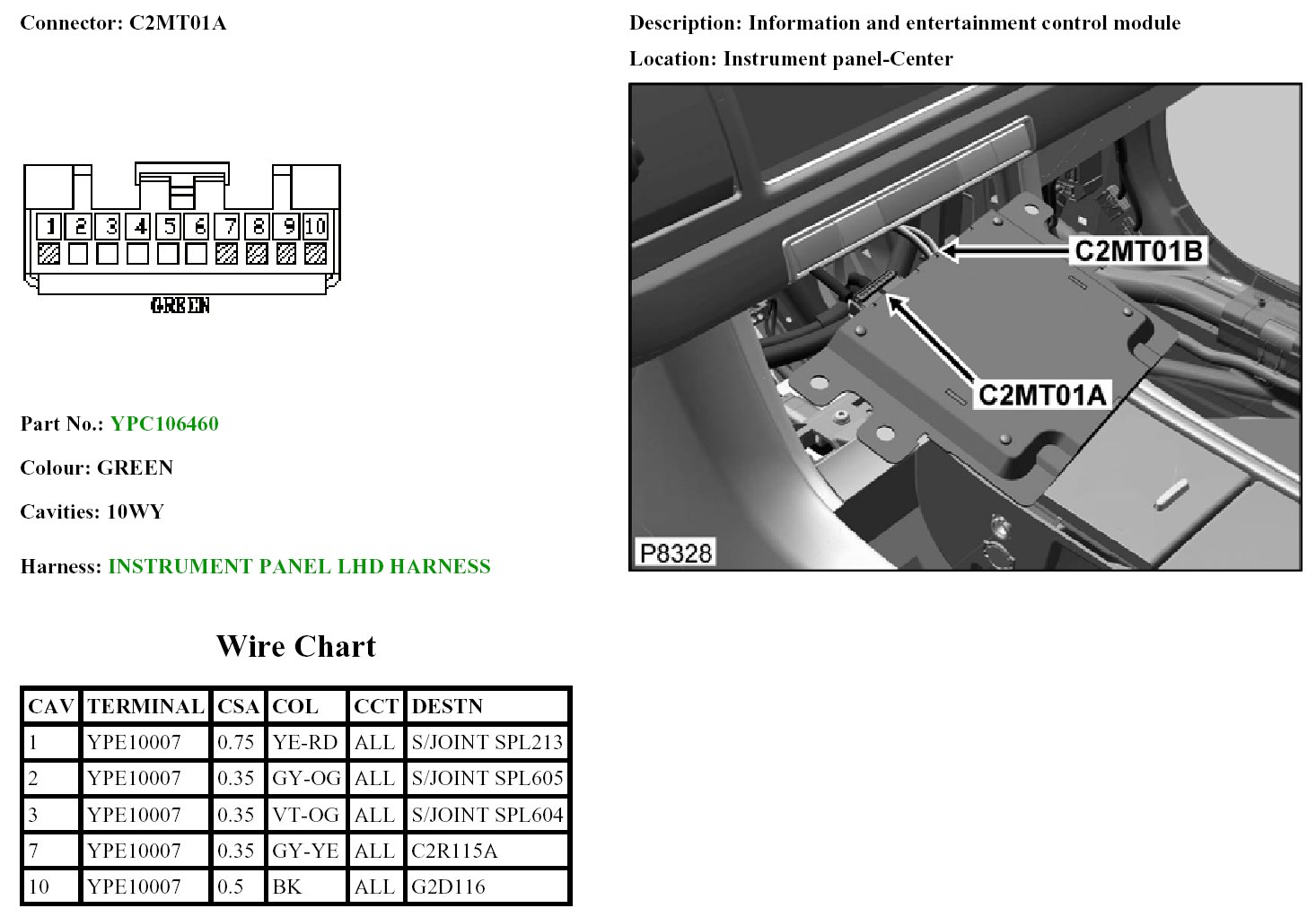

C2MT01A:

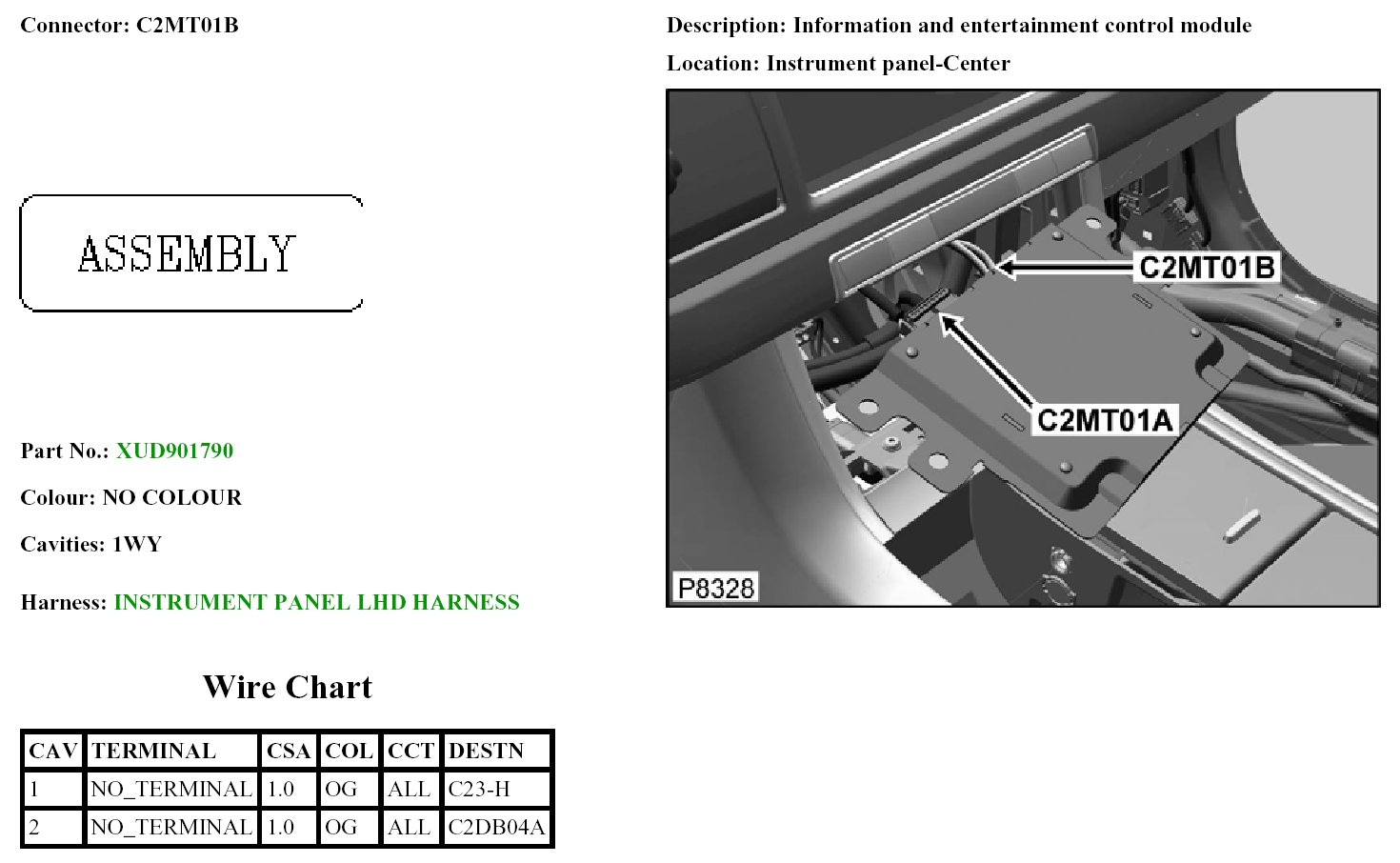

C2MT01B:
