Seats: Locations





Seats

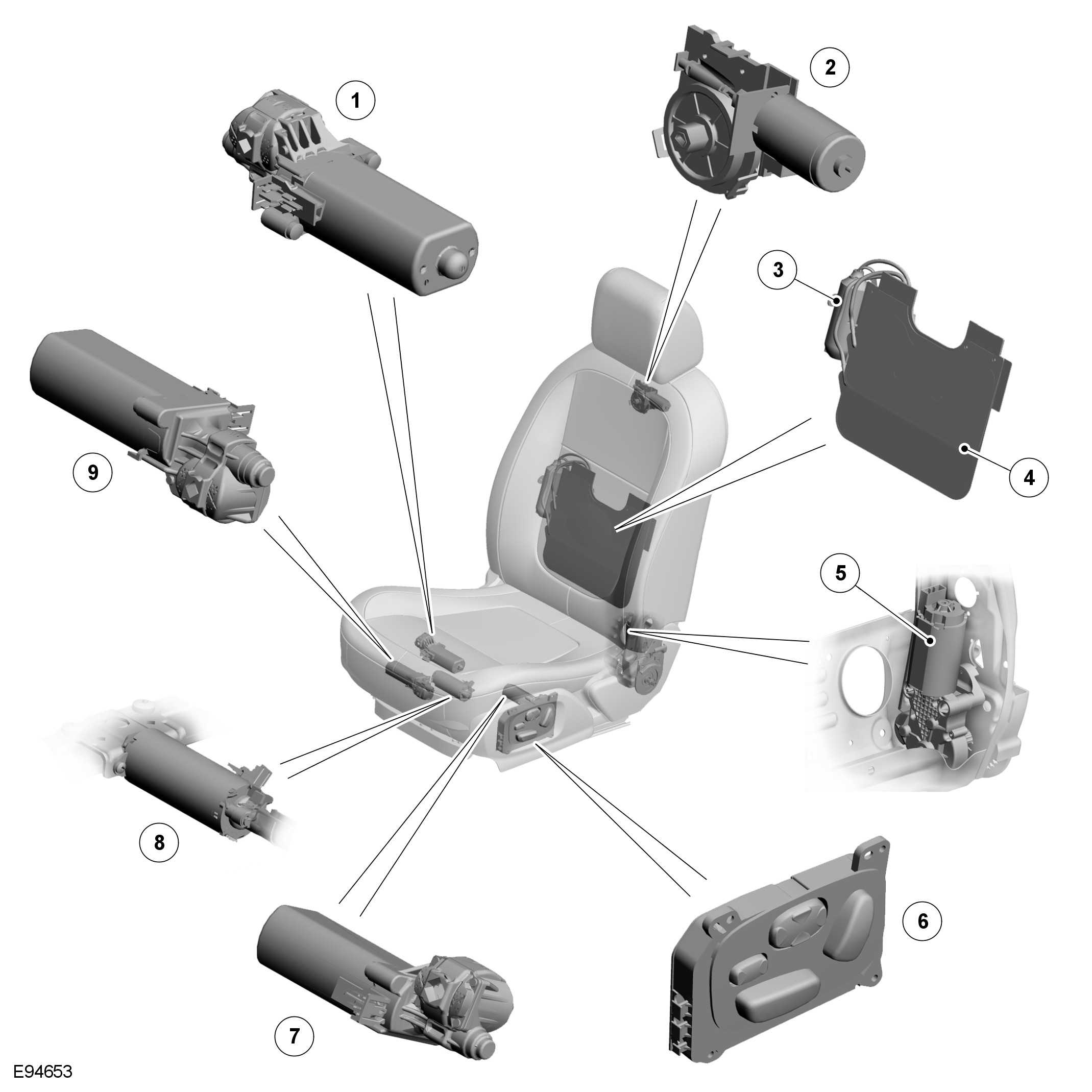

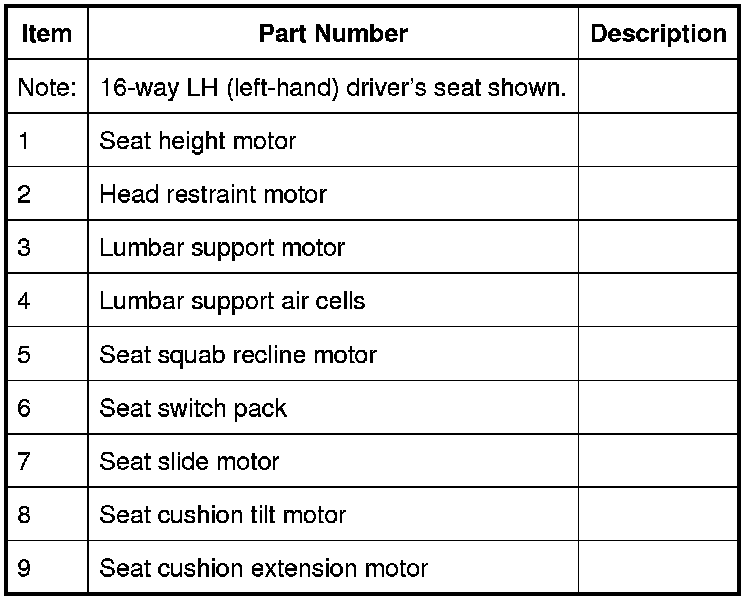

COMPONENT LOCATION - MOVEMENT

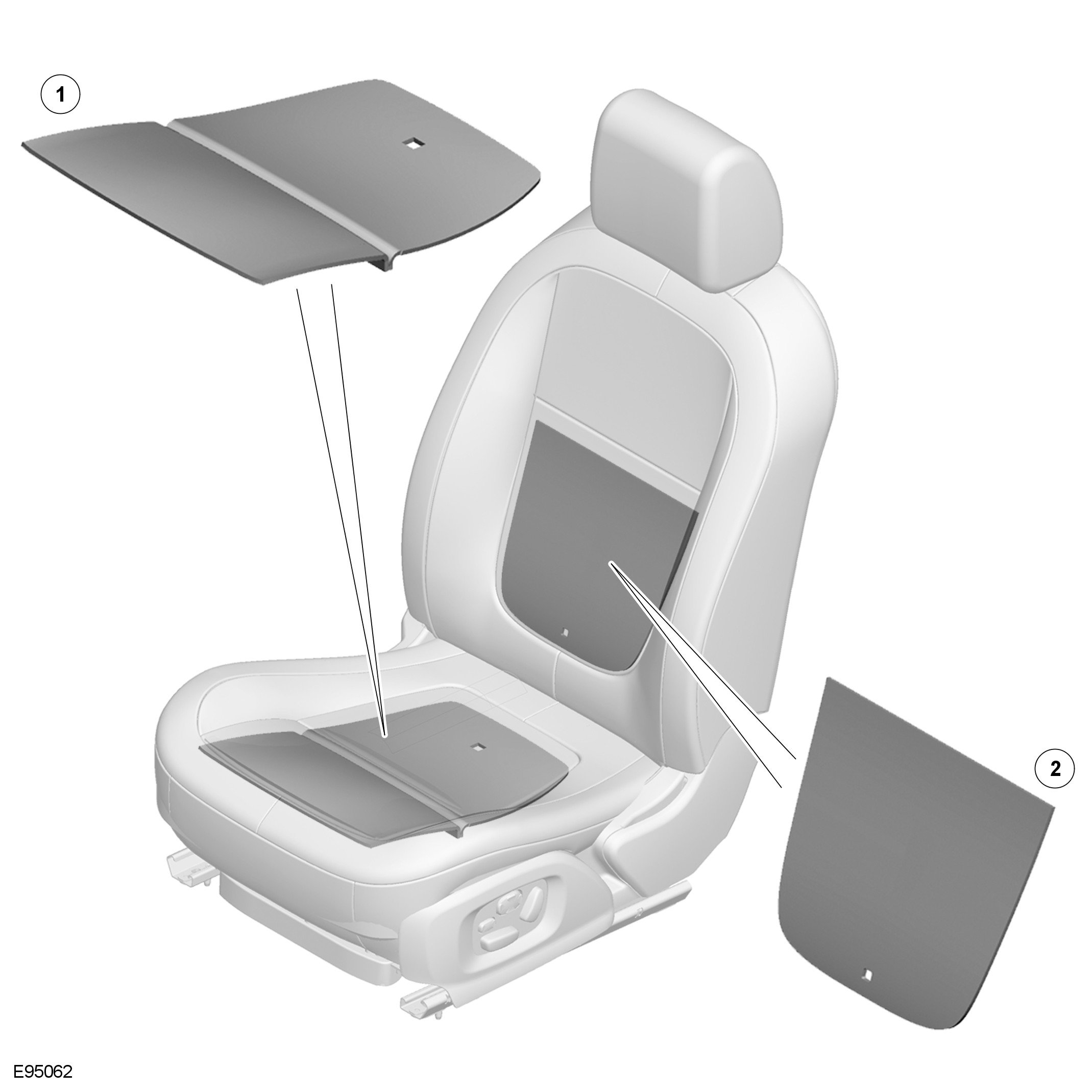

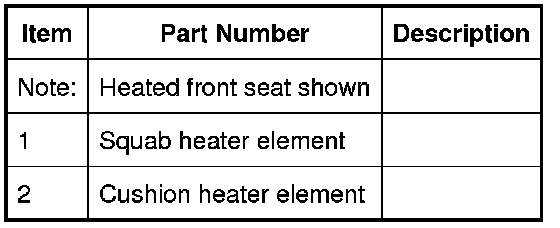

COMPONENT LOCATION - TEMPERATURE - HEATED SEATS - SHEET 1 OF 2

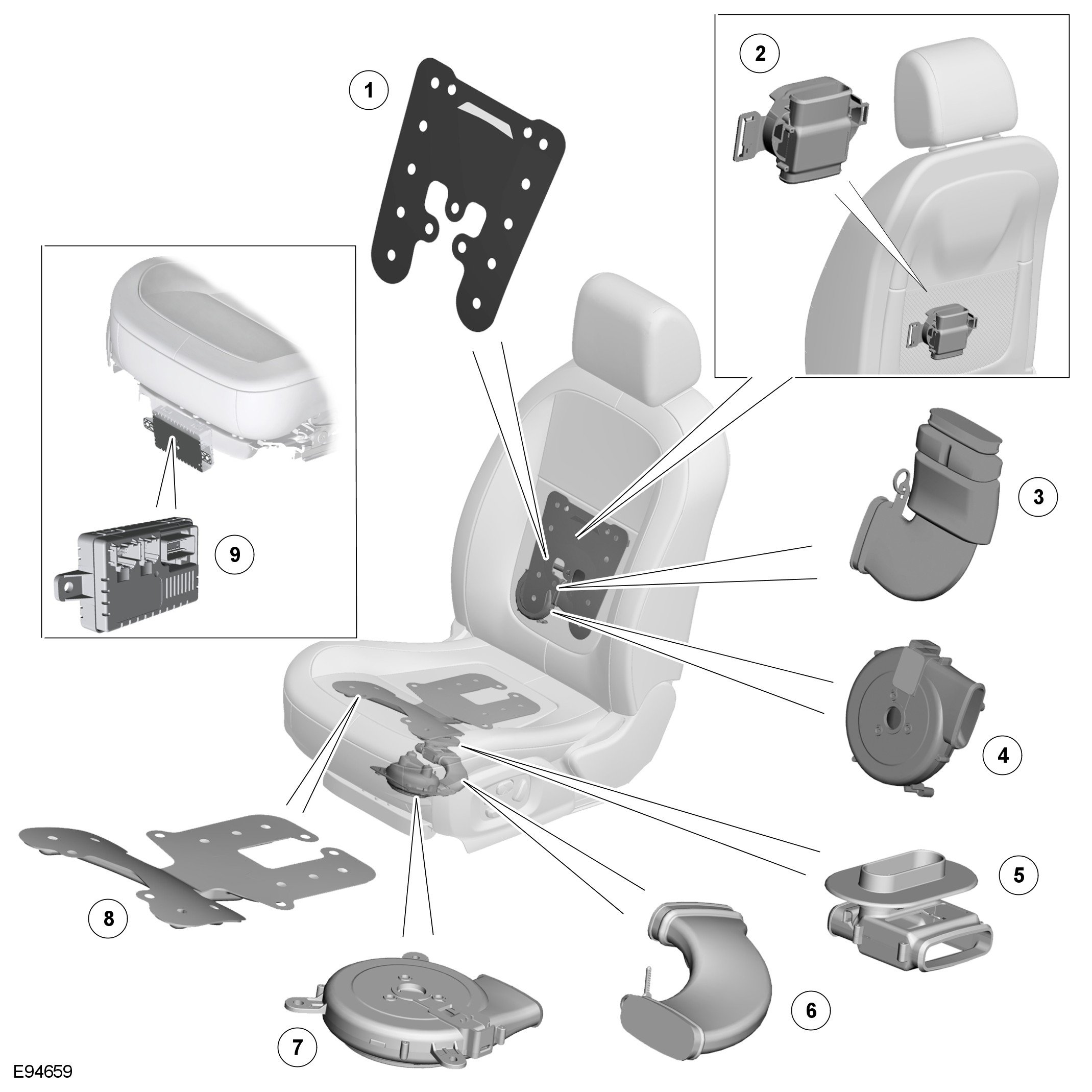

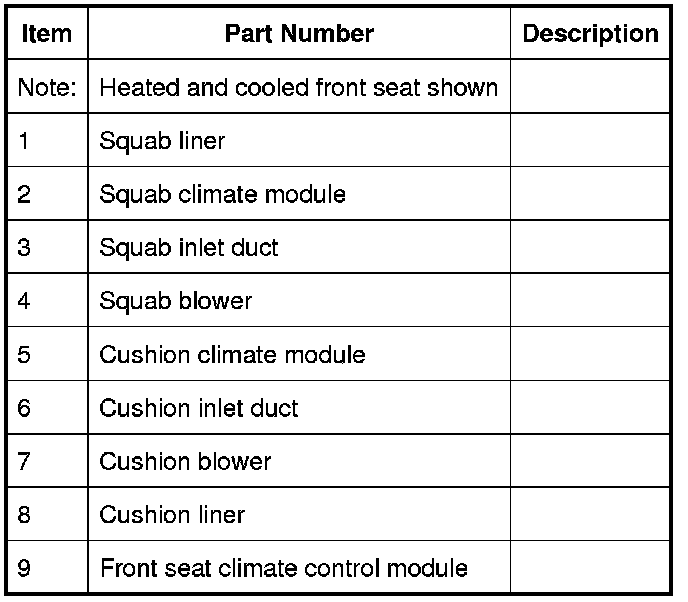

COMPONENT LOCATION - TEMPERATURE - CLIMATE SEATS - SHEET 2 OF 2
