Seat Temperature Control Module: Locations



Module-Climate-Controlled Seat

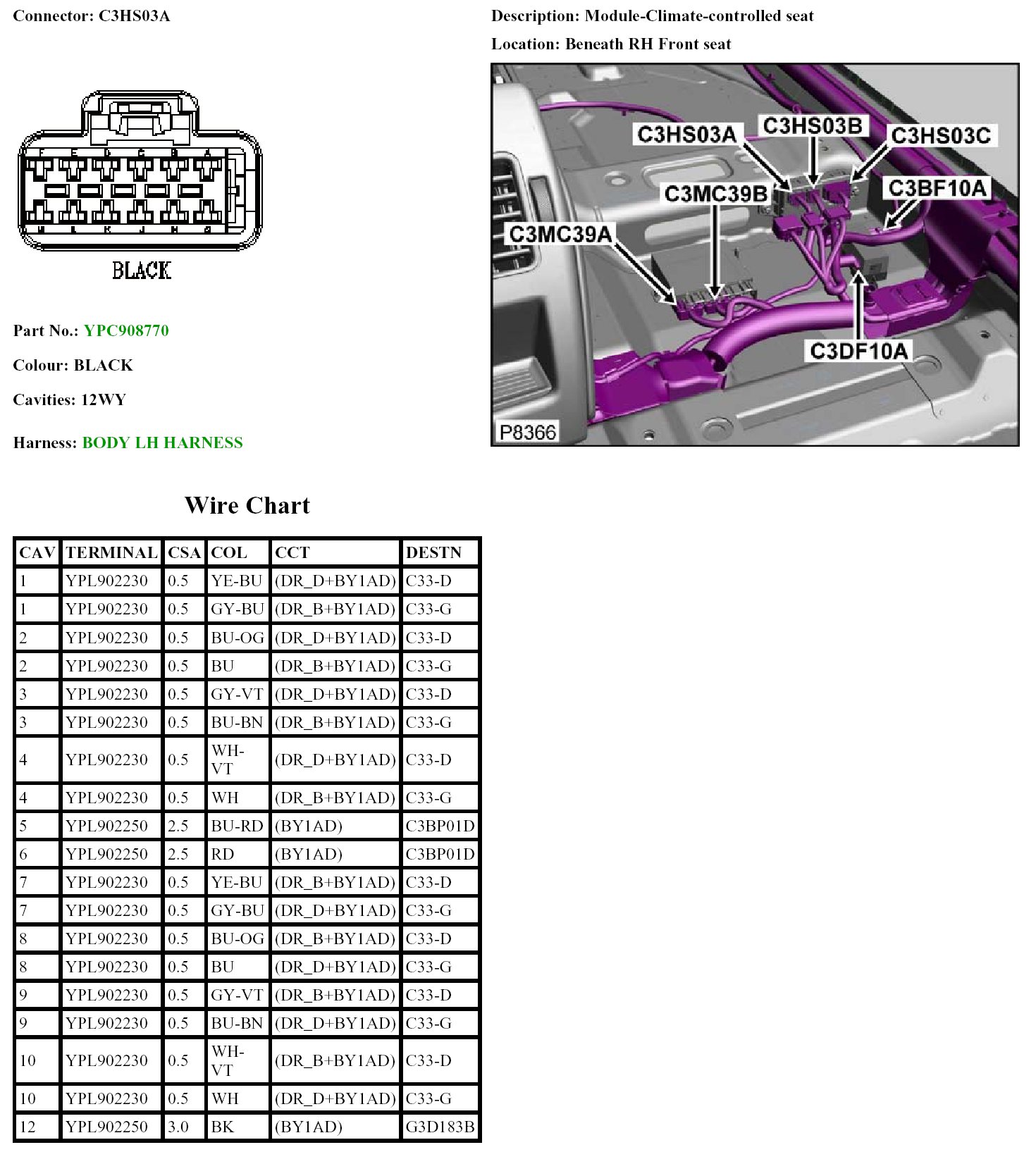

C3HS03A:

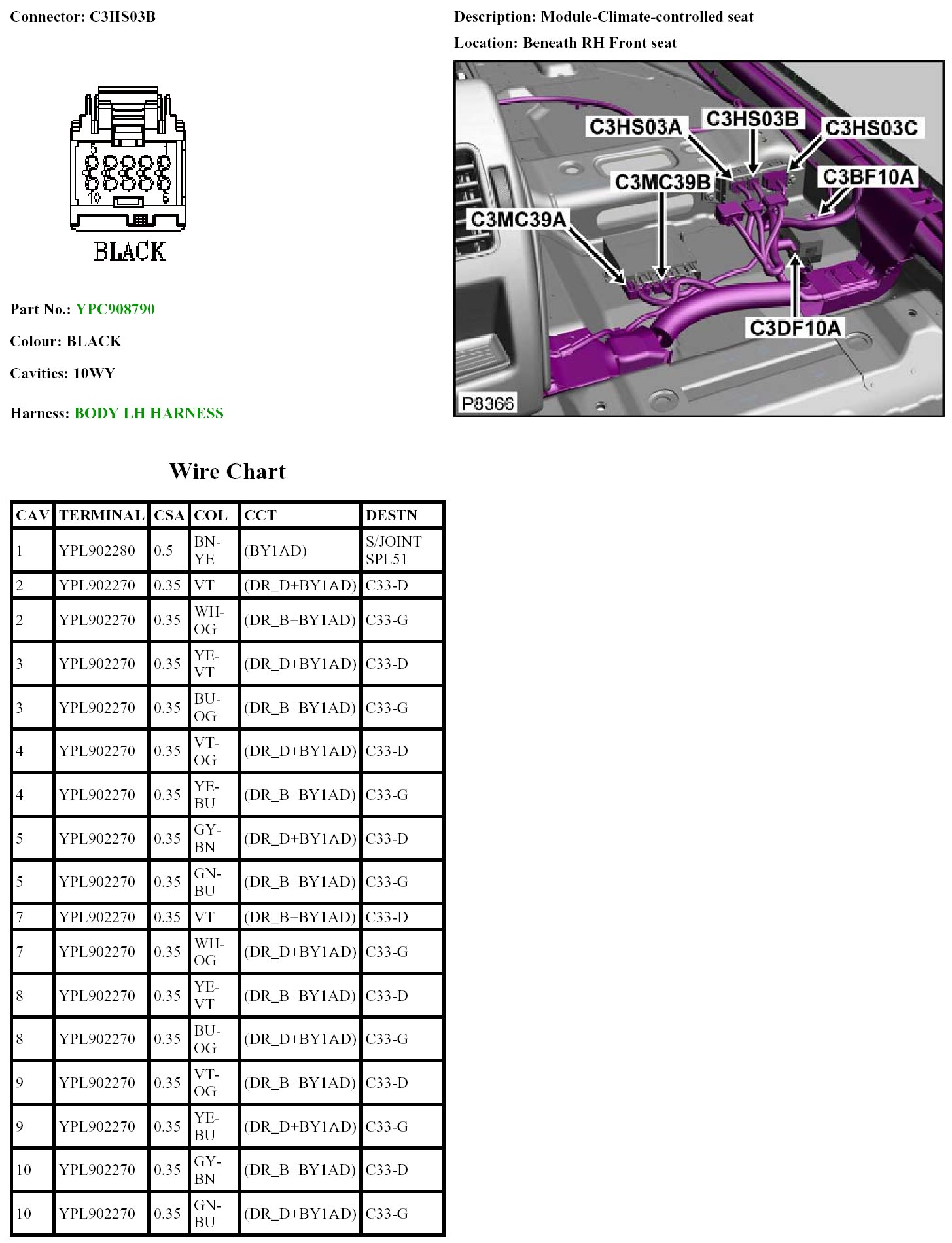

C3HS03B:

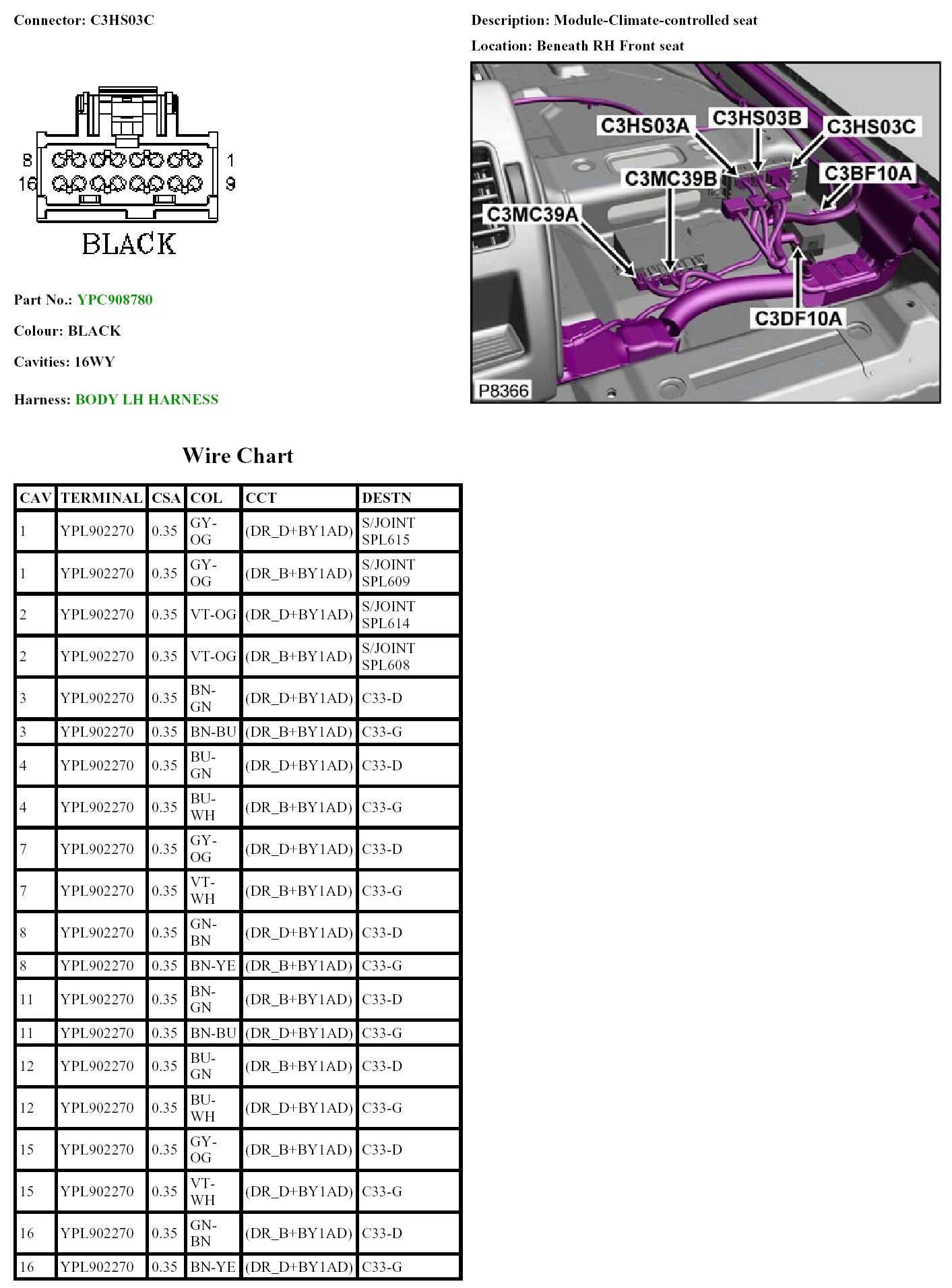

C3HS03C:
