Fluid Filter - A/T: Service and Repair

Fluid Pan, Gasket and Filter

Removal

All vehicles
1 Disconnect the battery ground cable. For additional information, refer to Battery Disconnect

Vehicles with diesel engine
2 Remove the air deflector. For additional information, refer to Air Deflector

All vehicles
3 Drain the transmission. For additional information, refer to Transmission Fluid Drain and Refill

Vehicles with diesel engine

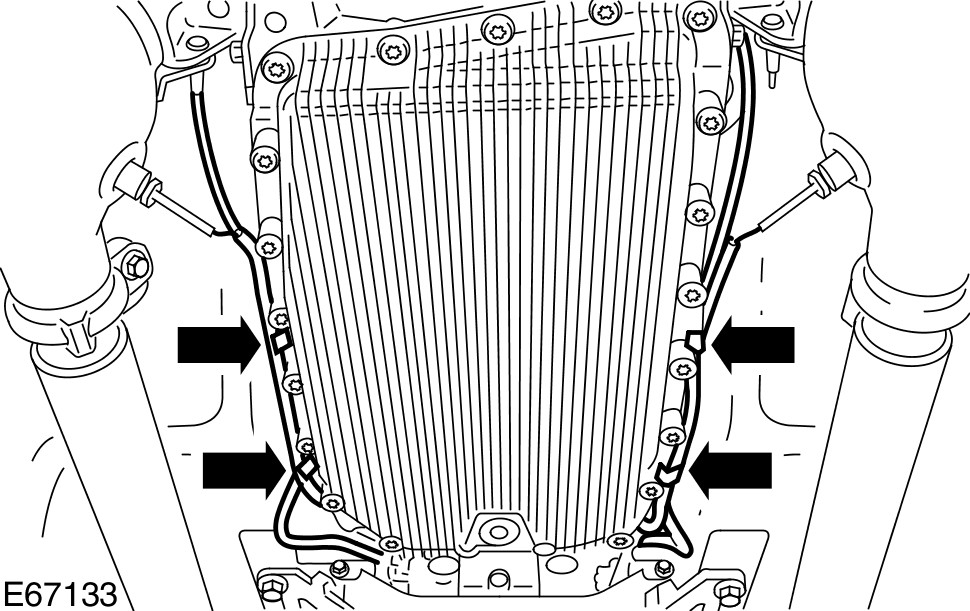

4 Detach the catalytic converter temperature sensor wiring harness from the fluid pan.

All vehicles




5
NOTE:
Discard the fluid pan, gasket and filter.

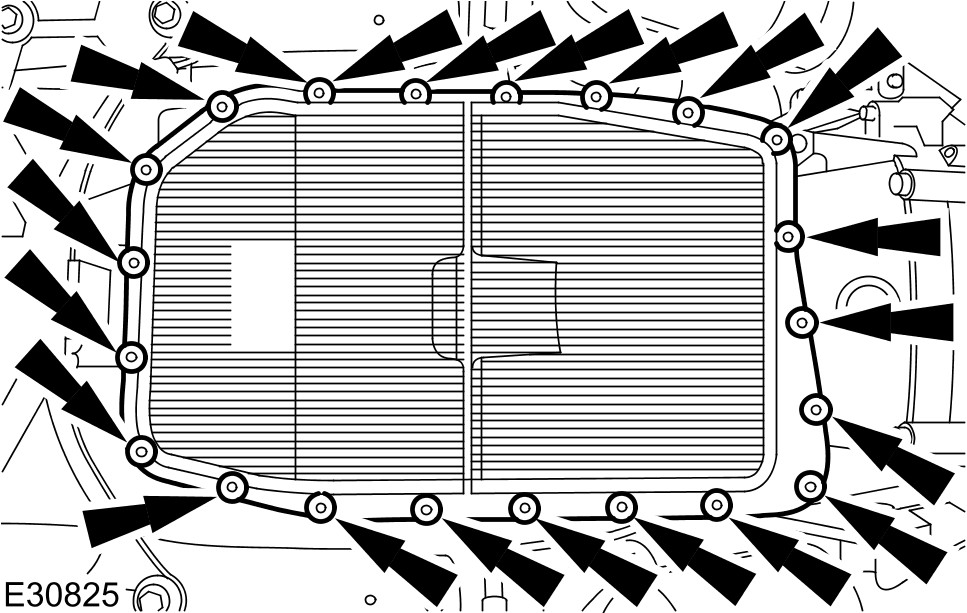

Remove the fluid pan, gasket and filter.
- Remove the retaining bolts.

Installation

All vehicles




1 Install the new fluid pan, gasket and filter.
- Tighten to 8 Nm.

Vehicles with diesel engine




2 Attach the catalytic converter temperature sensor wiring harness onto the fluid pan.

All vehicles
3 Fill the transmission. For additional information, refer to Transmission Fluid Drain and Refill

Vehicles with diesel engine
4 Install the air deflector. For additional information, refer to Air Deflector

All vehicles
5 Lower the vehicle.
6 Connect the battery ground cable. For additional information, refer to Battery Connect
