Home >> Jaguar >> 2009 >> XF (X250) V8-4.2L SC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Accessories and Optional Equipment >> Collision Avoidance Module >> Locations >> Module-Blind Spot Monitoring-RH

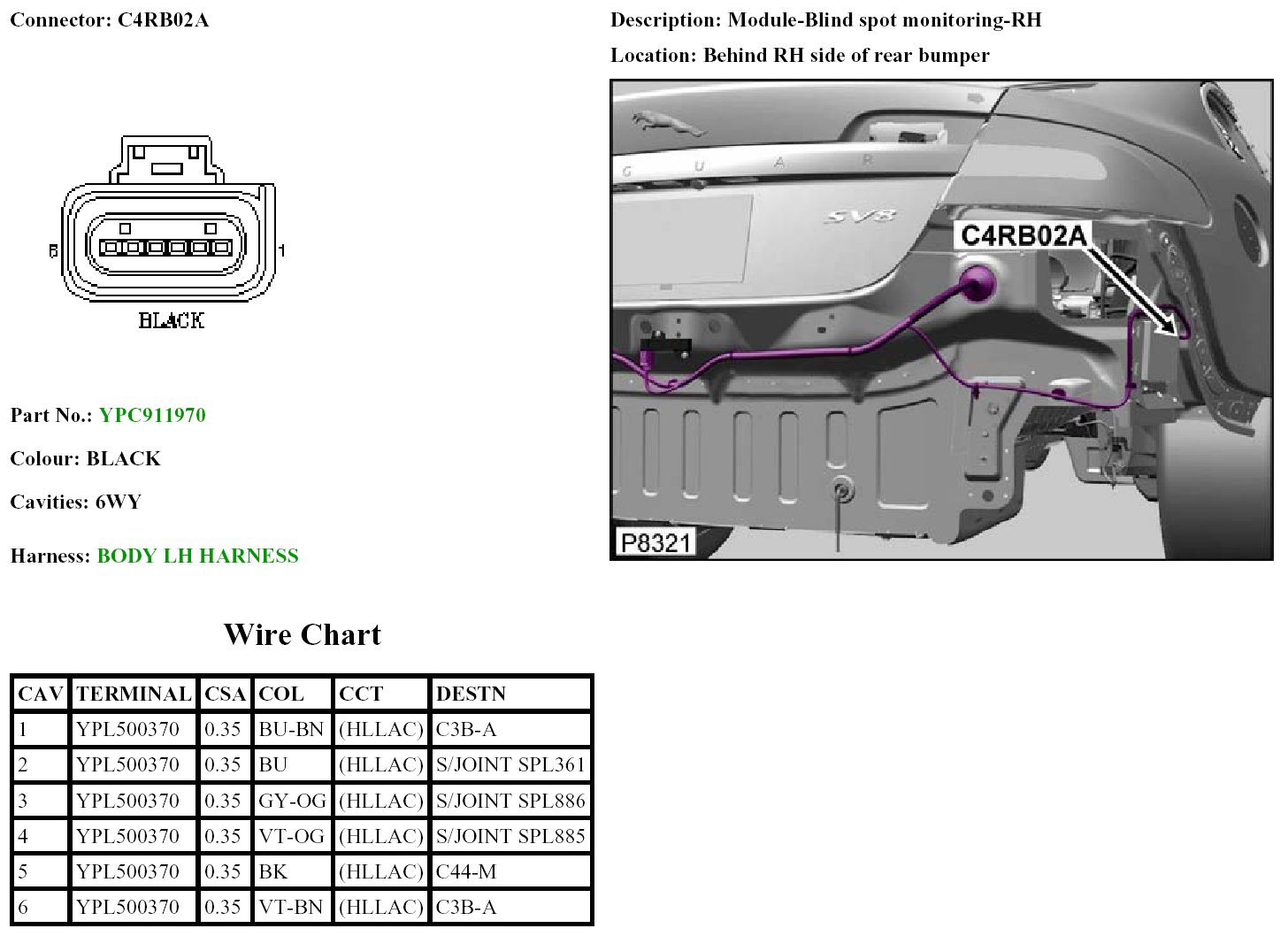

Module-Blind Spot Monitoring-RH



Module-Blind Spot Monitoring-RH


C4RB02A:
