Battery Replacement

Battery
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures
For additional information, refer to TAS Symbols Glossary
Removal

NOTE:
Removal steps in this procedure may contain installation details.
1 Obtain and record the audio unit preset radio frequencies.

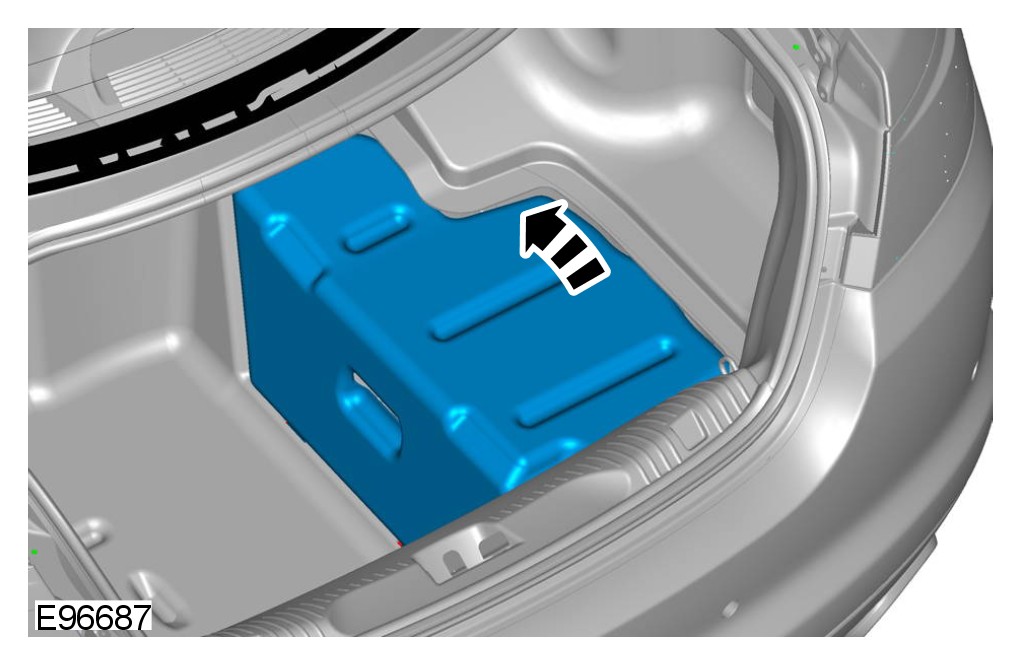

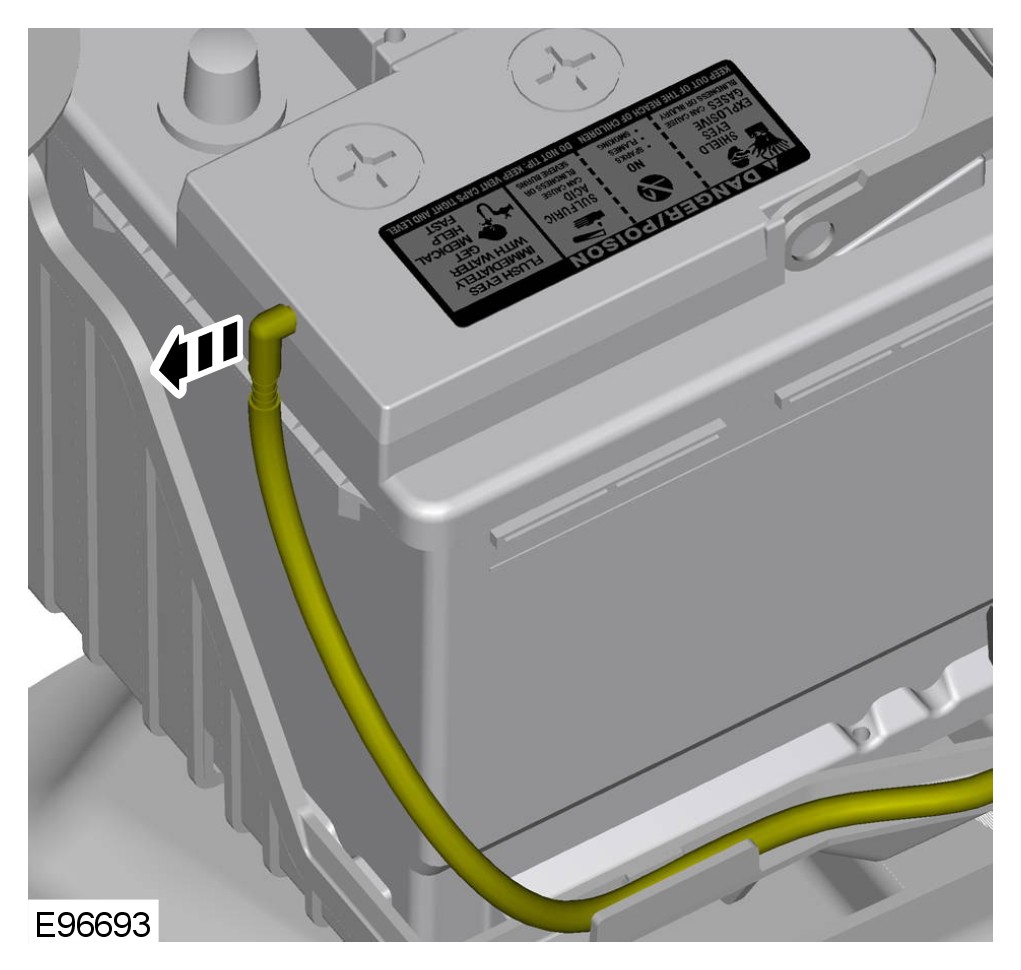

NOTE:
Where fitted.

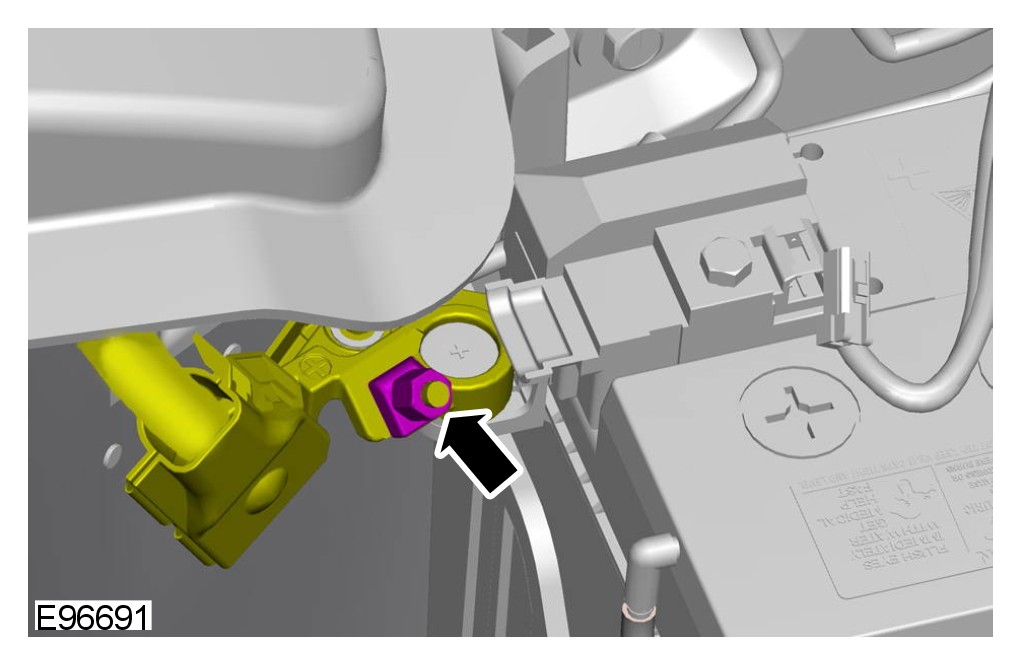

Torque to: 6 Nm





Torque to: 6 Nm

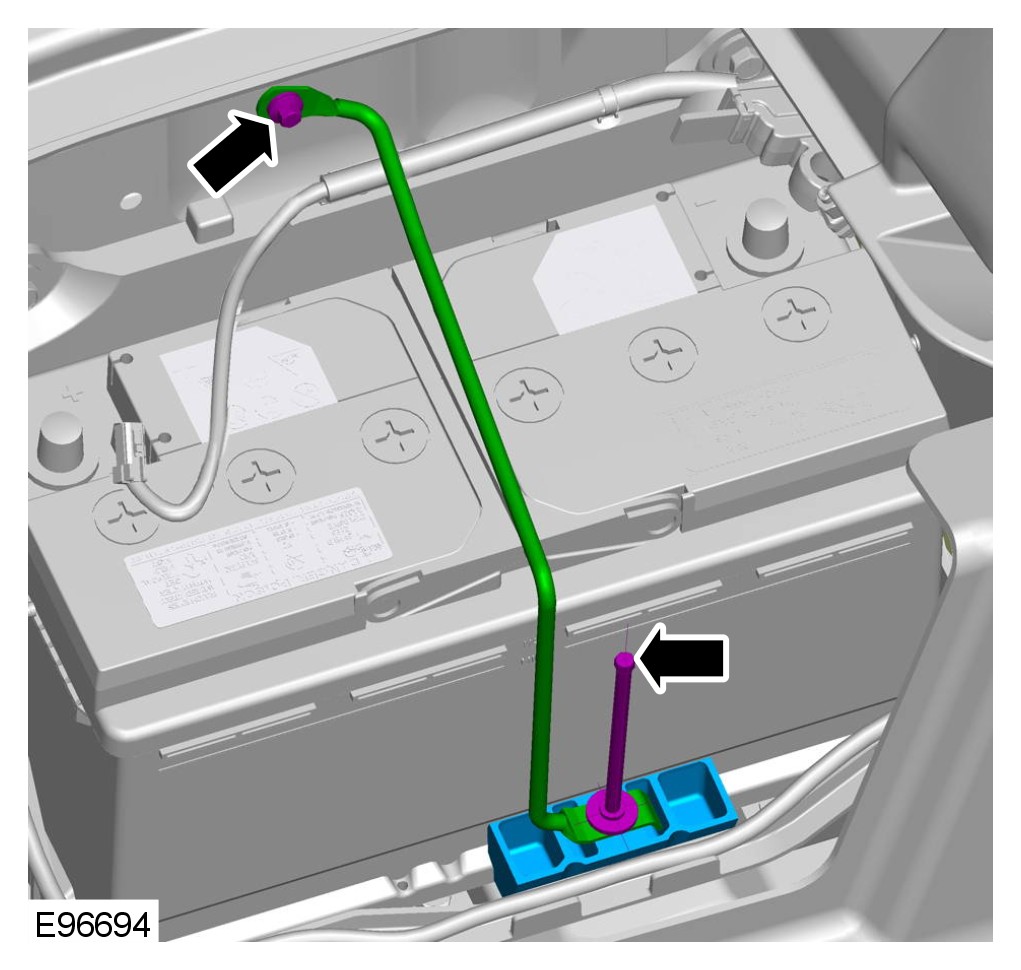

Torque to: 13 Nm





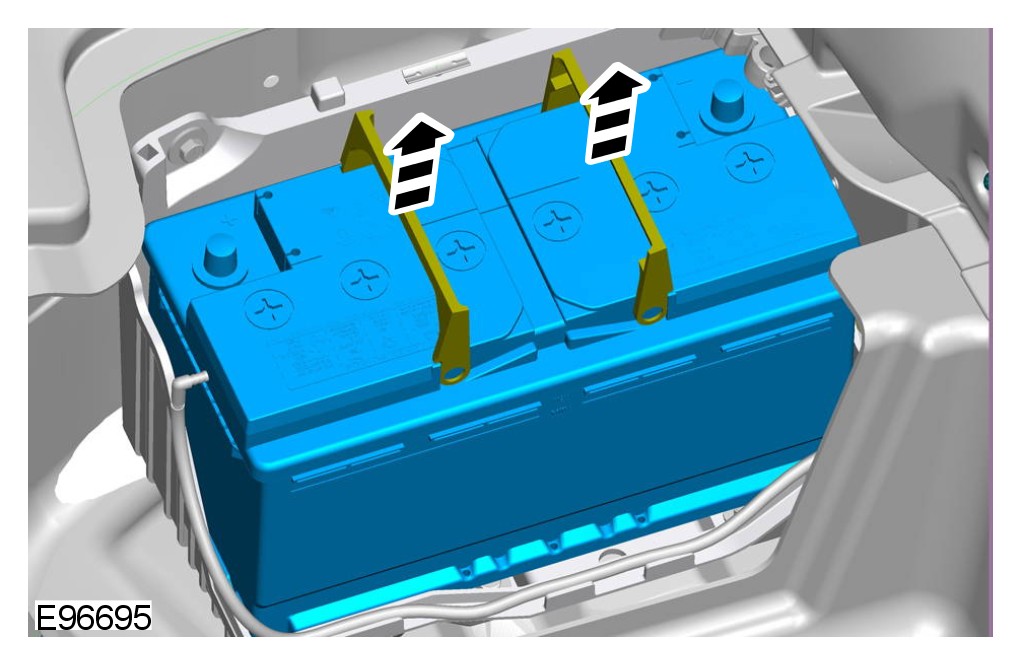

Installation
1 To install, reverse the removal procedure.

NOTE:
This step is only necessary when installing a new component.
2 Using the Jaguar approved diagnostic equipment, reset the battery monitoring system.
For additional information, refer to Door Window Motor Initialization Testing and Inspection
3 Enter the audio unit preset radio frequencies.
4 Reset the clock to the correct time.
5 Start the engine and allow to idle until the engine reaches normal operating temperature.
6 Switch the engine off.
