Home
>>
Jaguar
>>
2009
>>
XK (X150) V8-4.2L SC
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Power Seat Control Module
>>
Locations
>>

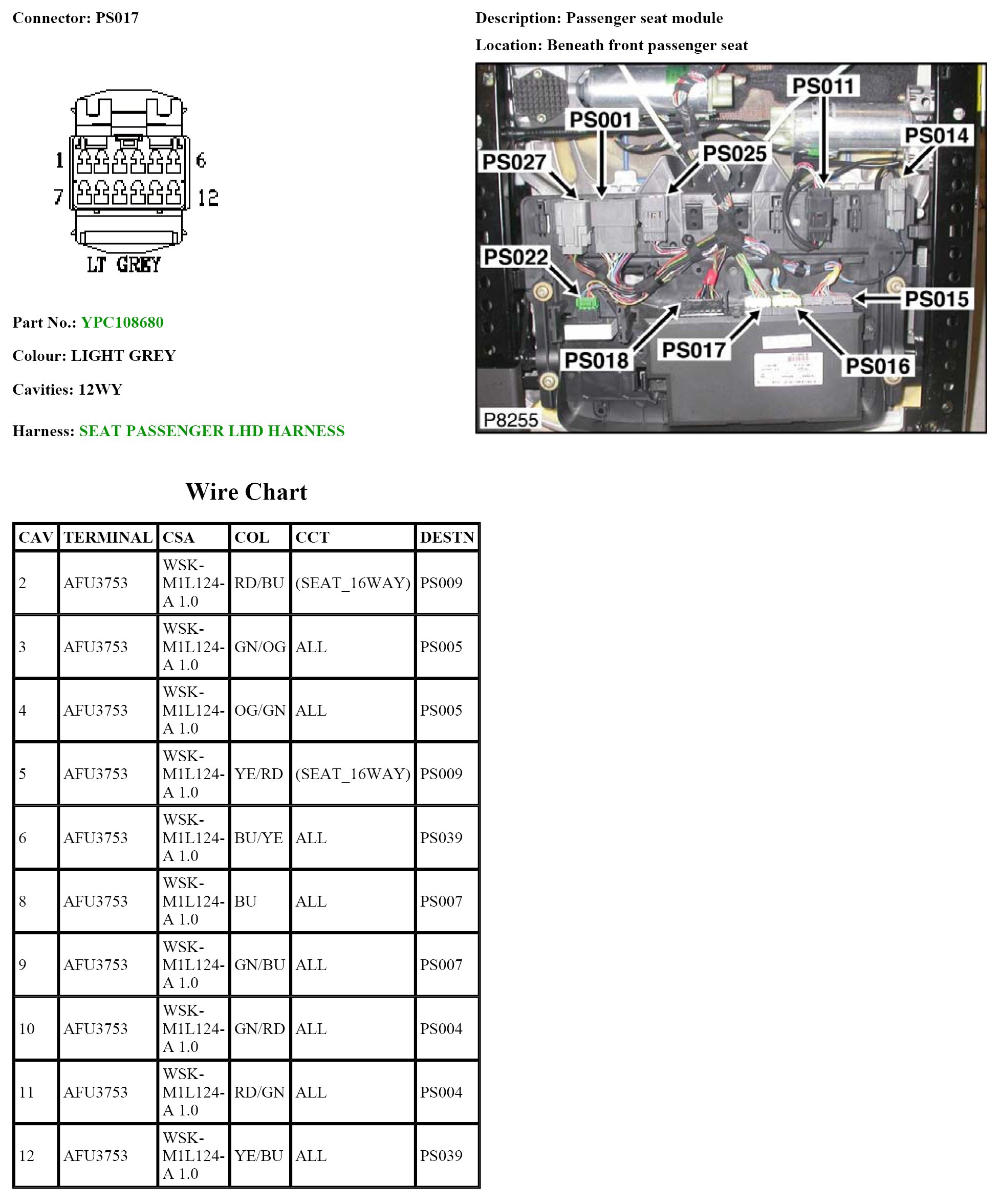

Passenger Seat Module
>>
PS017
PS017
PS017
PS017:
