Speed Control Module [Vehicles With: Adaptive Speed Control]

Speed Control Module

Removal

NOTE:
This component is mounted to the rear of the RH A-pillar.




1
NOTE:
LH illustration shown, RH is similar.
Remove the RH cowl side trim panel.

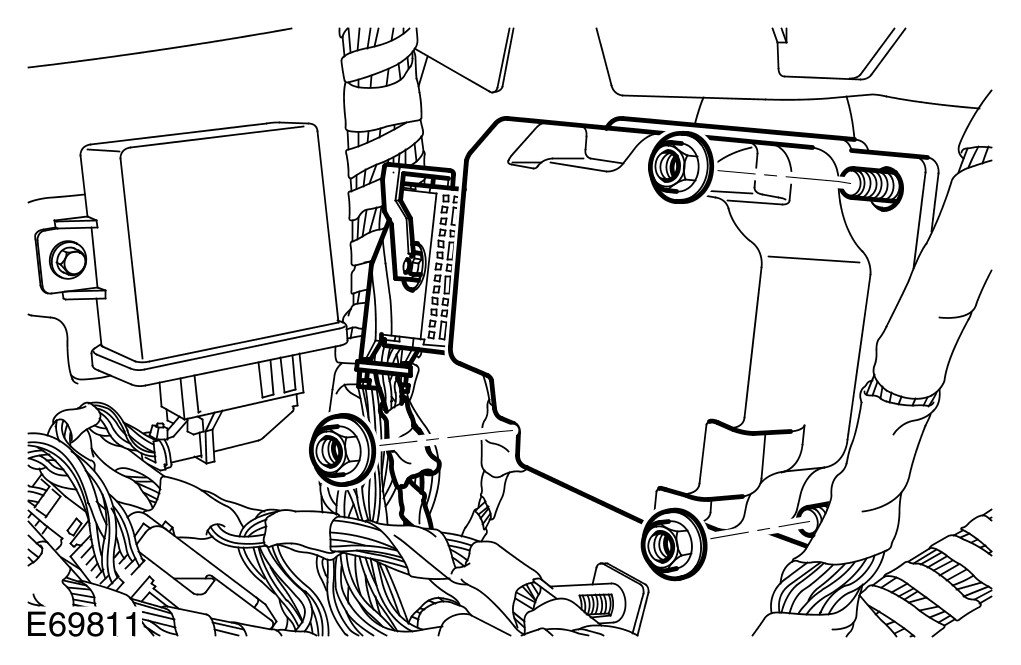

2 Remove the adaptive speed control module.

Installation
1 To install, reverse the removal procedure.
