Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2010
>>
XF (X250) V8-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C2CA29 - C2R115D
>>
C2PP11
C2PP11
C2PP11

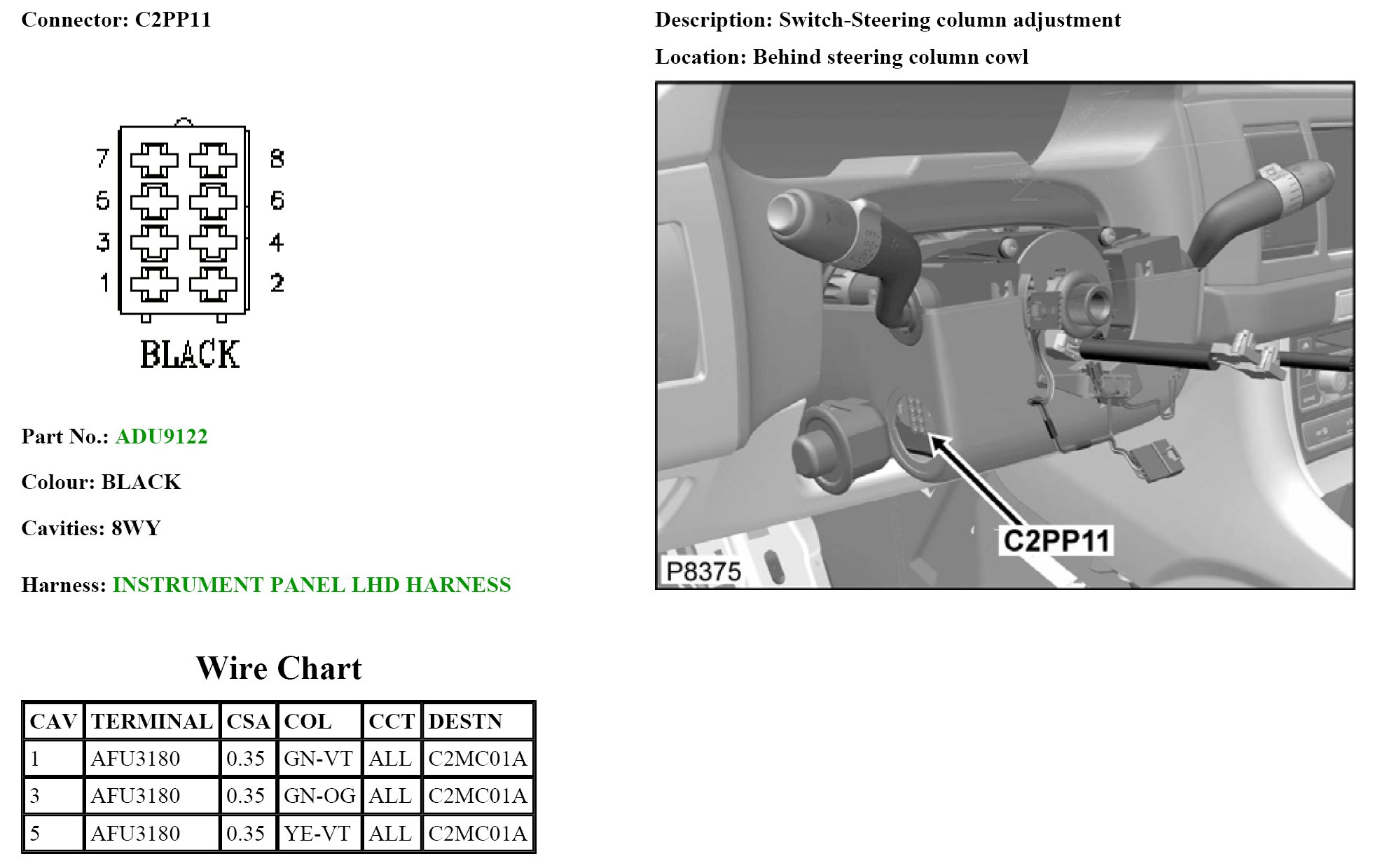

C2PP11:
