Compressor HVAC: Service and Repair






Air Conditioning (A/C) Compressor

Removal

NOTE:
Removal steps may contain installation details.
1 For additional information, refer to Battery Disconnect and Connect Battery Disconnect and Connect
2 For additional information, refer to Air Conditioning (A/C) System Recovery, Evacuation and Charging Air Conditioning (A/C) System Recovery, Evacuation and Charging
3
NOTE:
Make sure to support the vehicle with axle stands.
Raise and support the vehicle.

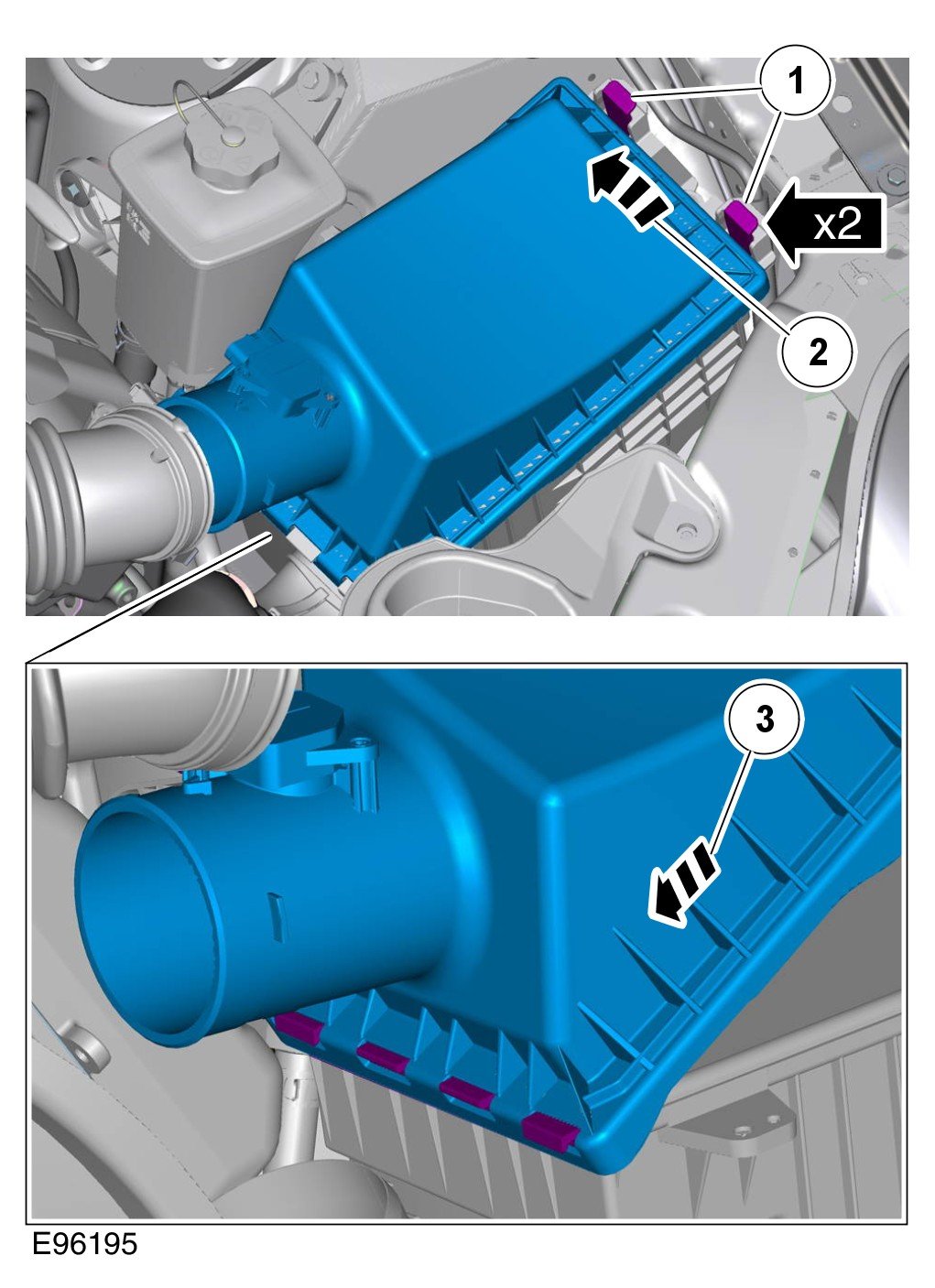

4

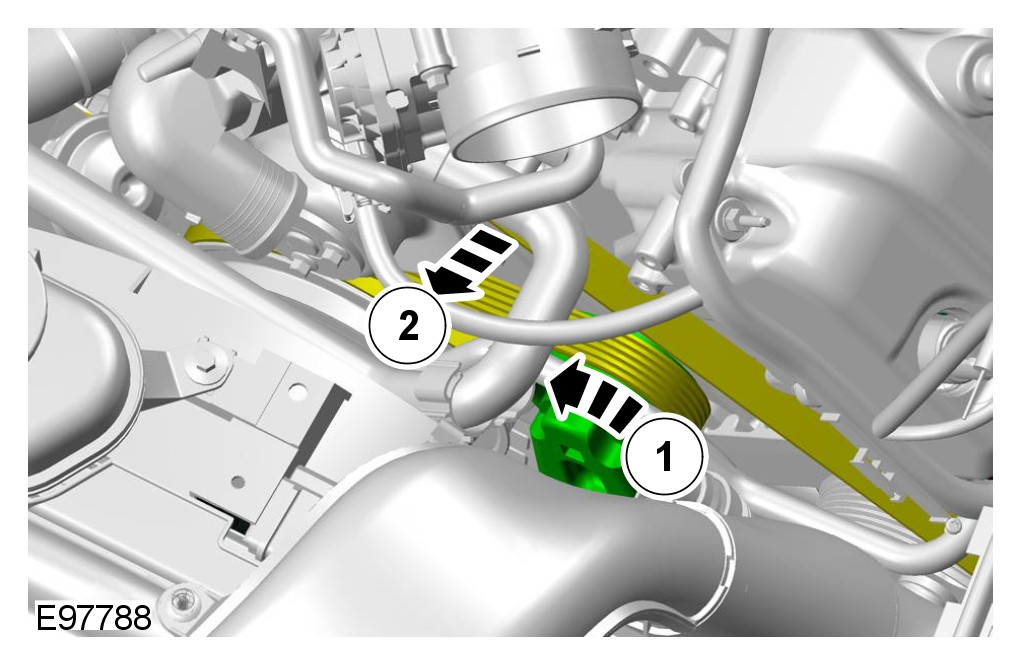

5
6 For additional information, refer to Engine Mount LH Engine Mount LH




7

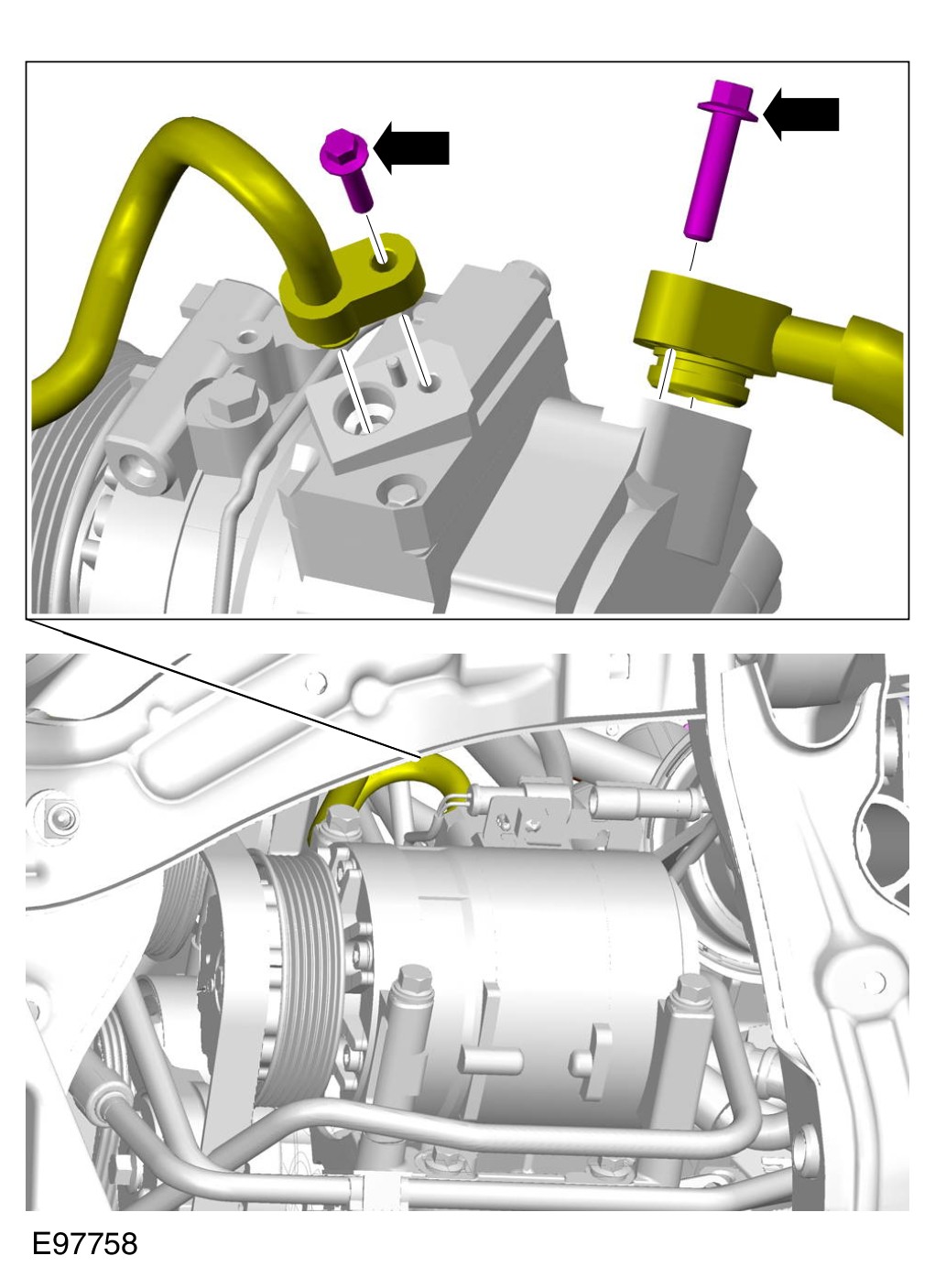

NOTE:
Make sure that all openings are sealed. Use new blanking caps.
TORQUE: 9 Nm

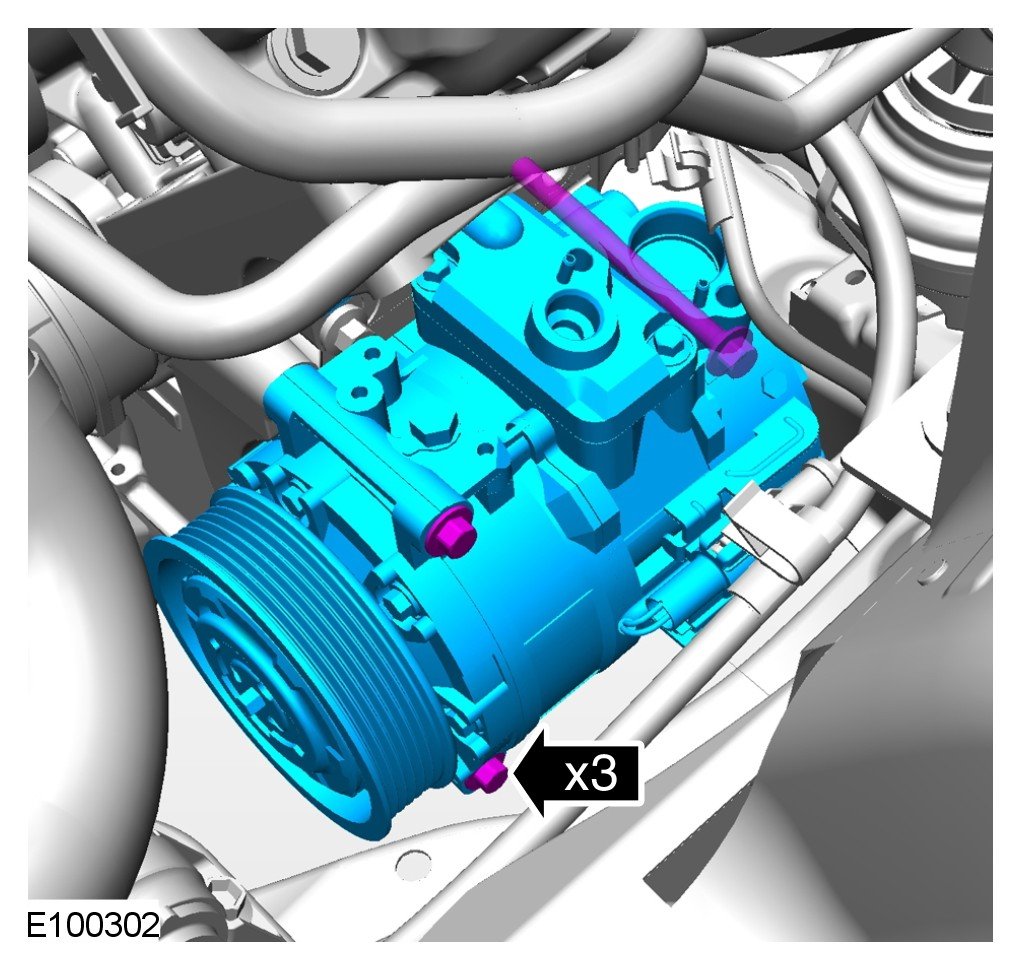

8 TORQUE: 25 Nm

Installation
1 To install, reverse the removal procedure.
