Camshaft Position (CMP) Sensor RH






Camshaft Position (CMP) Sensor RH

Removal
1 Disconnect the battery ground cable. For additional information, refer to Battery Disconnect and Connect Battery Disconnect and Connect
2 Remove the engine cover. For additional information, refer to Engine Cover - 4.2L, Vehicles Without: Supercharger Service and Repair

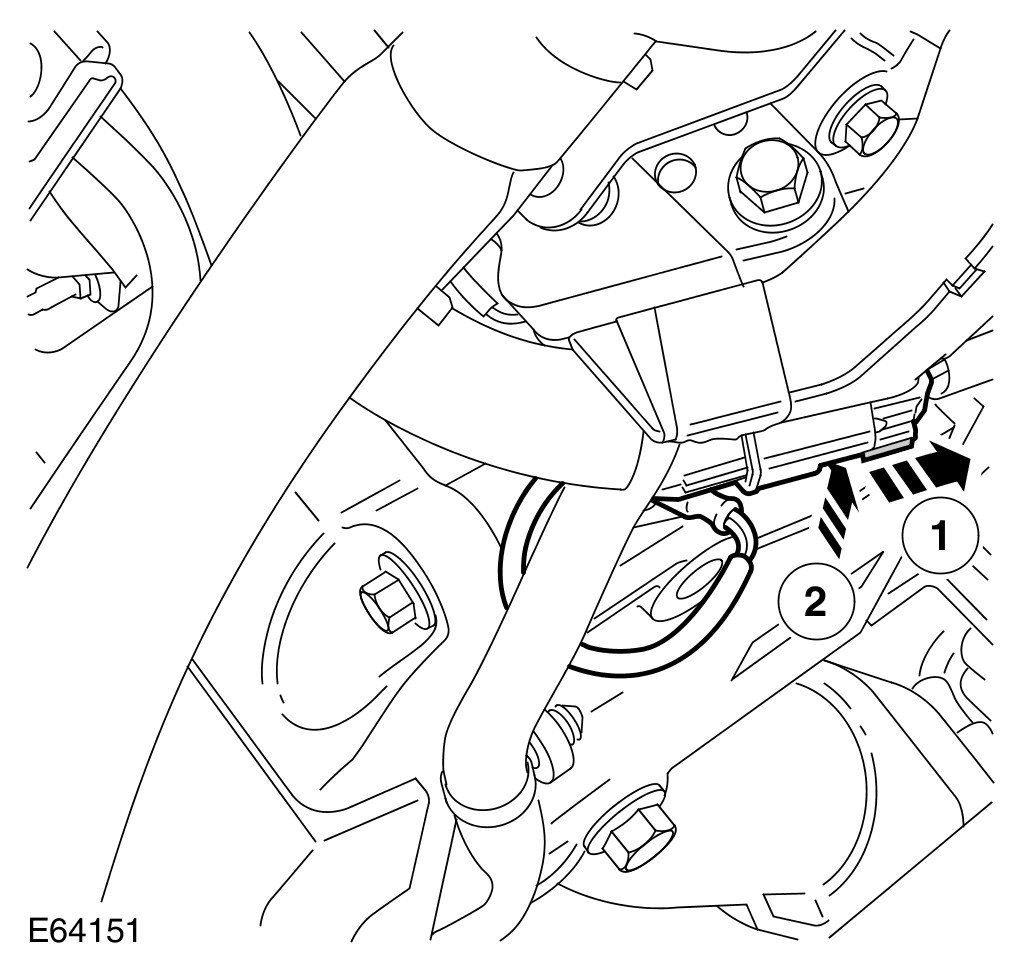

3 Disconnect the camshaft position (CMP) sensor electrical connector.

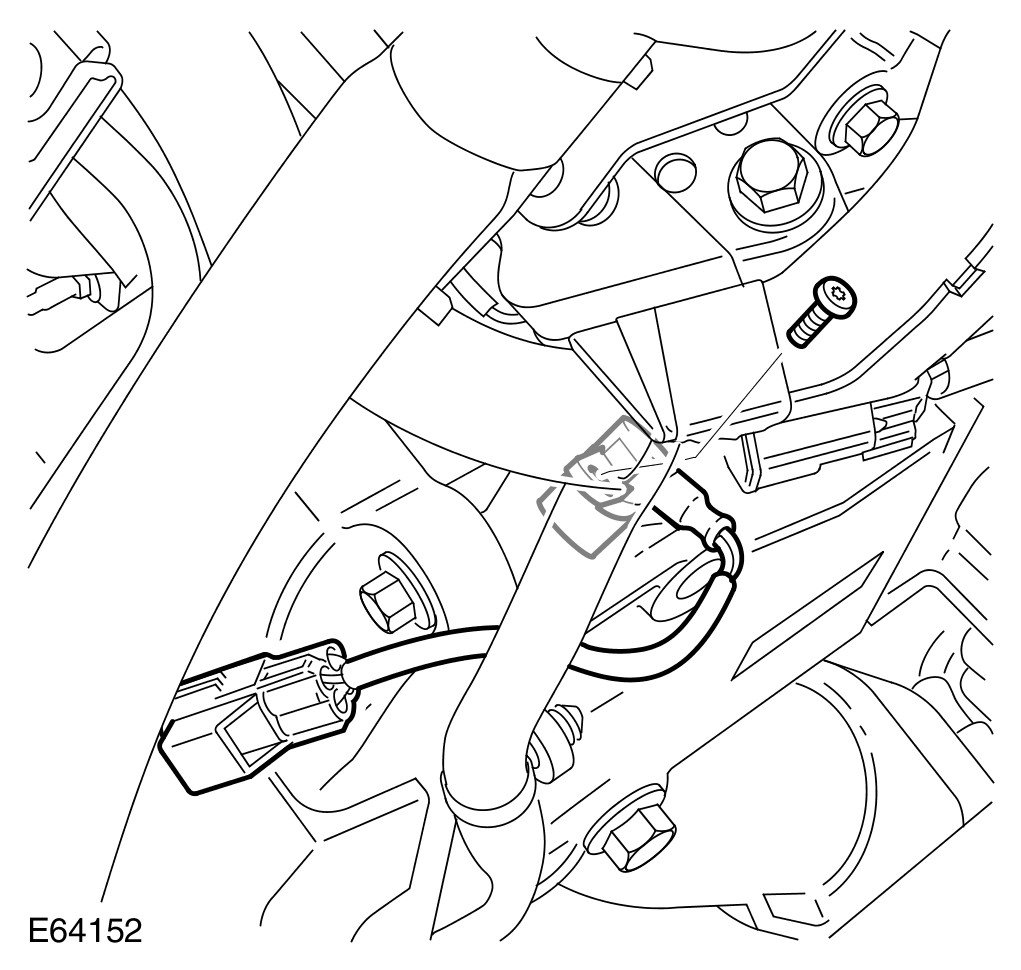

4 Remove the CMP sensor.
- Remove and discard the O-ring seals.

Installation
1 To install, reverse the removal procedure.




2 Tighten to 7 Nm.
- Install the new O-ring seals.
