Knock Sensor: Service and Repair
Knock Sensor (KS)Removal 1
Remove the intake manifold assembly. For additional information, refer to Intake Manifold
Service and Repair 2

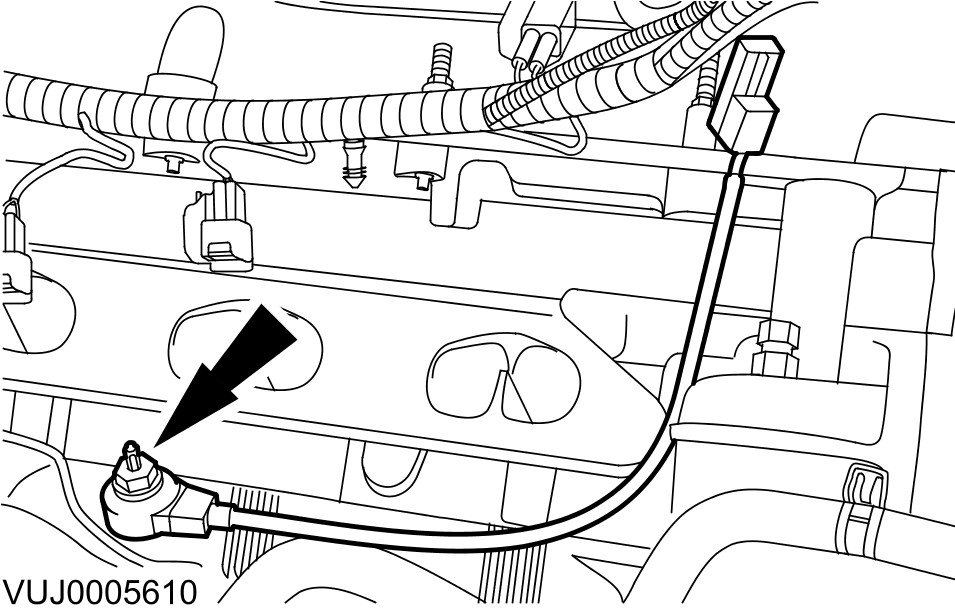

NOTE: LH illustration shown, RH is similar.
Remove the
knock sensor.
-
Remove the
knock sensor.
Installation 1
NOTE: LH illustration shown, RH is similar.
To install, reverse the removal procedure.
-
Tighten to 25 Nm
