Cylinder Head Assembly

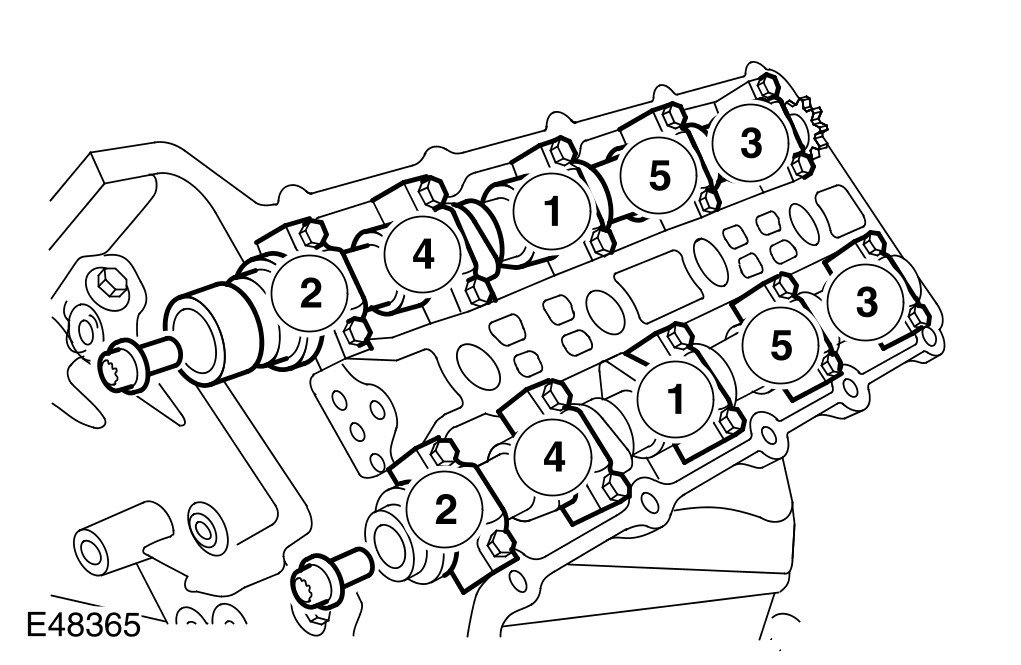

Cylinder Head Torque & Sequence / Bolt re-usability Service and RepairCamshafts LHInstall the camshaft bearing caps.
Tighten the bolts to
10 Nm.
Camshafts RHInstall the camshaft bearing caps.
Tighten to
10 Nm.
Intake Manifold SpecificationsExhaust Manifold SpecificationsCamshaft Gear\Sprocket Specifications
