Absolute Pressure Sensor
>>
Locations
>>
Sensor-Differential Pressure
Sensor-Differential Pressure

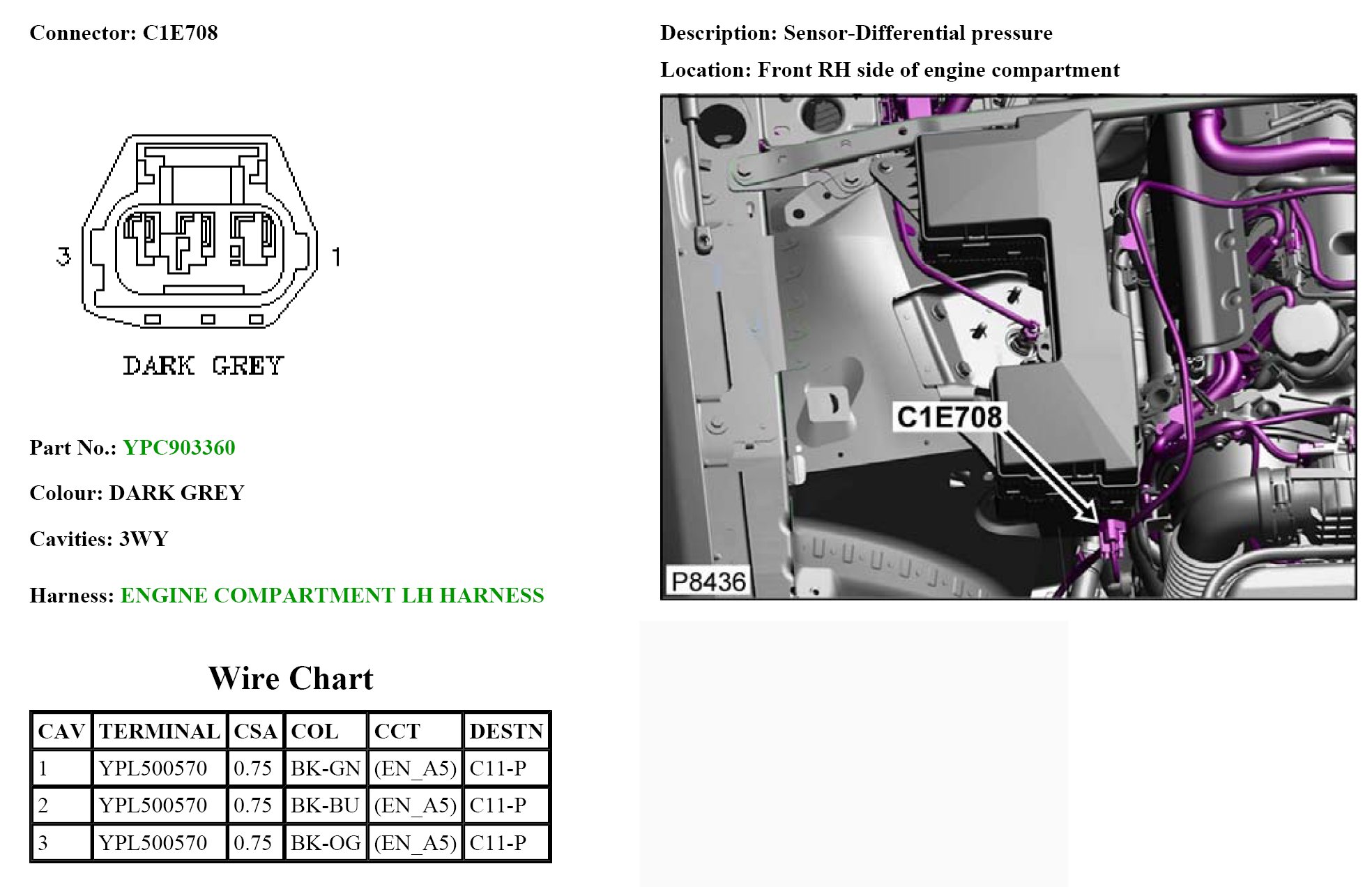

C1E708
C1E708:
