Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
System Specifications
Specifications
NOTE:

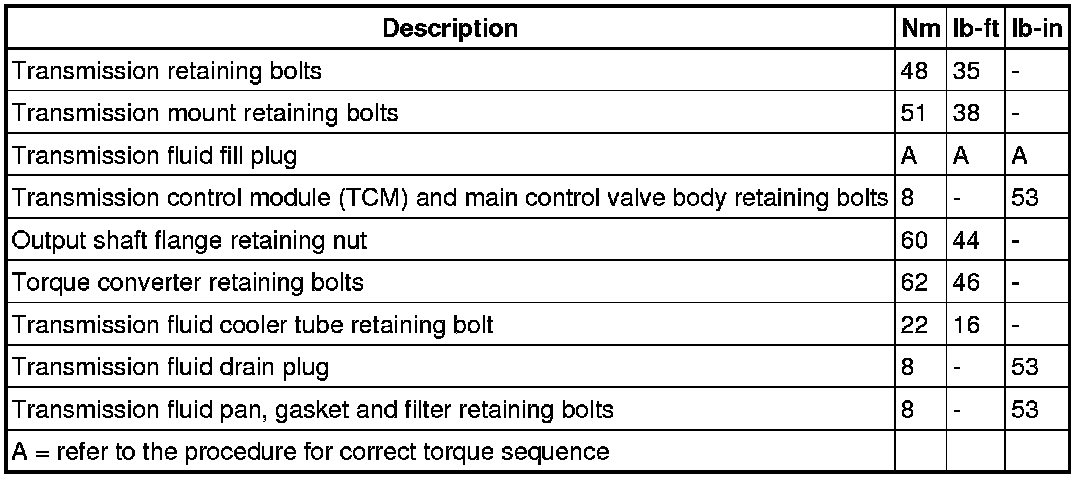

Torque Specifications
