Jaguar
>>
2010
>>
XJ (X351) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
C3PS21-C3PS151A
>>

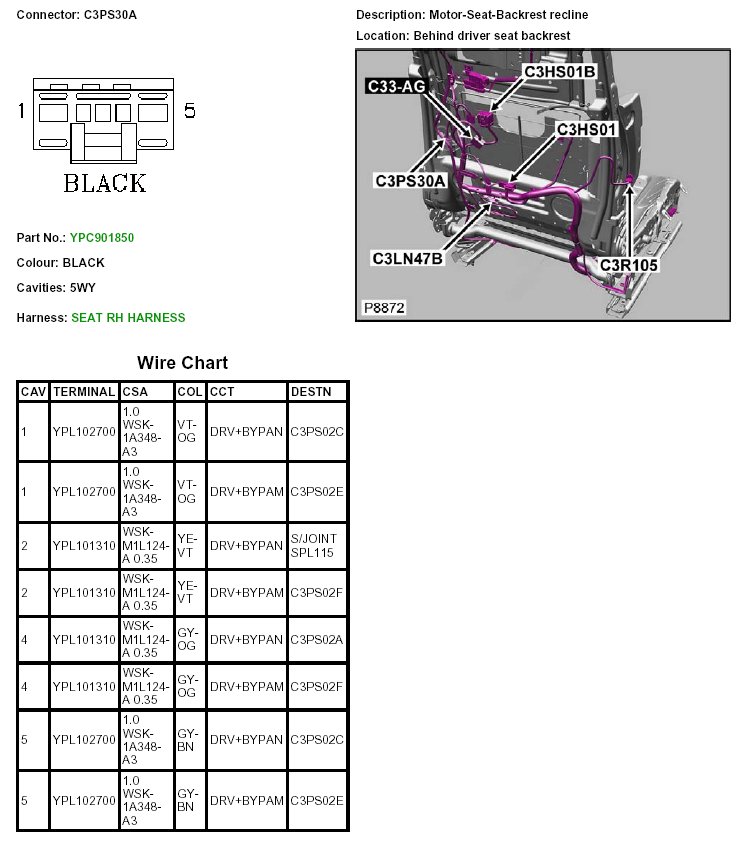

C3PS30A
C3PS30A
C3PS30A
C3PS30A:
C3PS30A:
C3PS30A:
C3PS30A:
