Fuel Tank and Lines

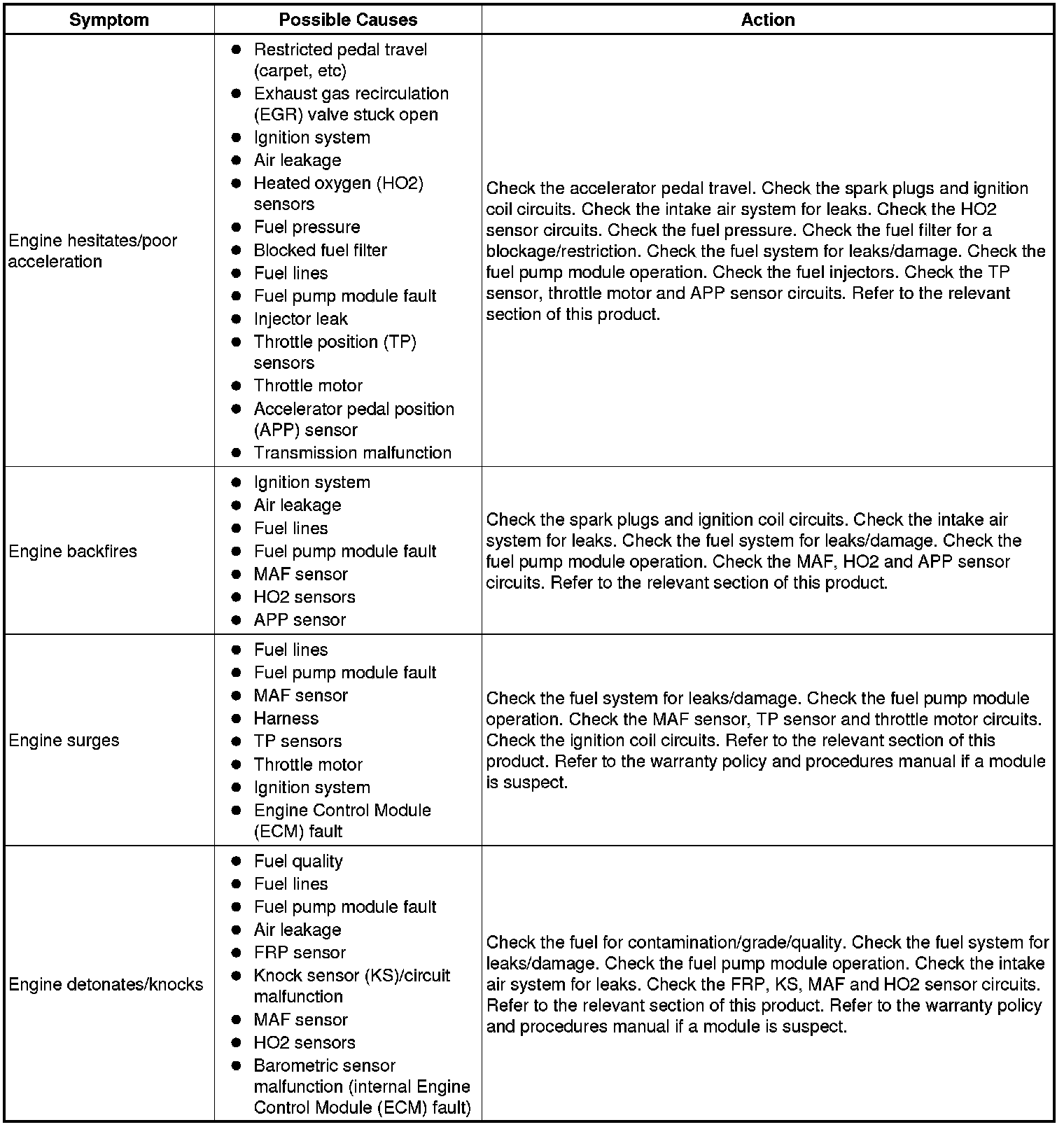

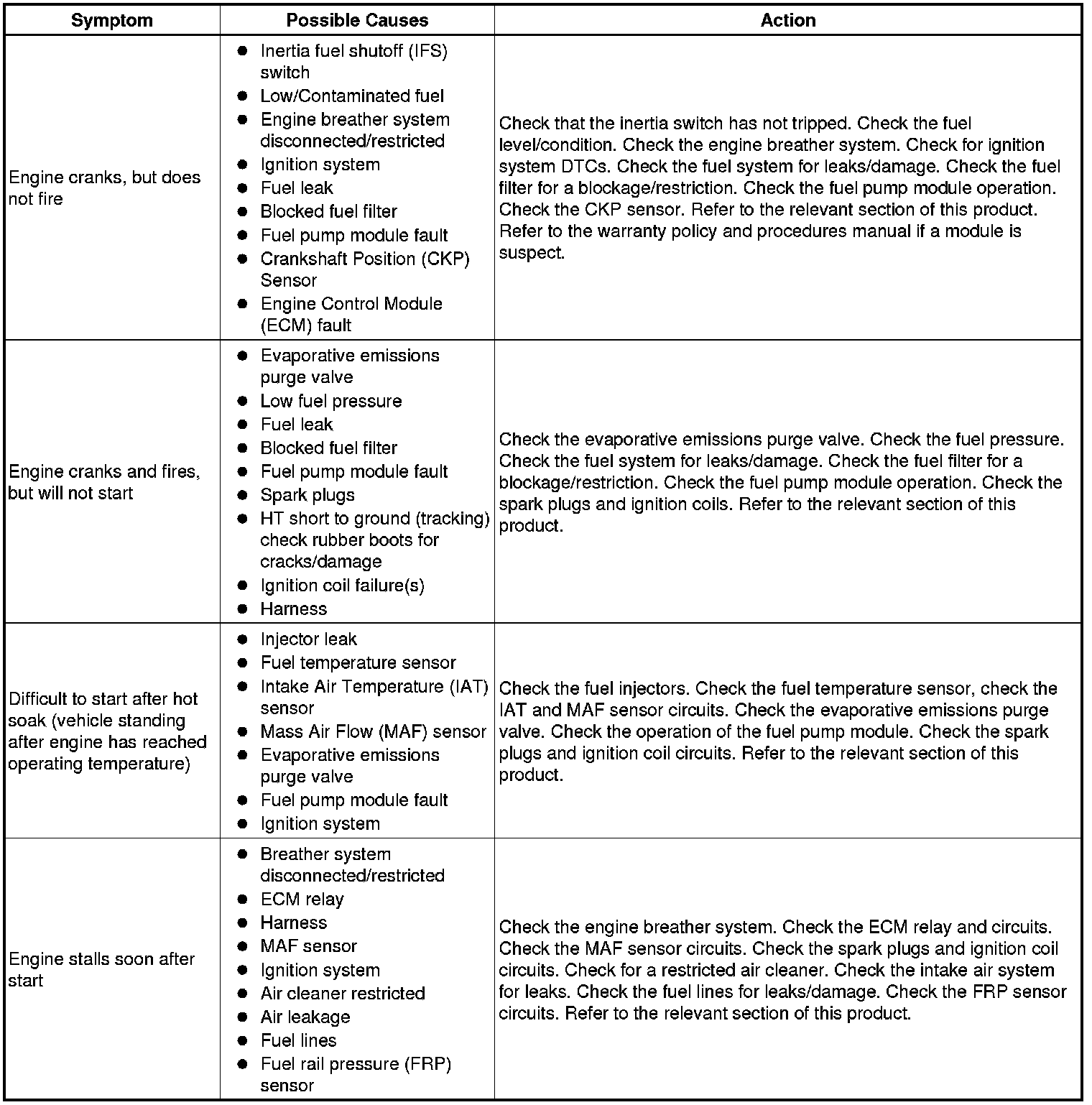

Symptom Chart










DTC Index
For a list of Diagnostic Trouble Codes (DTCs) that could be logged on this vehicle, please refer to A L L Diagnostic Trouble Codes ( DTC ) A L L Diagnostic Trouble Codes ( DTC ). For additional information, refer to Diagnostic Trouble Code (DTC) Index - DTC: Engine Control Module 5.0L (PCM) Testing and Inspection Engine Control Module (PCM)
