Ignition Coil: Service and Repair

Ignition Coil-On-Plug
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures
For additional information, refer to TAS Symbol Glossary TAS Symbols Glossary
Removal

NOTE:
Removal steps in this procedure may contain installation details.

NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.

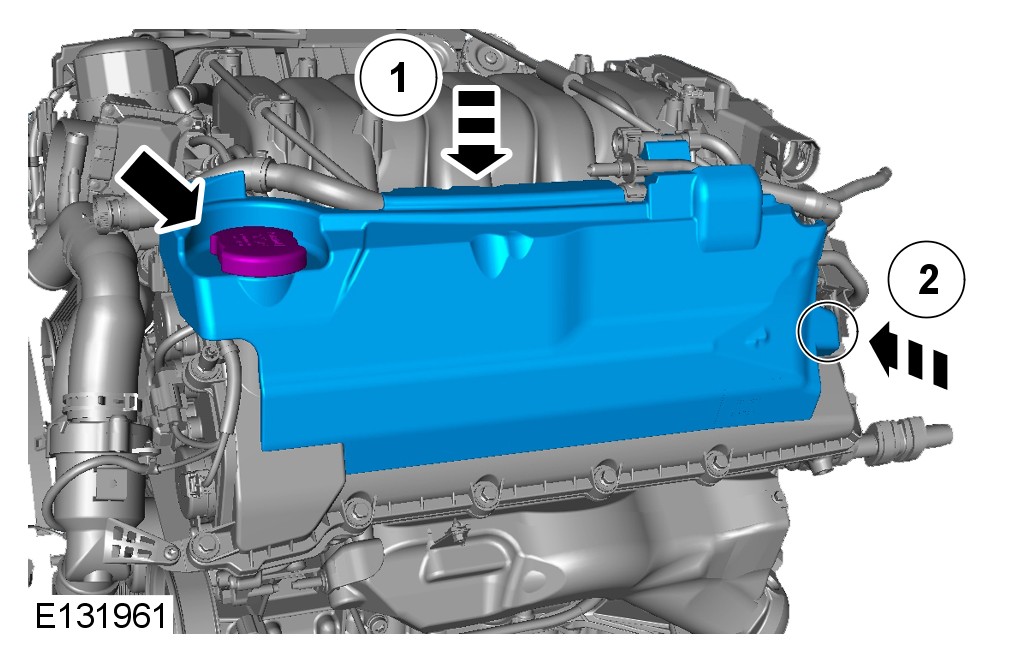

For additional information, refer to Engine Cover - 5.0L NA V8 - AJ133/5.0L SC V8 - AJ133 Service and Repair

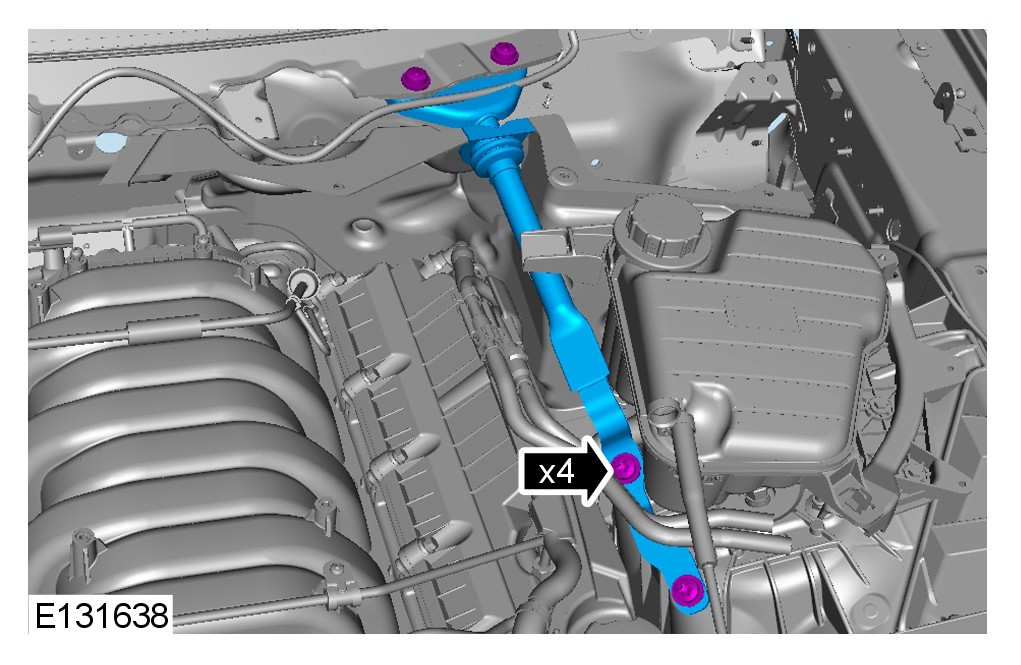

For additional information, refer to Secondary Bulkhead Panel RH Secondary Bulkhead Panel RH

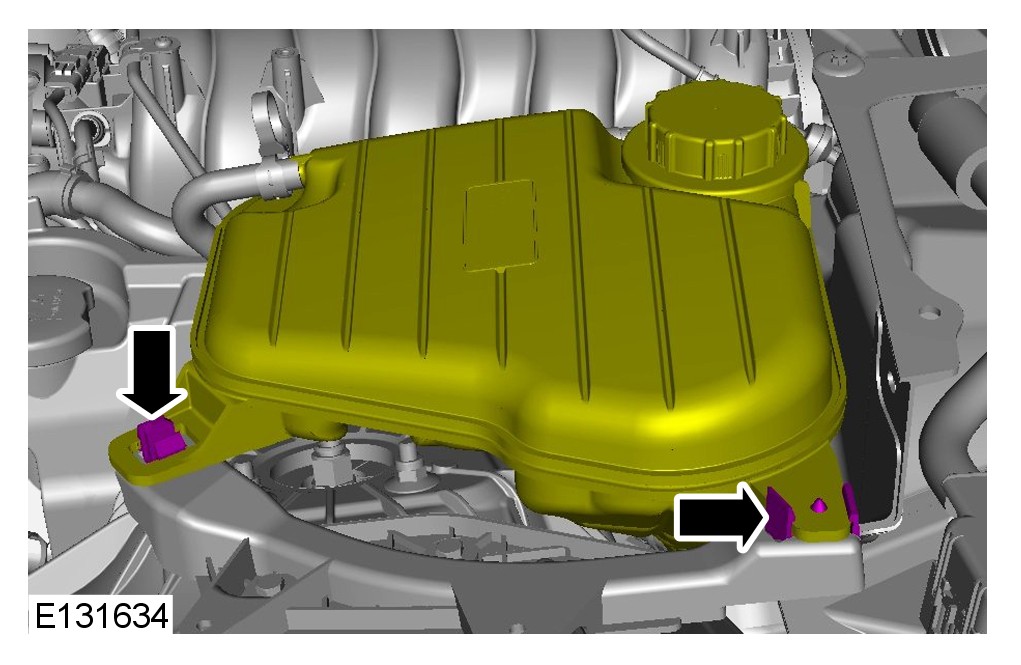

For additional information, refer to Cowl Vent Screen Service and Repair

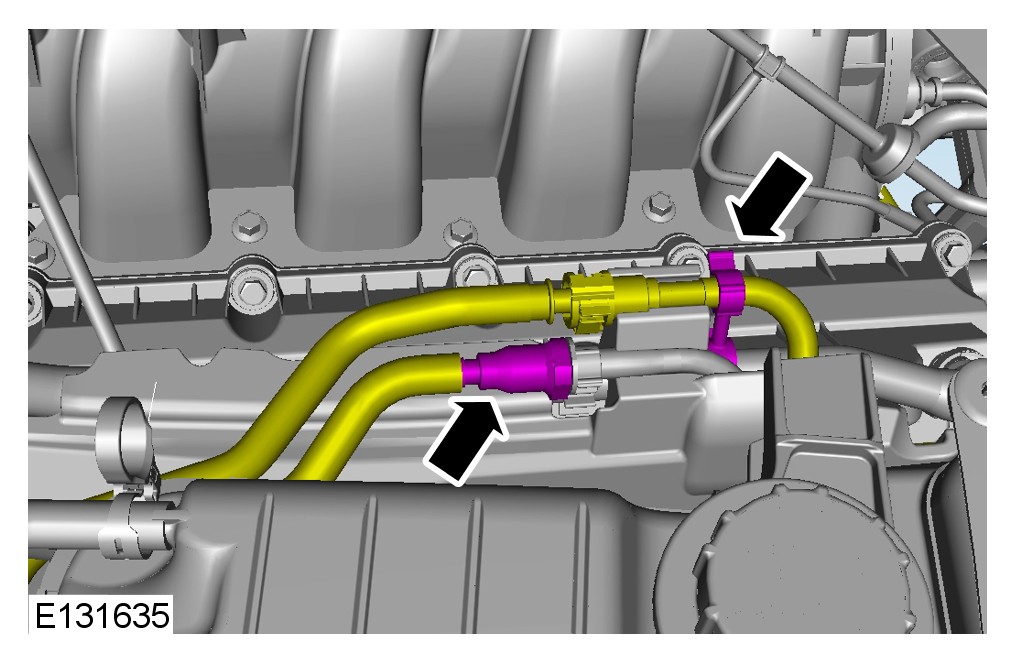

CAUTION: Ensure any open connections are plugged to prevent contamination.













Special Service Tool

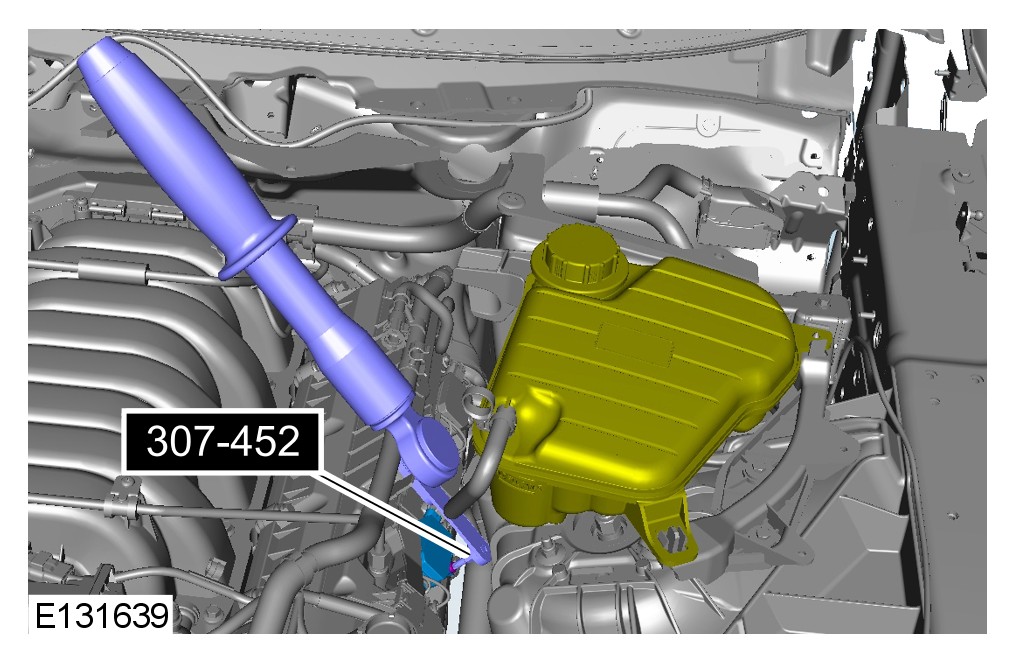

Wrench, Transmission Filler Plug, 307-452

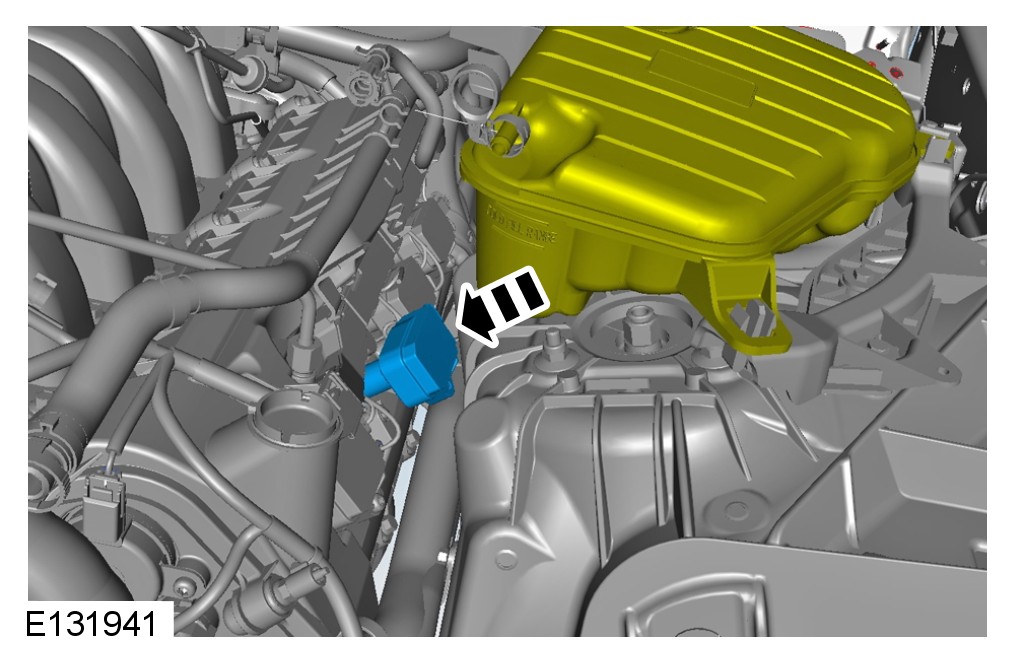

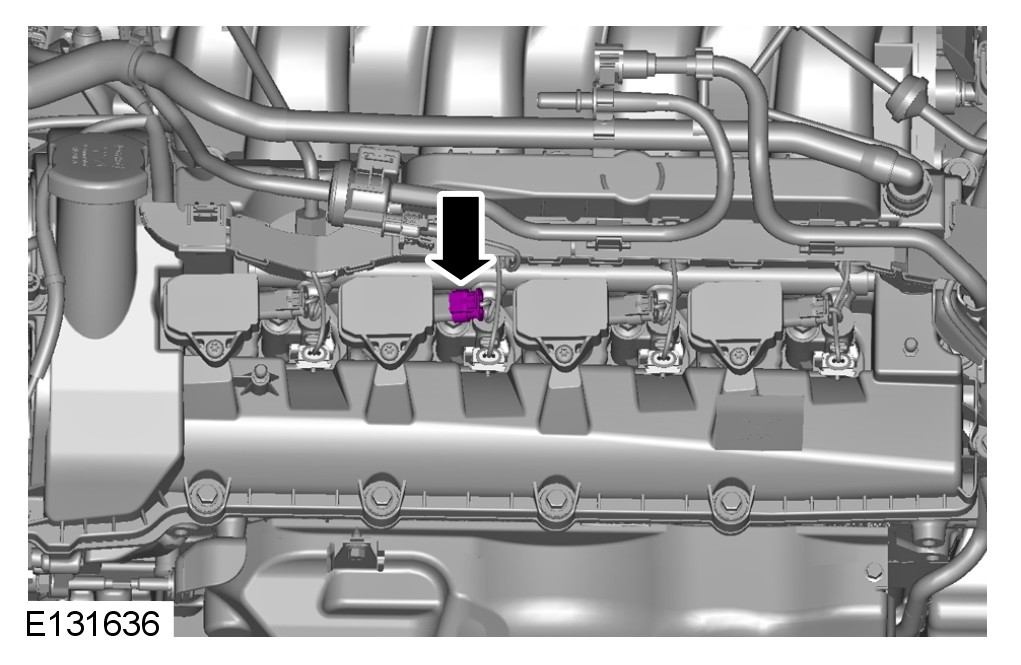

CAUTION: Carefully remove the ignition coil-on-plug(s).

Installation

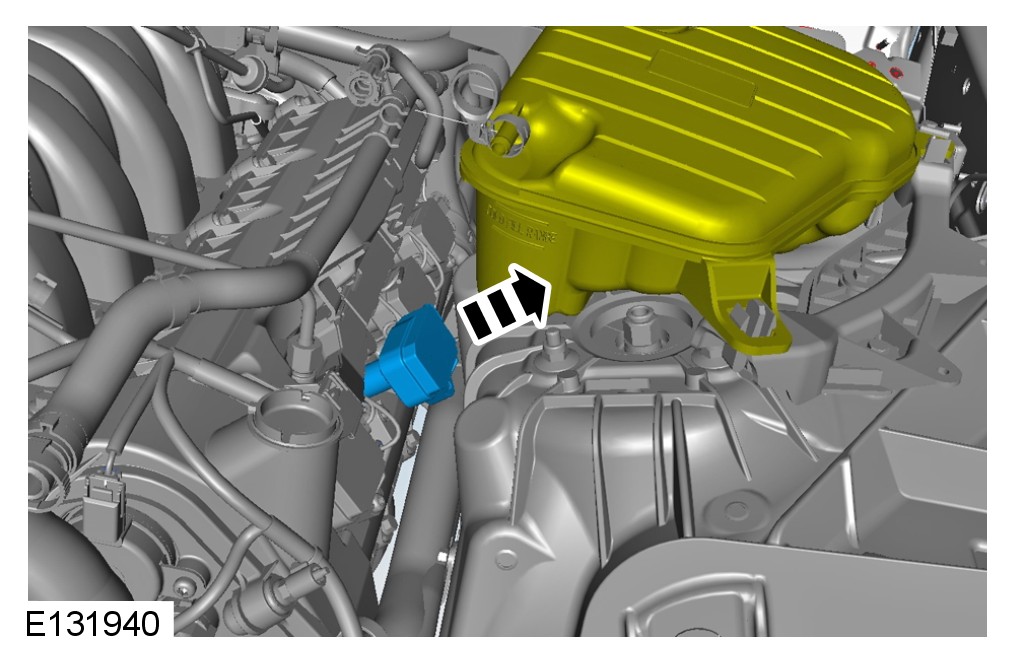

CAUTION: Carefully install the ignition coil-on-plug(s).





Torque to: 7 Nm













NOTE:
Remove and discard all blanking caps.









For additional information, refer to Cowl Vent Screen Service and Repair
For additional information, refer to Secondary Bulkhead Panel RH Secondary Bulkhead Panel RH
For additional information, refer to Engine Cover - 5.0L NA V8 - AJ133/5.0L SC V8 - AJ133 Service and Repair
