System Specifications

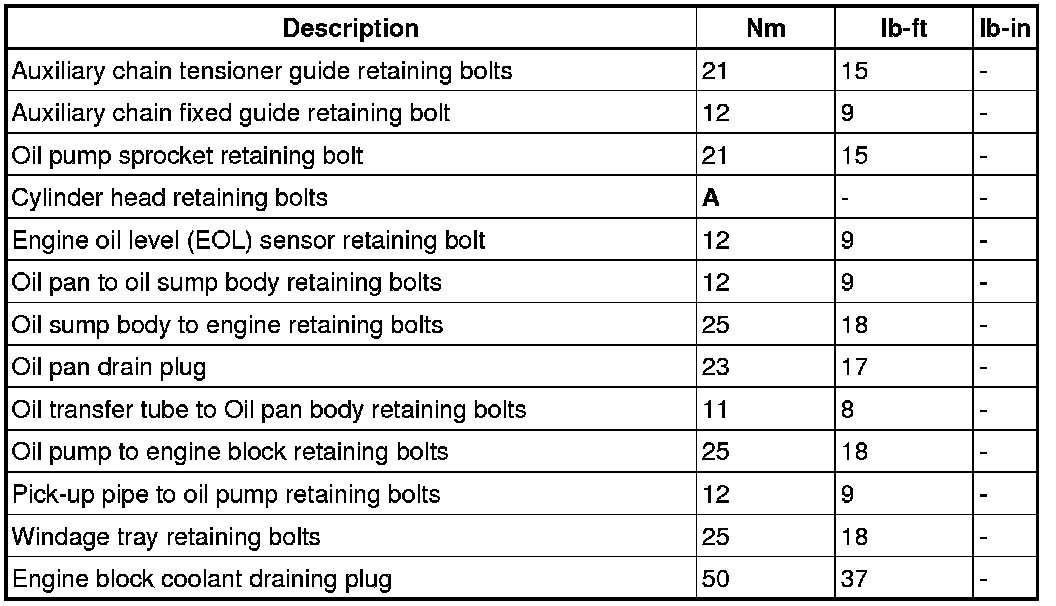

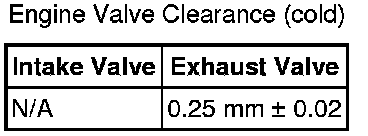

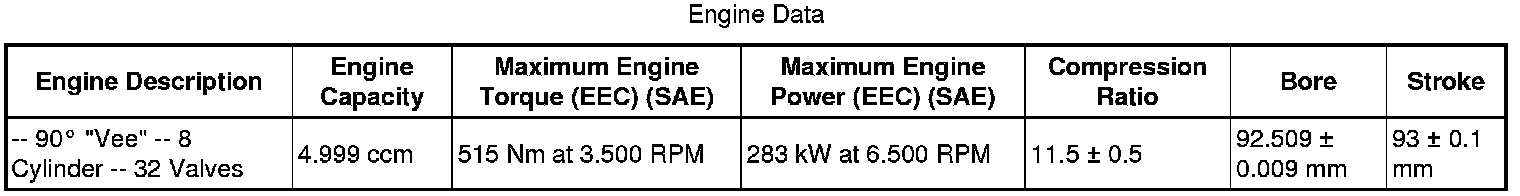

Specifications






















NOTE:
A = Refer to procedure for correct torque sequence.
