Keyless Entry Module: Service and Repair





Remote Keyless Entry (RKE) Module

Removal

NOTE:
This module is installed on the inside of the RH A-pillar above the footwell and does not change with the hand of drive.
1 Remove the cover and disconnect the battery ground cable. For additional information, refer to Specifications




2

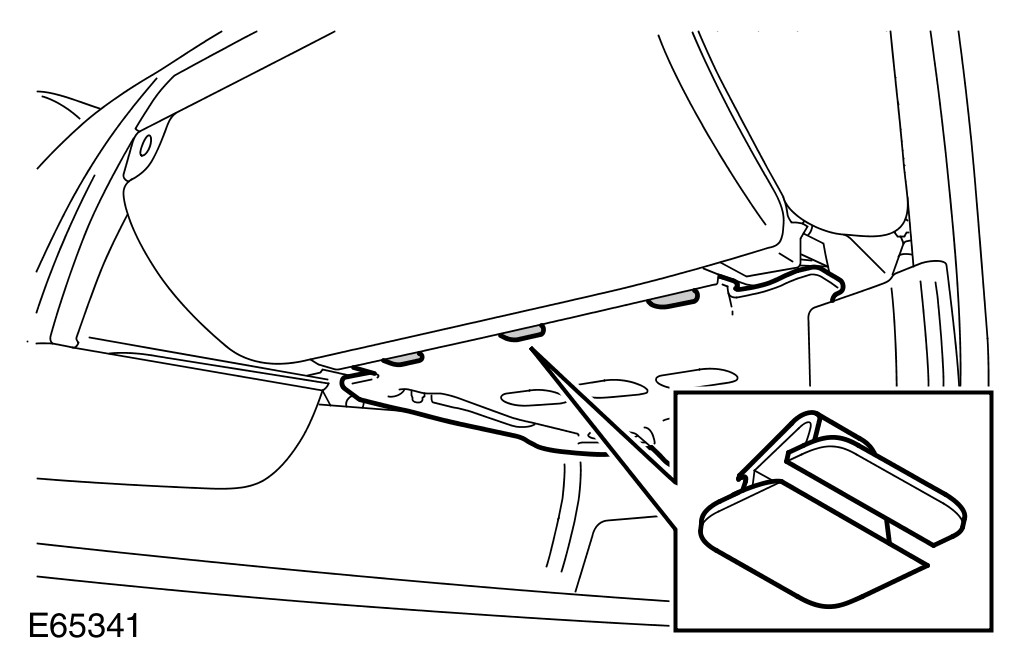

CAUTION: Removal of the clips is a delicate procedure, damage will occur if any force is used.
Remove the RH side footwell trim panel.
- Remove the 3 clips.

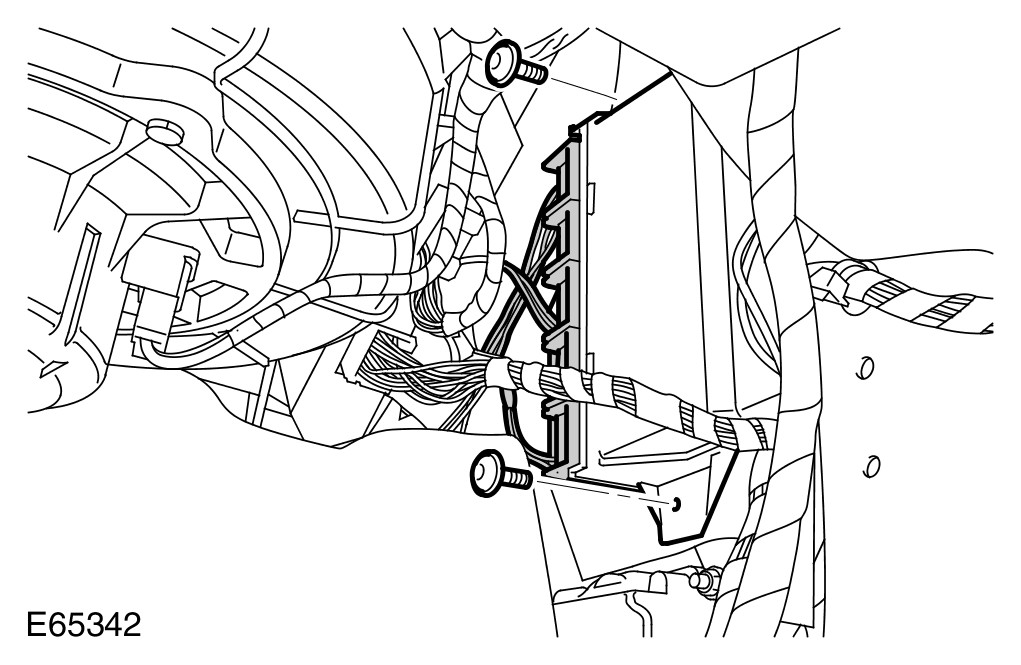

3 Remove the keyless entry module.
- Remove the 2 Torx screws.
- Disconnect the 5 electrical connectors.

Installation
1 Install the keyless entry module.
- Connect the electrical connectors.
- Install the screws.
2 Install the RH side footwell trim panel.
- Carefully secure the clips.
3 Connect the battery ground cable and install the cover. For additional information, refer to Specifications
4 Connect WDS to the vehicle and configure a new module.
