Connectors, grounds and splices are numbered using a five character format, for example: CA001, CA002, G03BL, FLS25. Pin numbers are designated using only significant digits, therefore CA001 pin 001 is represented as CA001/1.

Control Module Pins
B+ Battery voltage
C- CAN negative
C+ CAN positive
D Data
GND Ground
GREF Sensor / signal ground **
IP Input signal
LIN Local interconnect network
MOST_RX MOST receive
MOST_TX MOST transmit
NEG Negative
OP Output signal
P Power ground
POS Positive
PWR Power
SW Switch
VBATT Battery voltage
VREF Sensor / signal supply V *

* May also indicate Reference Voltage.
** May also indicate Reference Ground or Logic Ground.

Wiring Color Codes
N or BN Brown
B or BK Black
W or WH White
K or PK Pink
G or GN Green
R or RD Red
Y or YE Yellow
O or OG Orange
S or GY Slate
L Light
U or BU Blue
P or VT Purple
OPT Fiber Optic
SCR Screen Braid

Wire Lengths
Wire lengths are stated in millimeters and appear directly below the color code for each wire.

Twisted Wires

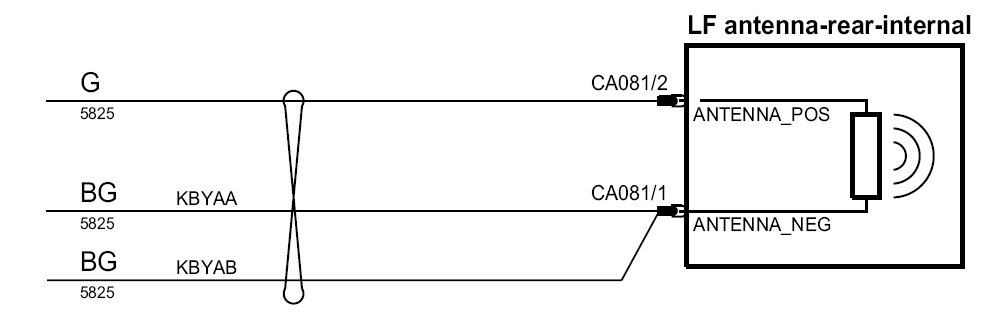

The figure-of-eight symbol indicates that wires are twisted together.

Resistor Values
The omega symbol often used to represent resistance is not used in this publication.
- Whole-number resistor values below 1000 ohms are suffixed with R , for example: 820R.
- Whole-number resistor values above 1000 ohms are suffixed with K , for example: 820K.
- Fractional resistors values have R or K inserted at the position of the decimal point, for example: 8R2 represents 8.2 ohms, 1K0 represents 1K ohms.
