Wheels and Tires: Service and Repair

Wheel and Tire

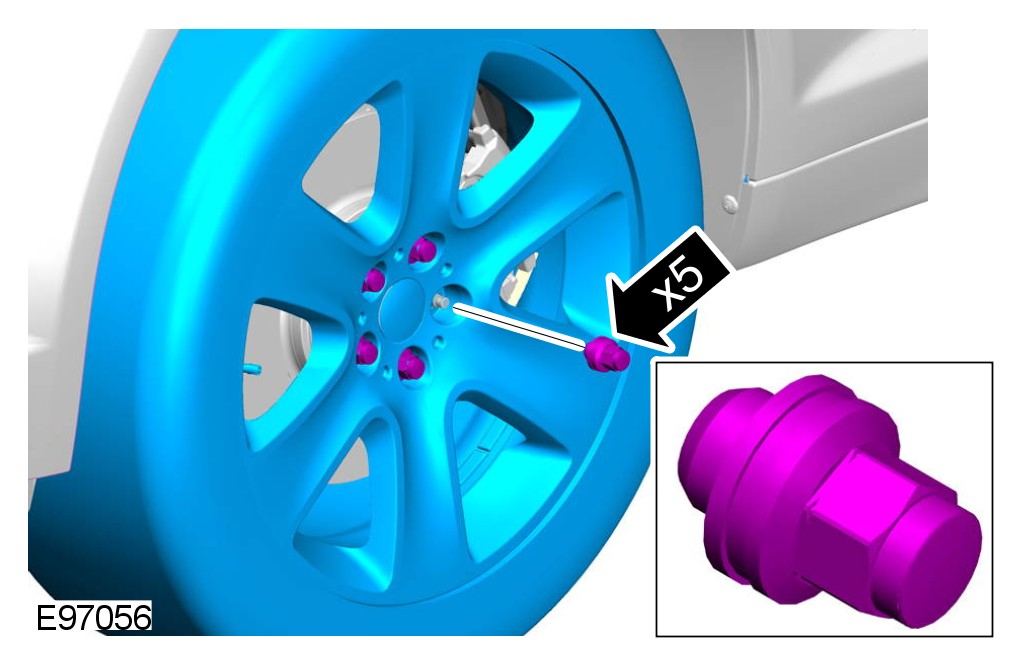

Removal
1
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.




2 TORQUE: 125 Nm

Installation
1
CAUTION: Apply a small amount of grease to the bore and spigot areas of the wheel before installation. Make sure the grease does not come into contact with the vehicles braking components and the wheel stud threads. Failure to follow these instructions may result in personal injury.
To install, reverse the removal procedure.
