Rear Junction Box



Rear Junction Box

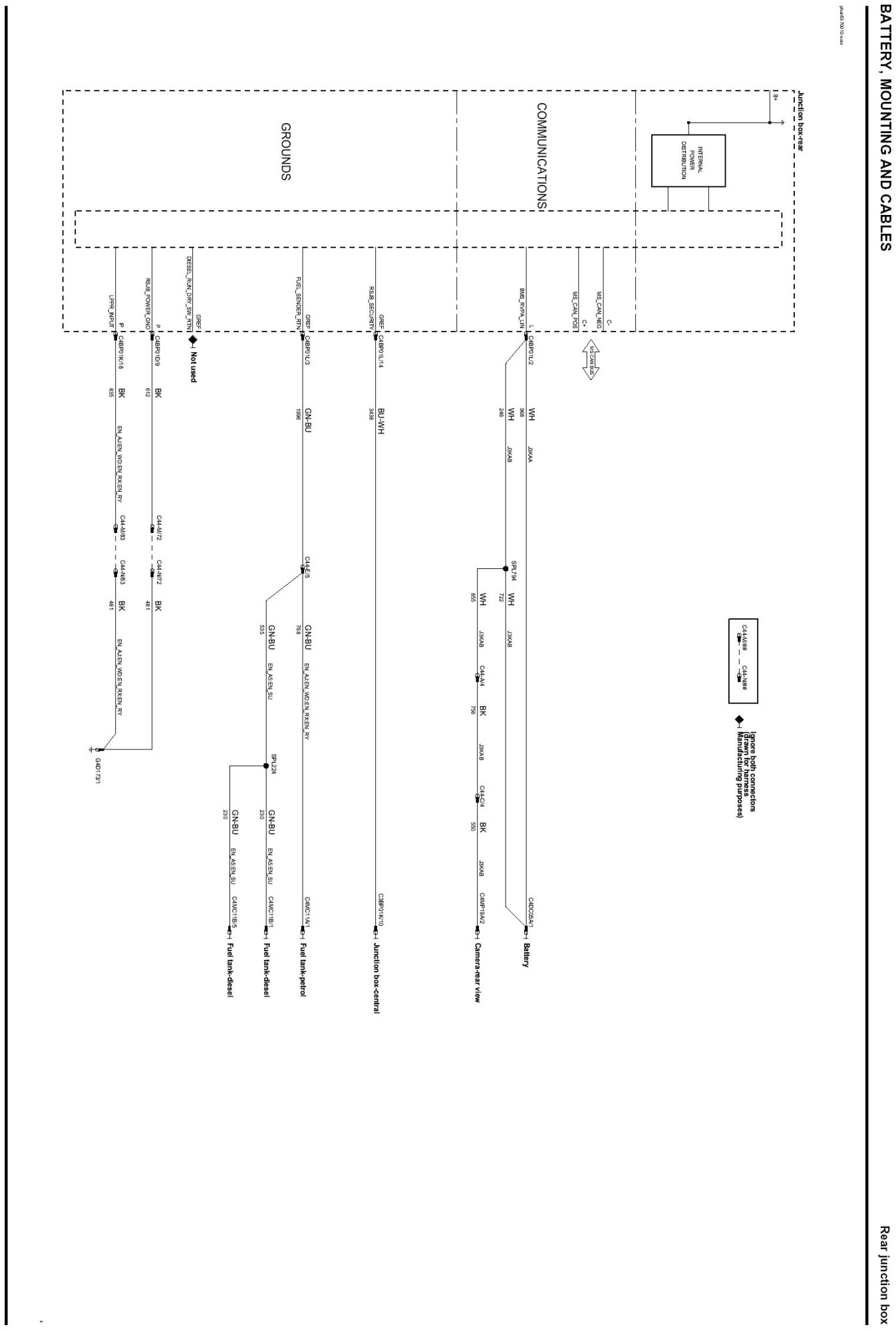

Rear Junction Box (Part 1):

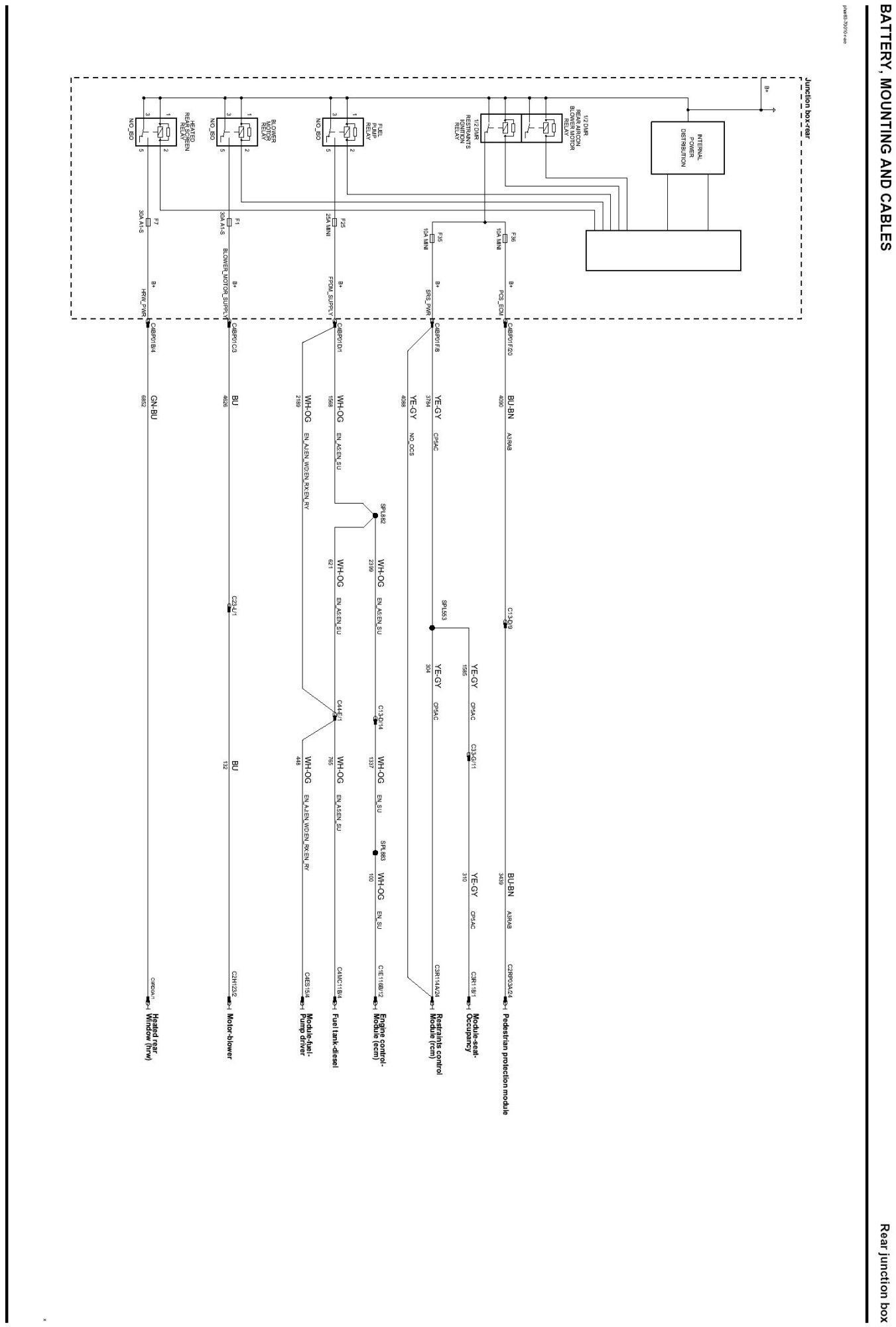

Rear Junction Box (Part 2):




Rear Junction Box (Part 3):




Rear Junction Box (Part 4):




Rear Junction Box (Part 4):




Rear Junction Box (Part 6):




Rear Junction Box (Part 7):
