Jaguar
>>
2011
>>
XF (X250) V8-5.0L SC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
C1CA01A - C1CS09C
>>

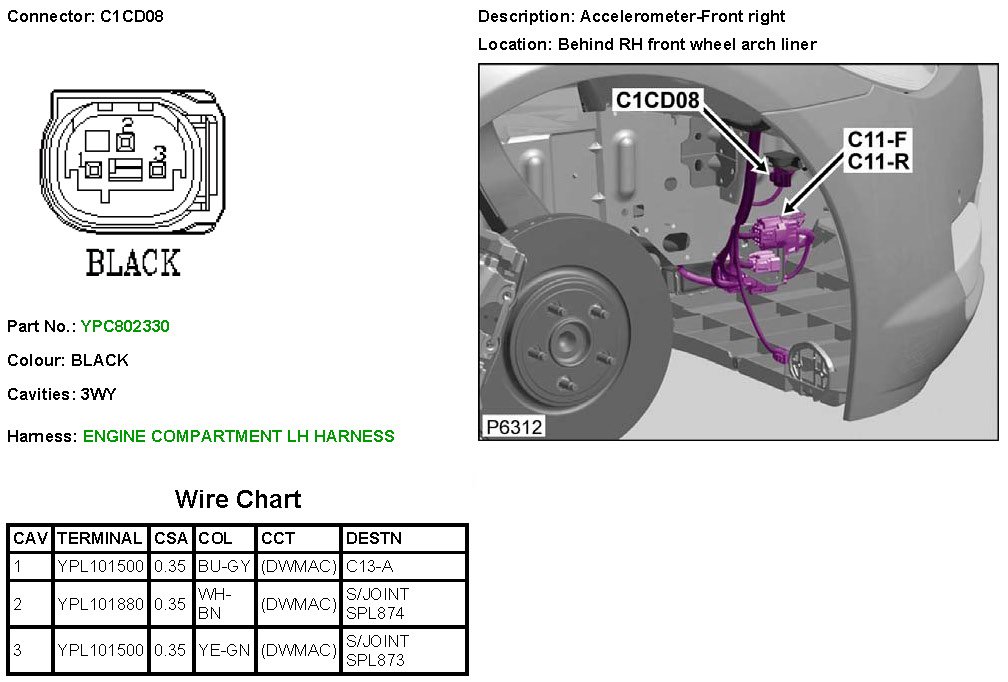

C1CD08
C1CD08
C1CD08
C1CD08:
