Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2011
>>
XJ (X351) V8-5.0L SC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
C3PK05-C3PS19A
>>

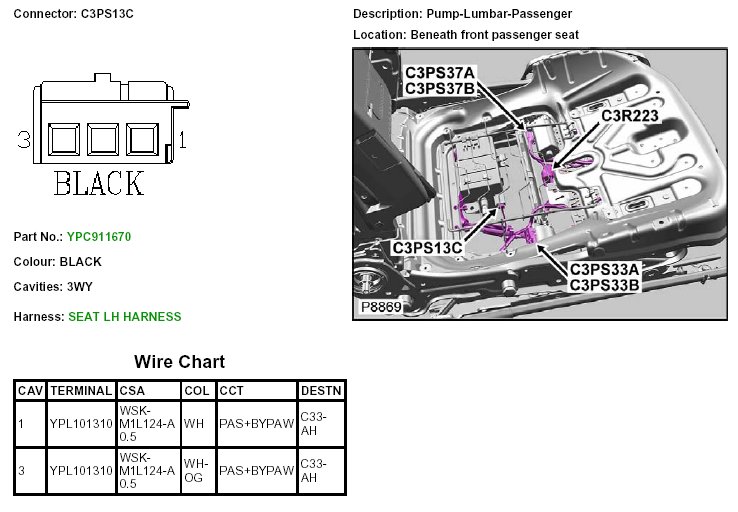

C3PS13C
C3PS13C
C3PS13C
C3PS13C:
CEPS13C:
